交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMM12-6-KB-P6AC-DC, 6 VDC, 2 A, SW, MULTI-BLA |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
SMM12-6-KB-P6RAC-DC, 6 VDC, 2 A, SW, MULTI-BLA |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
WR9QA3000EIAJ1NAIMR6AC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
GTM96180-1507-2.0 | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 75mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Household Appliances, ITE (Commercial), Medical | Multi-Blade | Level VI, CoC Tier 2 | 2.91" L x 1.71" W x 1.45" H (74.0mm x 43.5mm x 36.8mm) | 72" (1.83m) | -20°C ~ 40°C | Barrel Plug, 0.7mm I.D. x 2.35mm O.D. x 9.5mm | BIS, CB, CCC, CE, cETLus, EAC, ETL, LPS, NOM, PSE, RCM, S-Mark, UKRSepro, UL, VCCI | |
|
VEL12US090-EU-JAAC/DC WALL MOUNT ADAPTER 9V 12W |
0 | - |
|
数据表 |
VEL12 (12W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.28A | - | 12 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.99" L x 1.16" W x 2.27" H (76.0mm x 29.5mm x 57.6mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB | |
|
VEL12US050-UK-JAAC/DC WALL MOUNT ADAPTER 5V 11W |
0 | - |
|
数据表 |
VEL12 (12W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2.1A | - | 11 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 2.99" L x 1.95" W x 1.83" H (76.0mm x 49.5mm x 46.4mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB | |
|
|
VEL12US090-UK-JAAC/DC WALL MOUNT ADAPTER 9V 12W |
0 | - |
|
数据表 |
VEL12 (12W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.28A | - | 12 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 2.99" L x 1.95" W x 1.83" H (76.0mm x 49.5mm x 46.4mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB | |
|
VEL12US050-US-JAAC/DC WALL MOUNT ADAPTER 5V 11W |
0 | - |
|
数据表 |
VEL12 (12W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2.1A | - | 11 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 2.99" L x 1.16" W x 1.73" H (76.0mm x 29.5mm x 43.9mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB, TUV, UL | |
|
|
GEM06I09-P1JAC/DC WALL MOUNT ADAPTER 9V 5.9W |
0 | - |
|
数据表 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 9V | 660mA | - | 5.9 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level V | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | 47.2" (1.20m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cURus, EAC, FCC, TUV | |
|
|
GEM06I12-P1JAC/DC WALL MOUNT ADAPTER 12V 6W |
0 | - |
|
数据表 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 12V | 500mA | - | 6 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level V | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | 70.9" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cURus, EAC, FCC, TUV | |
|
|
GEM06I15-P1JAC/DC WALL MOUNT ADAPTER 15V 6W |
0 | - |
|
数据表 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 15V | 400mA | - | 6 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level V | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | 70.9" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cURus, EAC, FCC, TUV | |
|

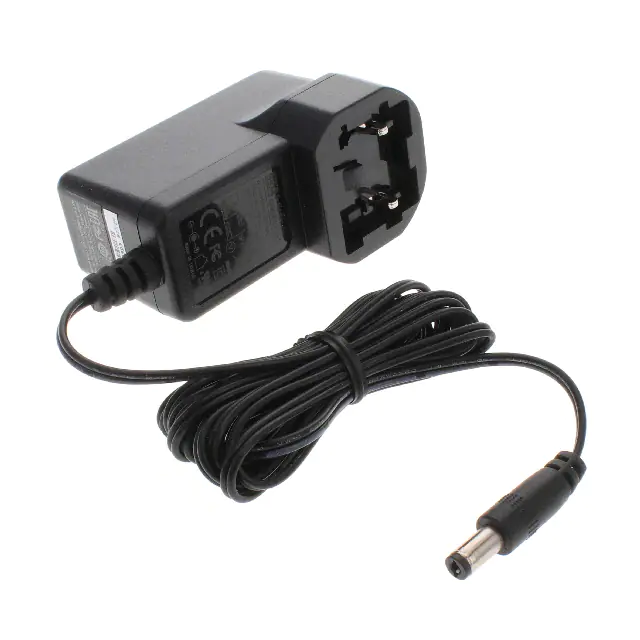

GEM06I24-P1JAC/DC WALL MOUNT ADAPTER 24V 6W |
0 | - |
|
数据表 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 24V | 250mA | - | 6 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level V | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | 70.9" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cURus, EAC, FCC, TUV | |
|
|
GEM06I18-P1JAC/DC WALL MNT ADAPTER 18V 5.9W |
0 | - |
|
数据表 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 18V | 330mA | - | 5.9 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level V | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | 70.9" (1.80m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cURus, EAC, FCC, TUV | |
|
|
GEM06I06-P1JAC/DC WALL MOUNT ADAPTER 6V 6W |
0 | - |
|
数据表 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 6V | 1A | - | 6 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level V | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | 47.2" (1.20m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cURus, EAC, FCC, TUV | |
|
|
GEM06I07-P1JAC/DC WALL MOUNT ADAPTER 7.5V 6W |
0 | - |
|
数据表 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | 80 ~ 264 VAC | 7.5V | 800mA | - | 6 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade (Sold Separately) | Level V | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | 47.2" (1.20m) | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | CE, cURus, EAC, FCC, TUV | |
|
PMA10R-050AWAC/DC WALL MOUNT ADAPTER 5V 10W |
0 | - |
|
数据表 |
PMA10R (10W) | Box | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | - | Multi-Blade (Sold Separately) | Positive Center | Medical | Multi-Blade | Level VI, CoC Tier 2 | 2.82" L x 1.97" W x 1.57" H (71.7mm x 50.0mm x 40.0mm) | 59" (1.50m) | 5°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | CE | |
|
SWI12-5.9-E-P5AC/DC WALL MNT ADAPTER 5.9V 12W |
0 | - |
|
数据表 |
SWI12-E (12W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 5.9V | 2A | - | 12 W | 75mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 2.83" L x 1.34" W x 2.38" H (72.0mm x 34.0mm x 60.5mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CB Scheme, EN, IEC | |
|
L6R36D-090-C8AC/DC DESKTOP ADAPTER 9V 36W |
0 | - |
|
数据表 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 9V | 4A | - | 36 W | 100mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C8 | Level VI | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL | |
|
|
L6R36D-180-C8AC/DC DESKTOP ADAPTER 18V 36W |
0 | - |
|
数据表 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 18V | 2A | - | 36 W | 100mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C8 | Level VI | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL | |
|
|
L6R36D-300-C8AC/DC DESKTOP ADAPTER 30V 36W |
0 | - |
|
数据表 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 30V | 1.2A | - | 36 W | 100mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C8 | Level VI | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL | |
|
|
L6R36D-360-C8AC/DC DESKTOP ADAPTER 36V 36W |
0 | - |
|
数据表 |
Tri-Mag®, L6R36D (36W) | Box | Active | International | Desktop (Class II) | 90 ~ 264 VAC | 36V | 1A | - | 36 W | 100mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C8 | Level VI | 3.82" L x 1.77" W x 1.38" H (97.0mm x 45.0mm x 35.0mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cUL, FCC, UL |
