交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACM12US15AC/DC WALL MOUNT ADAPTER 15V 12W XP Power |
31 | - |
|
数据表 |
ACM12 (12W) | Bulk | Active | International | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 800mA | - | 12 W | 75mW (Max) | Multi-Blade (Sold Separately) | - | ITE (Commercial), Medical | Multi-Blade (Sold Separately) | Level VI, CoC Tier 2 | 2.99" L x 1.19" W x 1.90" H (75.9mm x 30.2mm x 48.3mm) | 59" (1.50m) | -5°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | CB, CE, TUV, UL |
|
ALM85US19AC/DC DESKTOP ADAPTER 19V 85W XP Power |
25 | - |
|
数据表 |
ALM85 (85W) | Box | Active | North America | Desktop (Class I) | 80 ~ 264 VAC | 19V | 4.47A | - | 85 W | 150mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial), Medical | IEC 320-C14 | Level VI, CoC Tier 2 | 5.31" L x 2.44" W x 1.46" H (135.0mm x 62.0mm x 37.0mm) | 35.4" (0.9m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CE |
|
ALM65US19C2-8AC/DC DESKTOP ADAPTER 19V 65W XP Power |
8 | - |
|
数据表 |
ALM65 (65W) | Box | Active | International | Desktop (Class II) | 80 ~ 264 VAC | 19V | 3.4A | - | 65 W | 210mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial), Medical | IEC 320-C8 | Level VI | 4.94" L x 2.19" W x 1.32" H (125.5mm x 55.5mm x 33.5mm) | 35.4" (0.9m) | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | CB, CE |
|
VEL05US050-EU-BBAC/DC WALL MOUNT ADAPTER 5V 5W XP Power |
65 | - |
|
数据表 |
VEL05 (5W) | Bulk | Obsolete | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1A | - | 5 W | 100mW (Max) | Fixed Blade | - | ITE (Commercial) | CEE 7/16 | Level VI | 2.17" L x 0.95" W x 2.13" H (55.1mm x 24.1mm x 54.0mm) | - | 0°C ~ 60°C | USB A Receptacle | CB |
|

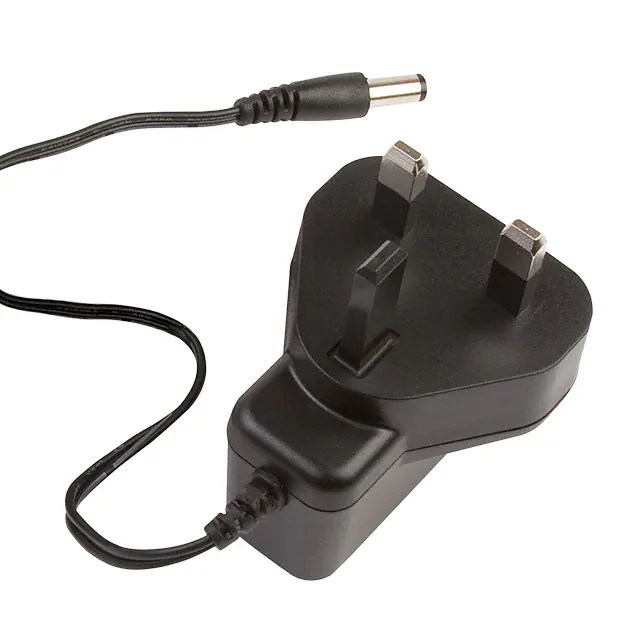

VEL05US120-UK-JAAC/DC WALL MOUNT ADAPTER 12V 5W XP Power |
37 | - |
|
数据表 |
VEL05 (5W) | Bulk | Obsolete | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 420mA | - | 5 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI | 2.17" L x 1.95" W x 1.69" H (55.1mm x 49.5mm x 42.9mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB |
|
VEL05US050-US-JAAC/DC WALL MOUNT ADAPTER 5V 5W XP Power |
27 | - |
|
数据表 |
VEL05 (5W) | Bulk | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1A | - | 5 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI | 2.17" L x 0.95" W x 1.40" H (55.1mm x 24.1mm x 35.5mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB, TUV |
|

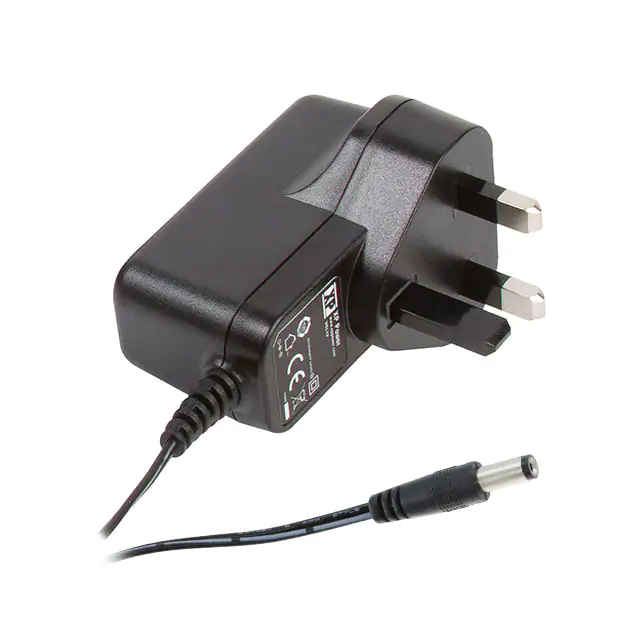

VEL12US120-UK-JAAC/DC WALL MOUNT ADAPTER 12V 12W XP Power |
87 | - |
|
数据表 |
VEL12 (12W) | Box | Active | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 1A | - | 12 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level VI, CoC Tier 2 | 2.99" L x 1.95" W x 1.83" H (76.0mm x 49.5mm x 46.4mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB |
|
VEL18US240-US-JAAC/DC WALL MOUNT ADAPTER 24V 18W XP Power |
85 | - |
|
数据表 |
VEL18 (18W) | Box | Active | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 750mA | - | 18 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level VI, CoC Tier 2 | 3.54" L x 1.34" W x 1.87" H (90.0mm x 34.0mm x 47.5mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB, TUV, UL |
|
VEL18US150-EU-JAAC/DC WALL MOUNT ADAPTER 15V 19W XP Power |
58 | - |
|
数据表 |
VEL18 (18W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 15V | 1.25A | - | 19 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 3.54" L x 1.34" W x 2.26" H (90.0mm x 34.0mm x 57.6mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB, TUV, UL |
|
|
VEL18US240-EU-JAAC/DC WALL MOUNT ADAPTER 24V 18W XP Power |
15 | - |
|
数据表 |
VEL18 (18W) | Box | Active | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 24V | 750mA | - | 18 W | 100mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level VI, CoC Tier 2 | 3.54" L x 1.34" W x 2.26" H (90.0mm x 34.0mm x 57.6mm) | 59" (1.50m) | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | CB, TUV, UL |
