交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSC12A-090AC/DC WALL MOUNT ADAPTER 9V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.11A | - | 10 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level V | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
PSC12C-050AC/DC WALL MOUNT ADAPTER 5V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | China | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | GB 1002 | Level V | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CCC | |
|
|
PSC12C-090AC/DC WALL MOUNT ADAPTER 9V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | China | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.11A | - | 10 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | GB 1002 | Level V | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CCC | |
|
PSC12E-050AC/DC WALL MOUNT ADAPTER 5V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level V | 2.82" L x 1.77" W x 1.20" H (71.7mm x 45.0mm x 30.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
PSC12E-090AC/DC WALL MOUNT ADAPTER 9V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | Europe | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.11A | - | 10 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | CEE 7/16 | Level V | 2.82" L x 1.77" W x 1.20" H (71.7mm x 45.0mm x 30.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
PSC12K-050AC/DC WALL MOUNT ADAPTER 5V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level V | 2.82" L x 1.99" W x 1.20" H (71.7mm x 50.5mm x 30.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
|
PSC12K-090AC/DC WALL MOUNT ADAPTER 9V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | United Kingdom | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.11A | - | 10 W | 300mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | BS 1363 | Level V | 2.82" L x 1.99" W x 1.20" H (71.7mm x 50.5mm x 30.5mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE | |
|
PSC12S-050AC/DC WALL MOUNT ADAPTER 5V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | Australia | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 2A | - | 10 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | AS 3112 | Level V | 2.82" L x 1.77" W x 1.93" H (71.7mm x 45.0mm x 49.1mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | C-Tick | |
|
|
PSC12S-090AC/DC WALL MOUNT ADAPTER 9V 10W |
0 | - |
|
数据表 |
PSC12 (10W) | Box | Obsolete | Australia | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 1.11A | - | 10 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | AS 3112 | Level V | 2.82" L x 1.77" W x 1.93" H (71.7mm x 45.0mm x 49.1mm) | 47.2" (1.20m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | C-Tick | |
|
PSC30U-050AC/DC DESKTOP ADAPTER 5V 20W |
0 | - |
|
数据表 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 5V | 4A | - | 20 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level IV | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | 59" (1.50m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | cULus | |
|
|
PSC30U-120AC/DC DESKTOP ADAPTER 12V 30W |
0 | - |
|
数据表 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 12V | 2.5A | - | 30 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level IV | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | 72.83" (1.85m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | cULus | |
|
|
PSC30U-240AC/DC DESKTOP ADAPTER 24V 30W |
0 | - |
|
数据表 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 24V | 1.25A | - | 30 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level IV | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | 72.83" (1.85m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | cULus | |
|
|
PSC30U-480AC/DC DESKTOP ADAPTER 48V 30W |
0 | - |
|
数据表 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | 90 ~ 264 VAC | 48V | 625mA | - | 30 W | 500mW (Max) | Cord (Sold Separately) | Positive Center | ITE (Commercial) | IEC 320-C14 | Level IV | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | 72.83" (1.85m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | cULus | |
|
PSM04A-050(STD)AC/DC WALL MOUNT ADAPTER 5V 3.8W |
0 | - |
|
数据表 |
PSM04A (4W) | Box | Obsolete | North America | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 750mA | - | 3.8 W | 500mW (Max) | Fixed Blade | Positive Center | ITE (Commercial) | NEMA 1-15P | Level IV | 2.73" L x 1.89" W x 0.98" H (69.4mm x 48.0mm x 25.0mm) | 70.9" (1.80m) | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|

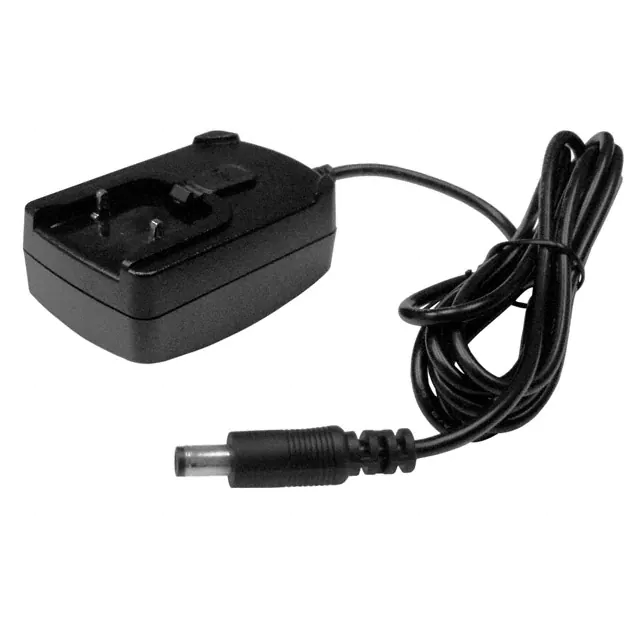

PSA05R-033AC/DC WALL MOUNT ADAPTER 3.3V 4W |
0 | - |
|
数据表 |
PSA05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 3.3V | 1.2A | - | 4 W | 500mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade | Level IV | 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
|
PSA05R-050AC/DC WALL MOUNT ADAPTER 5V 5W |
0 | - |
|
数据表 |
PSA05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 1A | - | 5 W | 500mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade | Level IV | 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
|
PSA05R-090AC/DC WALL MOUNT ADAPTER 9V 5W |
0 | - |
|
数据表 |
PSA05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 9V | 560mA | - | 5 W | 300mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade | Level IV | 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | CE, cULus | |
|
|
PSA05R-120AC/DC WALL MOUNT ADAPTER 12V 5W |
0 | - |
|
数据表 |
PSA05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 12V | 420mA | - | 5 W | 500mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade | Level IV | 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm) | 70.9" (1.80m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | cULus | |
|
PSA15R-050PAC/DC WALL MOUNT ADAPTER 5V 15W |
0 | - |
|
数据表 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 5V | 3A | - | 15 W | 500mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade | Level IV | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | 72.83" (1.85m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | cULus | |
|
|
PSA15R-060PAC/DC WALL MOUNT ADAPTER 6V 15W |
0 | - |
|
数据表 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | 90 ~ 264 VAC | 6V | 2.5A | - | 15 W | 500mW (Max) | Multi-Blade (Sold Separately) | Positive Center | ITE (Commercial) | Multi-Blade | Level IV | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | 72.83" (1.85m) | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | cULus |
