交流直流桌面、墙式电源适配器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 特性 | 功率（瓦特） | 空载功耗 | 输入类型 | 极化 | 应用 | 输入连接器 | 效率 | 尺寸 / 尺寸 | 电线长度 | 工作温度 | 输出连接器 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSM120A12-R7BAC/DC DESKTOP ADAPTER 12V 102W MEAN WELL USA Inc. |
570 | - |
|
数据表 |
GSM120A (120W) | Box | Active | International | Desktop (Class I) | 80 ~ 264 VAC | 12V | 8.5A | - | 102 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Power DIN, 4 Pin | CB, CE, cURus, TUV |
|
OWA-120E-24AC/DC DESKTOP ADAPTER 24V 120W MEAN WELL USA Inc. |
50 | - |
|
数据表 |
OWA-120E (120W) | Box | Active | Europe | Desktop (Class II) | 180 ~ 264 VAC | 24V | 5A | - | 120 W | 150mW (Max) | Cord | - | ITE (Commercial) | CEE 7/7 | Level VI | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | 11.8" (300.00mm) | -40°C ~ 70°C | Power DIN, 4 Pin | CB, CE, GS |
|
GSM160A24-R7BAC/DC DESKTOP ADAPTER 24V 160W MEAN WELL USA Inc. |
180 | - |
|
数据表 |
GSM160A (160W) | Box | Active | International | Desktop (Class I) | 80 ~ 264 VAC | 24V | 6.67A | - | 160 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C14 | Level VI | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | 47.2" (1.20m) | -30°C ~ 70°C | Power DIN, 4 Pin | CB, CE, cURus, TUV |
|
GST220A24-R7BAC/DC DESKTOP ADAPTER 24V 221W MEAN WELL USA Inc. |
774 | - |
|
数据表 |
GST220A (220W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 24V | 9.2A | - | 221 W | 150mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 8.27" L x 3.35" W x 1.81" H (210.0mm x 85.0mm x 46.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Power DIN, 4 Pin | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST220A48-R7BAC/DC DESKTOP ADAPTER 48V 221W MEAN WELL USA Inc. |
531 | - |
|
数据表 |
GST220A (220W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 48V | 4.6A | - | 221 W | 150mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 8.27" L x 3.35" W x 1.81" H (210.0mm x 85.0mm x 46.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Power DIN, 4 Pin | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|

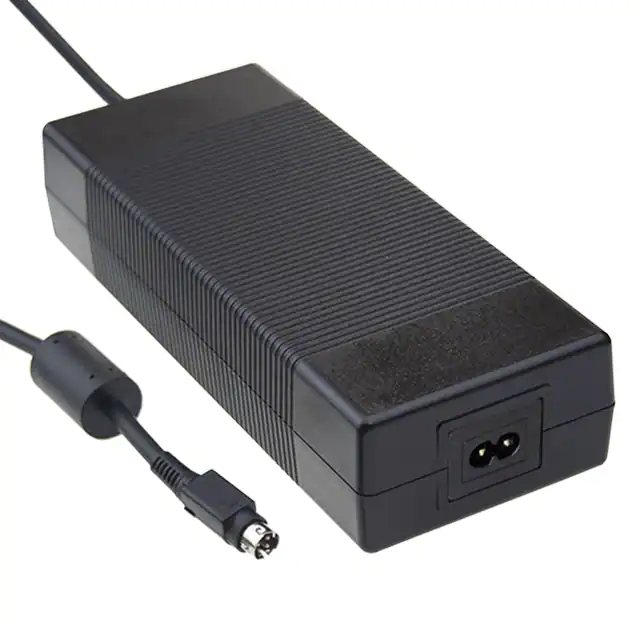

GSM220B24-R7BAC/DC DESKTOP ADAPTER 24V 221W MEAN WELL USA Inc. |
68 | - |
|
数据表 |
GSM220B (220W) | Box | Active | International | Desktop (Class II) | 80 ~ 264 VAC | 24V | 9.2A | - | 221 W | 150mW (Max) | Cord (Sold Separately) | - | Medical | IEC 320-C8 | Level VI | 8.27" L x 3.35" W x 1.81" H (210.0mm x 85.0mm x 46.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Power DIN, 4 Pin | CB, CE, cRUus, TUV |
|

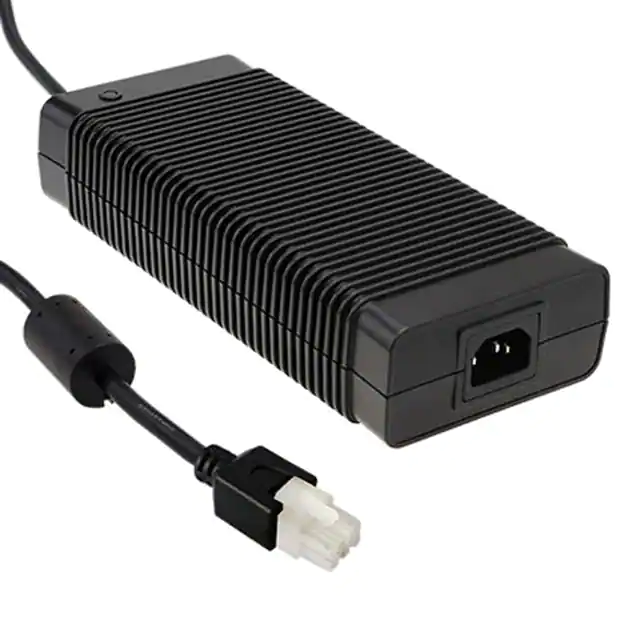

GST280A48-C6PAC/DC DESKTOP ADAPTER 48V 280W MEAN WELL USA Inc. |
1,040 | - |
|
数据表 |
GST280A (280W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 48V | 5.84A | - | 280 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 8.66" L x 3.74" W x 1.81" H (220.0mm x 95.0mm x 46.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Rectangular, 6 Position | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST280A12-C6PAC/DC DESKTOP ADAPTER 12V 252W MEAN WELL USA Inc. |
317 | - |
|
数据表 |
GST280A (280W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 12V | 21A | - | 252 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 8.66" L x 3.74" W x 1.81" H (220.0mm x 95.0mm x 46.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Rectangular, 6 Position | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST280A15-C6PAC/DC DESKTOP ADAPTER 15V 255W MEAN WELL USA Inc. |
173 | - |
|
数据表 |
GST280A (280W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 15V | 17A | - | 255 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 8.66" L x 3.74" W x 1.81" H (220.0mm x 95.0mm x 46.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Rectangular, 6 Position | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
|
GST280A24-C6PAC/DC DESKTOP ADAPTER 24V 280W MEAN WELL USA Inc. |
128 | - |
|
数据表 |
GST280A (280W) | Box | Active | International | Desktop (Class I) | 85 ~ 264 VAC | 24V | 11.67A | - | 280 W | 500mW (Max) | Cord (Sold Separately) | - | ITE (Commercial) | IEC 320-C14 | Level VI | 8.66" L x 3.74" W x 1.81" H (220.0mm x 95.0mm x 46.0mm) | 39.4" (1.00m) | -30°C ~ 70°C | Rectangular, 6 Position | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
