交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LFM300M480CAC-DC SWITCHING POWER MODULE,90- |
0 | - |
|
数据表 |
LFM300M (300W) | Tray | Active | Enclosed | 1 | 48V | - | - | 160W (300W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.25 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.09" L x 2.28" W x 1.00" H (103.9mm x 57.9mm x 25.4mm) | ||
|
LFM300M280CAC-DC SWITCHING POWER MODULE,90- |
0 | - |
|
数据表 |
LFM300M (300W) | Tray | Active | Enclosed | 1 | 28V | - | - | 160W (300W Forced Air) | - | - | 85 ~ 264 VAC | - | 10.7 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.09" L x 2.28" W x 1.00" H (103.9mm x 57.9mm x 25.4mm) | ||
|

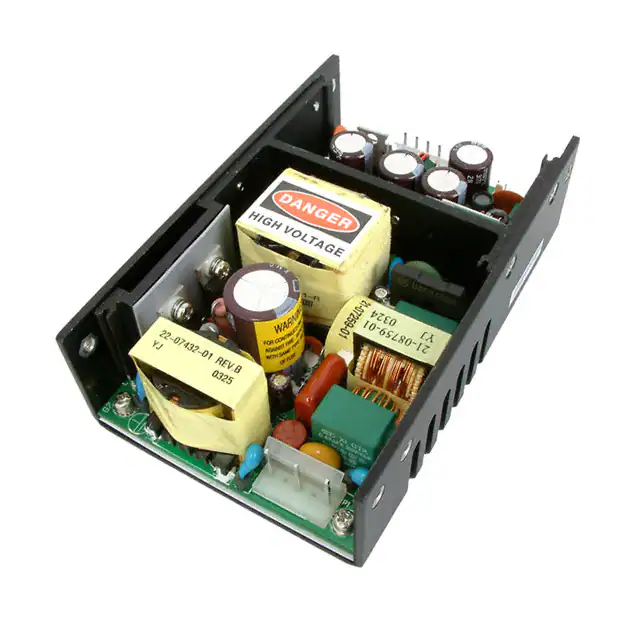

VSUU-120-12AC/DC CONVERTER 12V 120W |
0 | - |
|
数据表 |
VSUU-120 (120W) | Bulk | Not For New Designs | Open Frame | 1 | 12V | - | - | 120W | - | - | 90 ~ 260 VAC, 130 ~ 370 VDC | - | 10.9 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 81.4mm x 39.1mm) | ||
|
MBC275-1012LAC/DC CONVERTER 12V 160/275W |
0 | - |
|
数据表 |
MBC275 (275W) | Bulk | Obsolete | Open Frame | 1 | 12V | - | - | 160W (275W Forced Air) | - | - | 85 ~ 264 VAC | - | 13.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.0mm) | ||
|
HD240E-124AC/DC CONVERTER 24V 240W |
10 | - |
|
数据表 |
HD240 (240W) | Box | Active | Enclosed | 1 | 24V | - | - | 240W | - | - | 90 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | - | -30°C ~ 80°C (With Derating) | - | Chassis Mount | 4.10" L x 2.46" W x 1.54" H (104.1mm x 62.5mm x 39.1mm) | ||
|
VMS-550C-36-CNFAC/DC CONVERTER 36V 551W |
8 | - |
|
数据表 |
VMS-550C-CNF (550W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 551W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 15.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
VMS-550C-12-CNFAC/DC CONVERTER 12V 499W |
2 | - |
|
数据表 |
VMS-550C-CNF (550W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 499W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 41.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
MAF300US48B-MU2F4ISOLATED / 300W / VOUT: 48 |
9 | - |
|
数据表 |
MAF300 (300W) | Box | Active | Open Frame | 1 | 48V | - | - | 180W (300W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 6.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) | ||
|
MAF300US24B-MU2F4ISOLATED / 300W / VOUT: 24 |
8 | - |
|
数据表 |
MAF300 (300W) | Box | Active | Open Frame | 1 | 24V | - | - | 180W (300W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) | ||
|
MAF300US12B-MU2F4ISOLATED / 300W / VOUT: 12 |
3 | - |
|
数据表 |
MAF300 (300W) | Box | Active | Open Frame | 1 | 12V | - | - | 180W (300W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) | ||
|
1010972NXT-100-1006 |
15 | - |
|
数据表 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W | - | - | 100 ~ 240 VAC | - | 4.2 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
1010974NXT-100-1008 |
12 | - |
|
数据表 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 48V | - | - | 100W | - | - | 100 ~ 240 VAC | - | 2.1 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
1010973NXT-100-1007 |
7 | - |
|
数据表 |
NXT-100 (100W) | Box | Active | Open Frame | 1 | 28V | - | - | 100W | - | - | 100 ~ 240 VAC | - | 3.6 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.00" H (114.3mm x 63.5mm x 25.4mm) | ||
|
VMS-550C-15-CNFAC/DC CONVERTER 15V 500W |
10 | - |
|
数据表 |
VMS-550C-CNF (550W) | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 500W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 33.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
1010210SRW-45-3004 |
15 | - |
|
数据表 |
SRW-45 (45W) | Box | Not For New Designs | Open Frame | 3 | 5V | 9V | - | 45W | 12V | - | 100 ~ 240 VAC | - | 5 A | - | 3 A | Industrial, ITE (Commercial) | - | 700 mA | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
1010107SRW-45-3002 |
10 | - |
|
数据表 |
SRW-45 (45W) | Box | Not For New Designs | Open Frame | 3 | 5V | 15V | - | 45W | -15V | - | 100 ~ 240 VAC | - | 5 A | - | 2 A | Industrial, ITE (Commercial) | - | 700 mA | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
1010106SRW-45-3001 |
4 | - |
|
数据表 |
SRW-45 (45W) | Box | Not For New Designs | Open Frame | 3 | 5V | 12V | - | 45W | -12V | - | 100 ~ 240 VAC | - | 5 A | - | 3 A | Industrial, ITE (Commercial) | - | 700 mA | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
|
DG200-7ECAC/DC CONVERTER 12V 200W |
3 | - |
|
数据表 |
Tri-Mag, DG200 (200W) | Box | Active | Enclosed | 1 | 12V | - | - | 200W (300W Forced Air) | - | - | 90 ~ 264 VAC | - | 16.5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 65°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) | ||
|
|
DG200M-7ECAC/DC CONVERTER 12V 200W |
4 | - |
|
数据表 |
Tri-Mag, DG200 (200W) | Box | Active | Enclosed | 1 | 12V | - | - | 200W (300W Forced Air) | - | - | 90 ~ 264 VAC | - | 16.5 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 65°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) | ||
|
TPI 300-153L-MAC/DC CONVERTER 53V 180W |
10 | - |
|
数据表 |
TPI 300L-M (300W) | Box | Active | Open Frame | 1 | 53V | - | - | 180W (301W Forced Air) | - | - | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | - | 5.67 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) |
