| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

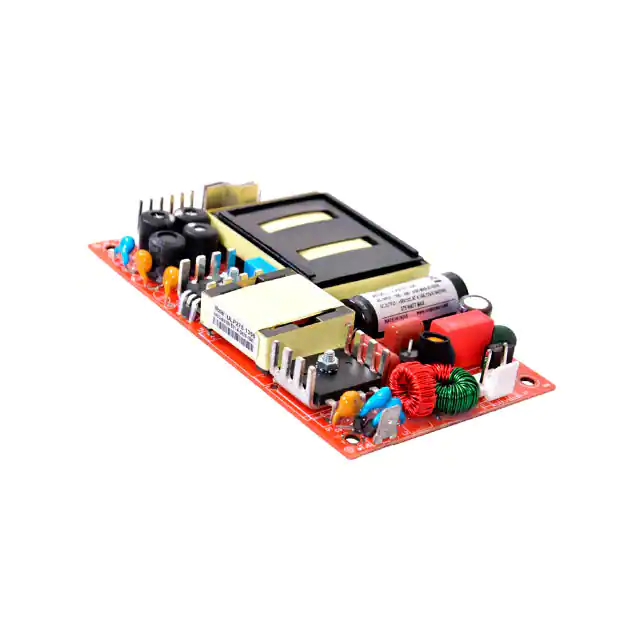

MULP275-0315-2AC/DC CONVERTER 15V 160W EOS Power |
4 | - |
|
数据表 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 10.66 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
|
MULP275-0324-2AC/DC CONVERTER 24V 160W EOS Power |
4 | - |
|
数据表 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 6.67 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
|
MULP275-0030-2AC/DC CONVERTER 30V 160W EOS Power |
4 | - |
|
数据表 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 30V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 5.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
|
MULP275-0330-2AC/DC CONVERTER 30V 160W EOS Power |
4 | - |
|
数据表 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 30V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 5.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
|
MULP275-0348-2AC/DC CONVERTER 48V 160W EOS Power |
4 | - |
|
数据表 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 48V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 3.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
|

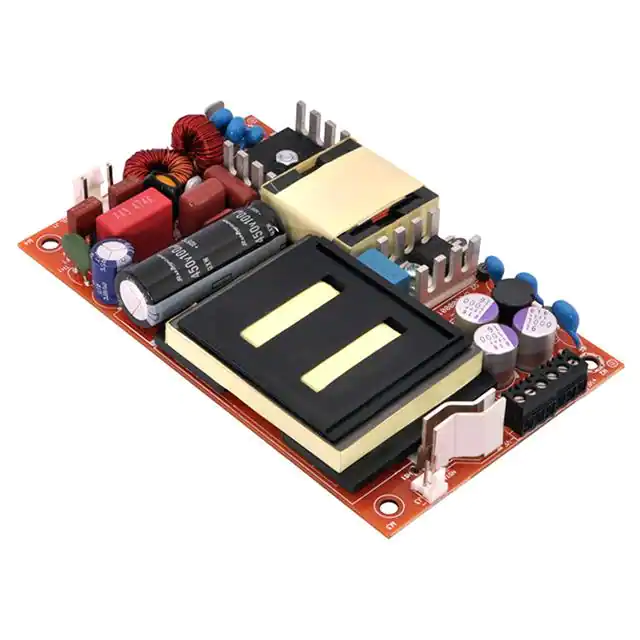

MULP275-1012AC/DC CONVERTER 12V 160W EOS Power |
2 | - |
|
数据表 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 13.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) |
|
MULP275-1330AC/DC CONVERTER 30V 160W EOS Power |
2 | - |
|
数据表 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 30V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 5.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) |
|
MULP275-0012AC/DC CONVERTER 12V 160W EOS Power |
3 | - |
|
数据表 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 160W (275W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 13.33 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.50" W x 0.75" H (127.0mm x 88.9mm x 19.1mm) |
|
MULP180-1330AC/DC CONVERTER 30V 120W EOS Power |
12 | - |
|
数据表 |
MULP180 (180W) | Bulk | Active | Open Frame | 1 | 30V | - | - | 120W (180W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 4 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) |
|
LFWLT450-1001AC/DC CONVERTER 12V 250W EOS Power |
24 | - |
|
数据表 |
WLT450 (450W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 250W (450W Forced Air) | - | - | 90 ~ 264 VAC, 120 ~ 390 VDC | - | 20.83 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm) |
