交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
96PS-A400WFX-1AC/DC CNVT 5V 3X12V 2X5V 572W Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | 6 | 5V | 12V | 12V | 572W | 12V | 5V | 90 ~ 264 VAC | 5V | 16 A | 16 A | 18 A | ITE (Commercial) | 200 mA | 18 A | 500 mA | - | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Chassis Mount | 7.48" L x 3.21" W x 1.59" H (190.0mm x 81.5mm x 40.5mm) |
|
|
96PS-A400WPS2-1AC/DC CNVT 3.3V 5V 2X12V 2X5V Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Active | - | 5 | 3.3V | 5V | 12V | 640W | 12V | 5V | 100 ~ 240 VAC | 5V | 28 A | - | 35 A | ITE (Commercial) | 500 mA | 30 A | 800 mA | - | 0°C ~ 40°C | PFC, Standby Output | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) |
|
|
96PS-A500W2UAC/DC CONVERTER 5V 5X12V 682W Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | 5 | 5V | 12V | 12V | 682W | 12V | 12V | 90 ~ 264 VAC | 12V | 20 A | - | 16 A | ITE (Commercial) | 500 mA | 16 A | 16 A | - | 0°C ~ 50°C | PFC, Standby Output | Chassis Mount | 9.45" L x 3.94" W x 2.76" H (240.0mm x 100.0mm x 70.0mm) |
|
|
96PSR-A500WMINAC/DC CNVT 3.3V 5V 4X12V 750W Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Active | - | 8 | 3.3V | 5V | 12V | 750W | 12V | 12V | 100 ~ 240 VAC | -12V | 20 A | 500 mA | 20 A | ITE (Commercial) | 16 A | 16 A | 16 A | - | 0°C ~ 50°C | PFC, Standby Output | Chassis Mount | 7.48" L x 5.91" W x 3.31" H (190.0mm x 150.0mm x 84.0mm) |
|

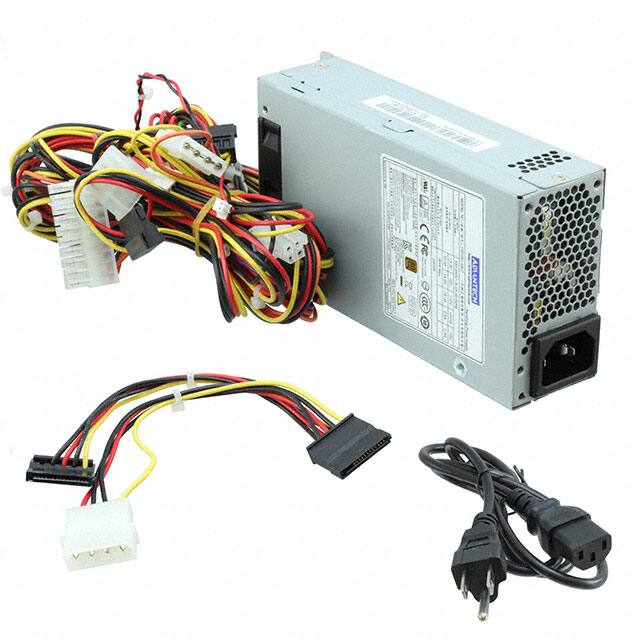

PS8-250FATX-XEAC/DC CNVRTR 3.3V 5V +/-12V 329W Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Obsolete | Enclosed | 4 | 3.3V | 5V | 12V | 329W | -12V | - | 90 ~ 264 VAC | - | 12 A | - | 14 A | ITE (Commercial) | - | 18 A | 300 mA | - | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Chassis Mount | 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) |
|

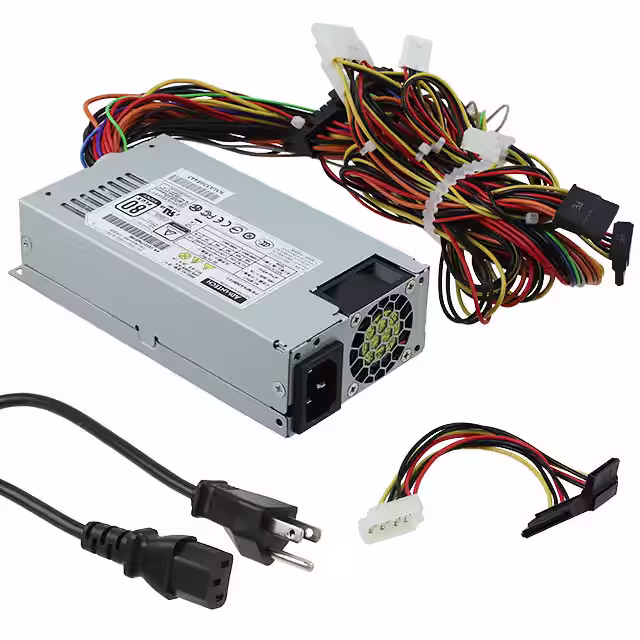

PS8-350FATX-XEAC/DC CNVT 3.3V 5V 4X12V 568W Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | 5 | 3.3V | 5V | 12V | 568W | 12V | 12V | 100 ~ 240 VAC | 12V | 16 A | - | 16 A | ITE (Commercial) | 300 mA | 18 A | 18 A | - | 0°C ~ 50°C | PFC, Standby Output | Chassis Mount | 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) |
|

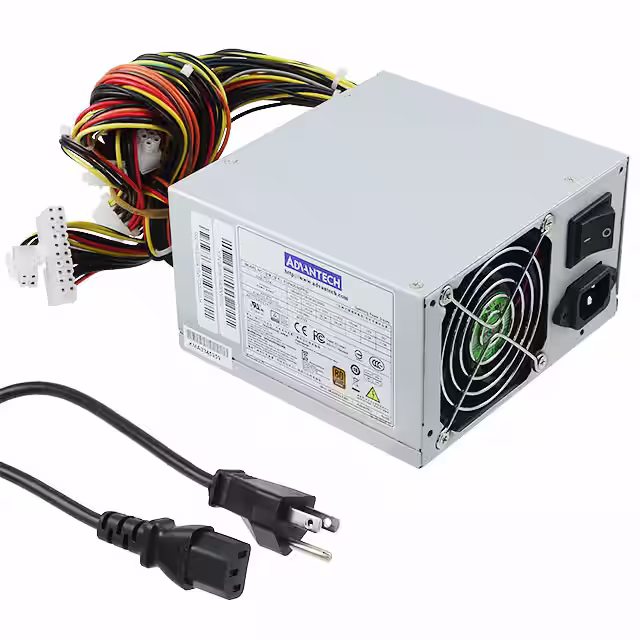

PS8-400ATX-ZEAC/DC CNVT 3.3V 5V 2X12V 2X-12V Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | 6 | 3.3V | 5V | 12V | 561W | 12V | -12V | 90 ~ 264 VAC | -12V | 21 A | 300 mA | 20 A | ITE (Commercial) | 500 mA | 16 A | 16 A | - | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) |
|

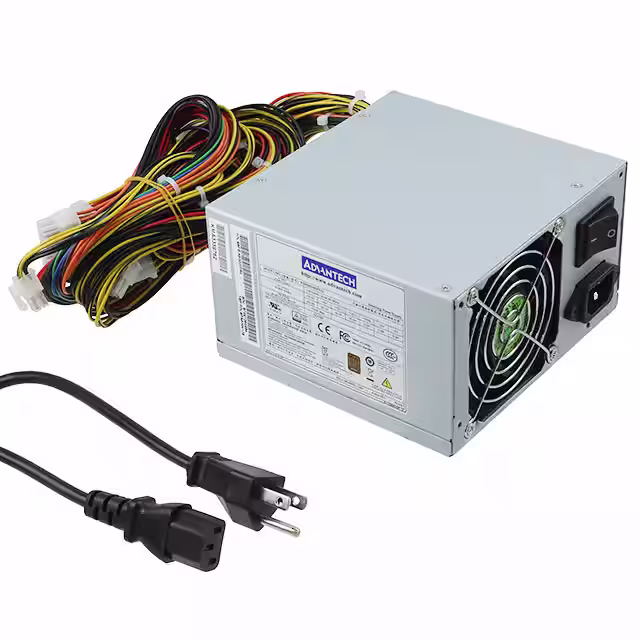

PS8-500ATX-ZEAC/DC CNVT 3.3V 5V 2X12V 2X-12V Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | 6 | 3.3V | 5V | 12V | 571W | 12V | -12V | 100 ~ 240 VAC | -12V | 24 A | 300 mA | 20 A | ITE (Commercial) | 500 mA | 16 A | 16 A | - | - | Standby Output | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.1mm x 140.0mm x 86.1mm) |
|

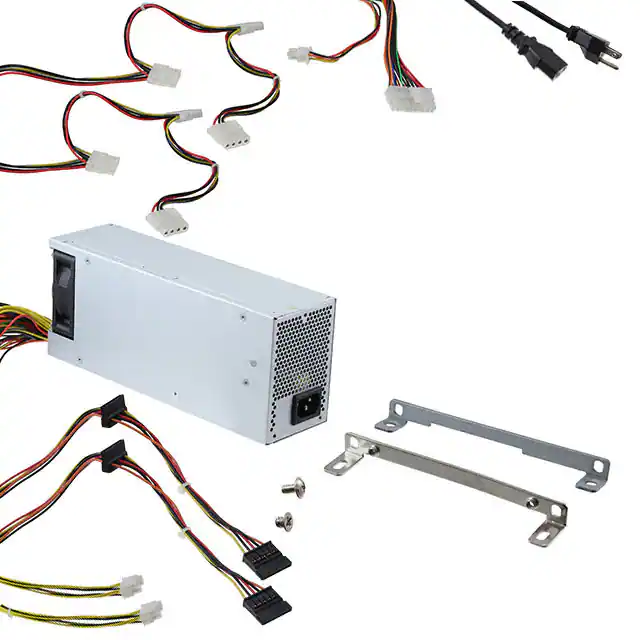

PS8-500U2-XEAC/DC CONVERTER 5V 5X12V 682W Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | 5 | 5V | 12V | 12V | 682W | 12V | 12V | 90 ~ 264 VAC | 12V | 20 A | - | 16 A | ITE (Commercial) | 500 mA | 16 A | 16 A | - | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Chassis Mount | 9.45" L x 3.94" W x 2.76" H (240.0mm x 100.0mm x 70.0mm) |
|

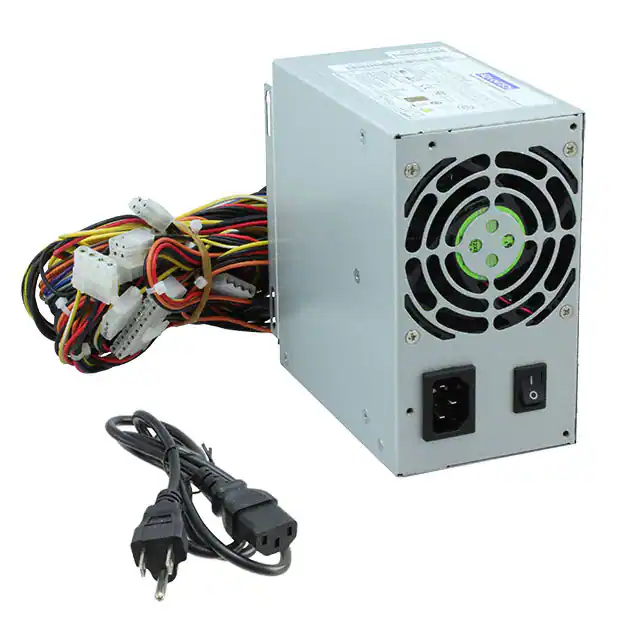

PS8-700ATX-ZEAC/DC CNVT 3.3V 5V 4X12V 1006W Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | 9 | 3.3V | 5V | 12V | 1006W | 12V | 12V | 100 ~ 240 VAC | 12V | 24 A | 16 A | 30 A | ITE (Commercial) | 16 A | 16 A | 16 A | - | - | Standby Output | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.1mm x 140.0mm x 86.1mm) |
