交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPS-X62A850W-A80+ GOLD PS/2 SPS 850W Advantech Corporation |
2 | - |
|
数据表 |
- | Box | Active | ATX | 4 | 3.3V | 5V | 12V | 850W | -12V | - | 90 ~ 264 VAC | - | 20 A | - | 20 A | ITE (Commercial) | - | 70.5 A | 300 mA | 2.6 kV | 0°C ~ 50°C | Standby Output, Universal Input | Benchtop | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) |
|

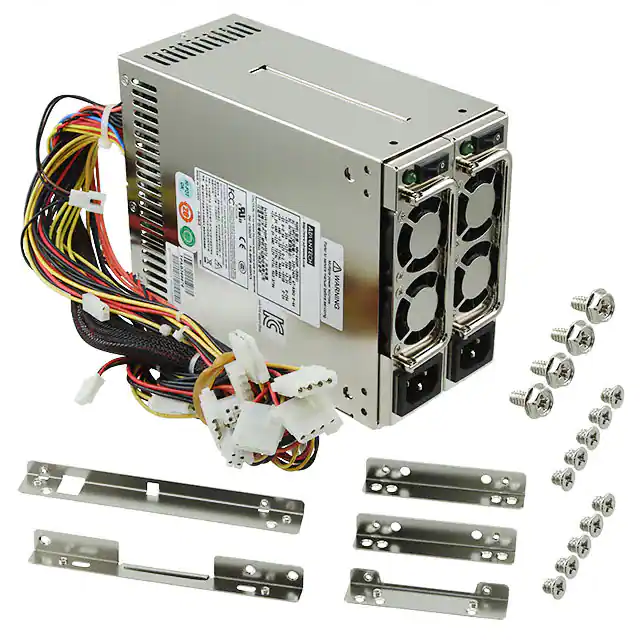

RPS-400ATX-ZEAC/DC CNVT 5V 3.3V +/-12V -5V Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Active | Enclosed | 5 | 5V | 3.3V | 12V | 400W | -12V | -5V | 100 ~ 240 VAC | - | 35 A | - | 25 A | ITE (Commercial) | 500 mA | 28 A | 1.2 A | - | - | - | Chassis Mount | 7.28" L x 5.91" W x 3.39" H (184.9mm x 150.1mm x 86.1mm) |
|
|
PS8-700ATX-BBAC/DC CNVT 3.3V 5V 4X12V 700W Advantech Corporation |
0 | - |
|
数据表 |
80 Plus | Box | Active | Enclosed | 9 | 3.3V | 5V | 12V | 700W | 12V | 12V | 90 ~ 264 VAC | 12V | 24 A | 16 A | 30 A | ITE (Commercial) | 16 A | 16 A | 16 A | - | 0°C ~ 50°C | 80 Plus® Bronze, Standby Output, Universal Input | Rack Mount | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) |
|
|
96PS-A200W1UAC/DC CNVRTR 3.3V 5V 2X12V 243W Advantech Corp |
0 | - |
|
数据表 |
PS-A200W (200W) | Bulk | Discontinued at Digi-Key | - | 4 | 3.3V | 5V | 12V | 243W | 12V | - | 100 ~ 240 VAC | - | 14 A | - | 16 A | ITE (Commercial) | - | 9 A | 700 mA | - | 0°C ~ 50°C | PFC, Standby Output | Chassis Mount | 7.48" L x 3.94" W x 1.57" H (190.0mm x 100.0mm x 40.0mm) |
|
|
96PS-A300W2UAC/DC CNVT 3.3V 5V +/-12V -5V Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Discontinued at Digi-Key | - | 5 | 3.3V | 5V | 12V | 448W | -12V | -5V | 100 ~ 240 VAC | - | 20 A | - | 35 A | ITE (Commercial) | 500 mA | 16 A | 1 A | - | 0°C ~ 40°C | PFC, Standby Output | Chassis Mount | 7.87" L x 3.94" W x 2.76" H (200.0mm x 100.0mm x 70.0mm) |
|
|
96PS-A300W1UAC/DC CNVT 3.3V 5V +/-12V -5V Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Discontinued at Digi-Key | - | 5 | 3.3V | 5V | 12V | 378W | -12V | -5V | 100 ~ 240 VAC | - | 14 A | - | 25 A | ITE (Commercial) | 500 mA | 16 A | 1 A | - | 0°C ~ 40°C | PFC, Standby Output | Chassis Mount | 8.07" L x 3.94" W x 1.59" H (205.0mm x 100.0mm x 40.5mm) |
|
|
96PS-A400WPS2-2AC/DC CNVT 3.3V 5V 2X12V 2X5V Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Discontinued at Digi-Key | - | 5 | 3.3V | 5V | 12V | 640W | 12V | 5V | 100 ~ 240 VAC | 5V | 28 A | - | 35 A | ITE (Commercial) | 500 mA | 30 A | 800 mA | - | 0°C ~ 40°C | PFC, Standby Output | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) |
|
|
96PS-A500WPS2-2AC/DC CNVT 3.3V 5V 2X12V 2X5V Advantech Corp |
0 | - |
|
数据表 |
- | Bulk | Discontinued at Digi-Key | - | 5 | 3.3V | 5V | 12V | 706W | 12V | 5V | 110 ~ 240 VAC | 5V | 32 A | - | 40 A | ITE (Commercial) | 800 mA | 32 A | 1 A | - | 0°C ~ 40°C | PFC, Standby Output | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.0mm x 140.0mm x 86.0mm) |
|

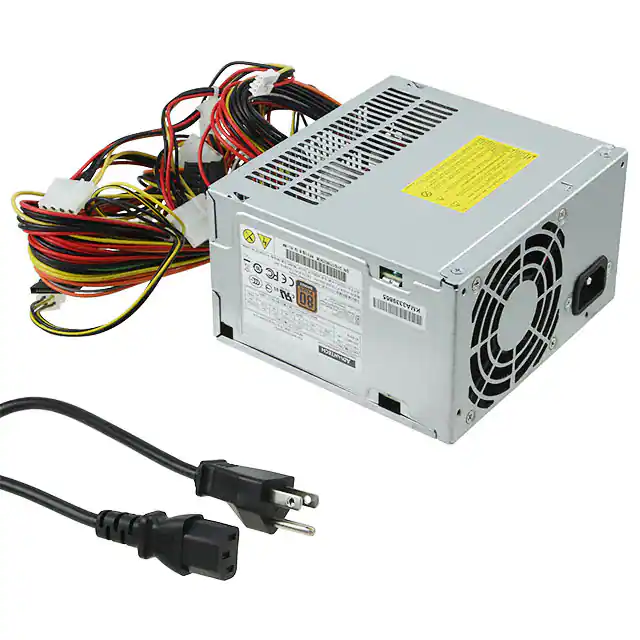

PS8-300ATX-ZBEAC/DC CNVT 3.3V 5V 2X12V 2X-12V Advantech Corporation |
0 | - |
|
数据表 |
- | Bulk | Active | - | 6 | 3.3V | 5V | 12V | 423W | 12V | -12V | 100 ~ 240 VAC | -12V | 16 A | 300 mA | 19 A | ITE (Commercial) | 300 mA | 11 A | 11.5 A | - | - | Standby Output | Chassis Mount | 5.91" L x 5.51" W x 3.39" H (150.1mm x 140.0mm x 86.1mm) |
|

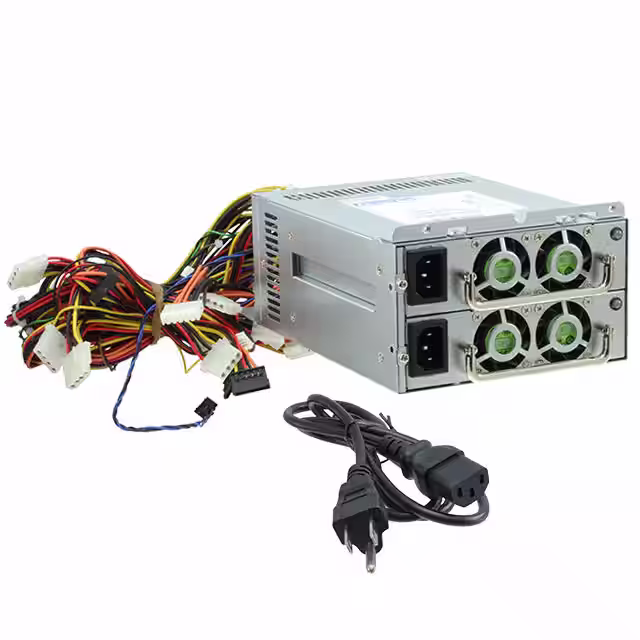

RPS8-750ATX-XEAC/DC CNVT 3.3V 5V +/-12V 5V Advantech Corp |
2 | - |
|
数据表 |
- | Bulk | Active | Enclosed | 5 | 3.3V | 5V | 12V | 750W | -12V | 5V | 100 ~ 240 VAC | - | 24 A | - | 30 A | ITE (Commercial) | 4 A | 60.9 A | 500 mA | - | 0°C ~ 60°C | PFC, PMBus™ | Chassis Mount | 7.87" L x 5.91" W x 3.31" H (200.0mm x 150.0mm x 84.0mm) |
