交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPT-160BAC/DC CONVERTER 5V +/-12V 95W |
6 | - |
|
数据表 |
RPT-160 (160W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 95W (142W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 9 A | - | 3.4 A | Medical | - | 800 mA | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.5mm) | ||
|
HRP-200-48AC/DC CONVERTER 48V 206W |
3 | - |
|
数据表 |
HRP-200 (200W) | Box | Active | Enclosed | 1 | 48V | - | - | 206W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|
TPP 65-105AC/DC CONVERTER 5V 50W |
4 | - |
|
数据表 |
TPP 65 (65W) | Box | Active | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.53" L x 2.38" W x 1.31" H (89.7mm x 60.5mm x 33.3mm) | ||
|
HRPG-200-48AC/DC CONVERTER 48V 206W |
9 | - |
|
数据表 |
HRPG-200 (200W) | Box | Active | Enclosed | 1 | 48V | - | - | 206W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|
WMA350H-24AC/DC PS (ENCLOSED TYPE) 350W, |
10 | - |
|
数据表 |
WMA (350W) | Box | Active | Enclosed | 1 | 24V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 14.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|

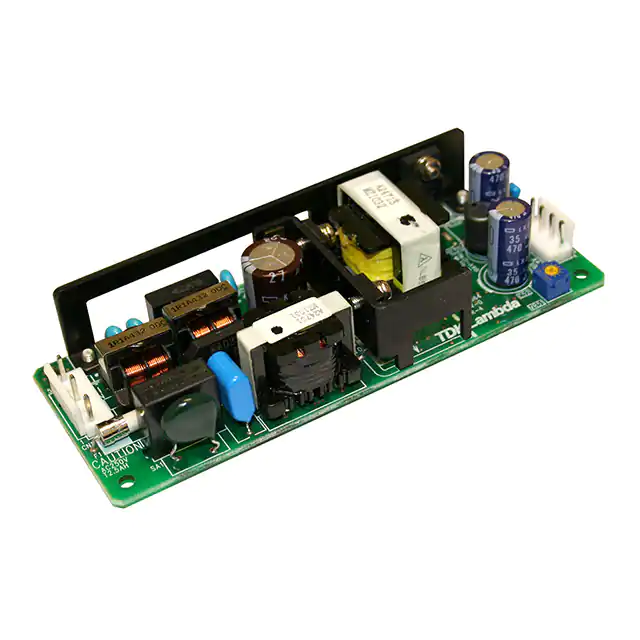

ZWS50BAF-15/AAC/DC CONVERTER 15V 50W |
10 | - |
|
数据表 |
ZWS50BAF (50W) | Bulk | Active | Enclosed | 1 | 15V | - | - | 50W | - | - | 85 ~ 265 VAC | - | 3.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.20" L x 1.97" W x 1.02" H (132.0mm x 50.0mm x 26.0mm) | ||
|
|
ZWS50BAF-12/AAC/DC CONVERTER 12V 50W |
8 | - |
|
数据表 |
ZWS50BAF (50W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 50W | - | - | 85 ~ 265 VAC | - | 4.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.20" L x 1.97" W x 1.02" H (132.0mm x 50.0mm x 26.0mm) | ||
|
|
PMR-36V320W1ATAC/DC CONVERTER 36V 320W |
8 | - |
|
数据表 |
PMR (320W) | Box | Active | Enclosed | 1 | 36V | - | - | 320W | - | - | 90 ~ 264 VAC | - | 8.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (214.9mm x 115.1mm x 30.0mm) | ||
|
|
PMR-48V320W1ATAC/DC CONVERTER 48V 322W |
6 | - |
|
数据表 |
PMR (320W) | Box | Active | Enclosed | 1 | 48V | - | - | 322W | - | - | 90 ~ 264 VAC | - | 6.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (214.9mm x 115.1mm x 30.0mm) | ||
|
CSS150-15AC/DC CONVERTER 15V 100W |
8 | - |
|
数据表 |
CSS150 (150W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 100W (150W Forced Air) | - | - | 90 ~ 264 VAC | - | 6.7 A | - | - | Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | ||
|
UHP-350-3.3AC/DC CONVERTER 3.3V 198W |
8 | - |
|
数据表 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 3.3V | - | - | 198W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 60 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | ||
|
RACM40-05SAC/DC CONVERTER 5V 40W |
2 | - |
|
数据表 |
MEDLINE RACM40 (40W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 40W | - | - | 85 ~ 264 VAC | - | 8 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.60" L x 2.38" W x 1.31" H (91.4mm x 60.5mm x 33.3mm) | ||
|
RPS-400-18AC/DC CONVERTER 18V 250W |
11 | - |
|
数据表 |
RPS-400 (400W) | Box | Active | Open Frame | 1 | 18V | - | - | 250W (401W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 13.9 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.37" H (127.0mm x 76.2mm x 34.8mm) | ||
|

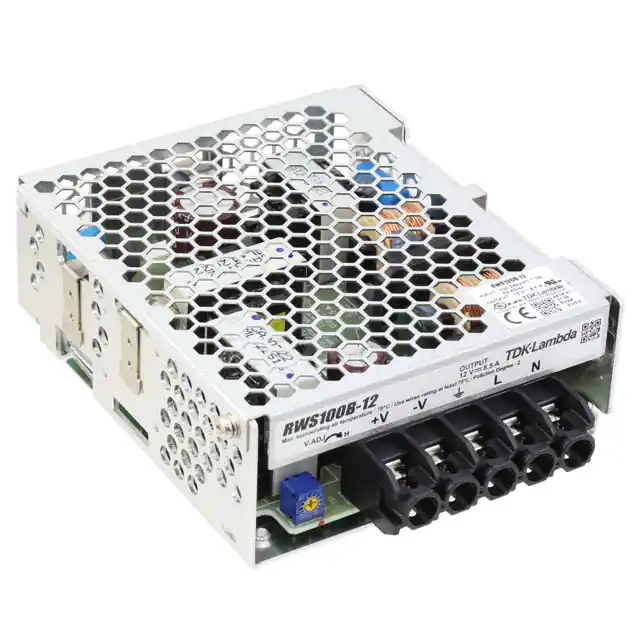

RWS100B-12/CO2AC/DC CONVERTER 12V 100W |
2 | - |
|
数据表 |
RWS-B (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 12V | - | - | 100W | - | - | 85 ~ 265 VAC | - | 8.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.25" L x 3.70" W x 1.54" H (108.0mm x 94.0mm x 39.0mm) | ||
|
|
LOP-500-2480-264VAC O/P +24V20.8A |
0 | - |
|
数据表 |
LOP-500 (500W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 322W (500W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 13.4 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.08" H (127.0mm x 76.2mm x 27.5mm) | ||
|
|
HRPG-200-5AC/DC CONVERTER 5V 175W |
17 | - |
|
数据表 |
HRPG-200 (200W) | Box | Active | Enclosed | 1 | 5V | - | - | 175W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 35 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|
|
HRPG-200-3.3AC/DC CONVERTER 3.3V 132W |
9 | - |
|
数据表 |
HRPG-200 (200W) | Box | Active | Enclosed | 1 | 3.3V | - | - | 132W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 40 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|
|
HRPG-200-36AC/DC CONVERTER 36V 205W |
3 | - |
|
数据表 |
HRPG-200 (200W) | Box | Active | Enclosed | 1 | 36V | - | - | 205W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 3.86" W x 1.50" H (199.0mm x 98.0mm x 38.0mm) | ||
|

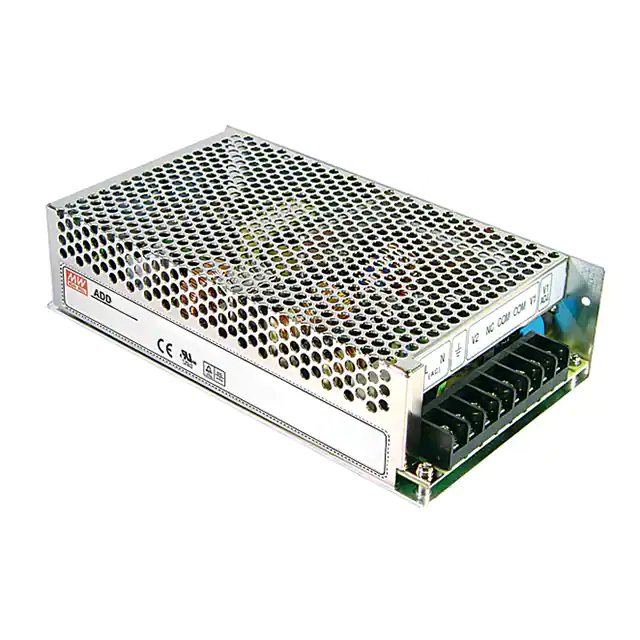

ADD-155CAC/DC CNVRTR 54V 5V 53.5V 150W |
9 | - |
|
数据表 |
ADD-155 (155W) | Box | Active | Enclosed | 3 | 54V | 5V | 53.5V | 150W | - | - | 88 ~ 264 VAC, 124 ~ 370 VDC | - | 2.3 A | - | 3 A | ITE (Commercial) | - | 200 mA | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 4.33" W x 1.97" H (199.0mm x 110.0mm x 50.0mm) | ||
|
UHP-350R-3.3AC/DC CONVERTER 3.3V 198W |
5 | - |
|
数据表 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 3.3V | - | - | 198W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 60 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) |
