交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM202S240BAC/DC CONVERTER 24V 150W Cincon Electronics Co. LTD |
19 | - |
|
数据表 |
CFM202S (200W) | Box | Active | Open Frame | 1 | 24V | - | - | 150W (200W Forced Air) | - | - | 90 ~ 264 VAC | - | 8.33 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Baseplate, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.31" H (101.6mm x 50.8mm x 33.3mm) |
|
|
CFM202S240CAC/DC CONVERTER 24V 180W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM202S (200W) | Box | Active | Enclosed | 1 | 24V | - | - | 180W (200W Forced Air) | - | - | 90 ~ 264 VAC | - | 8.33 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.52" W x 1.36" H (116.8mm x 64.0mm x 34.5mm) |
|
CFM500S480AC/DC CONVERTER 48V 380W Cincon Electronics Co. LTD |
18 | - |
|
数据表 |
CFM500S (500W) | Box | Active | Open Frame | 1 | 48V | - | - | 380W (500W Forced Air) | - | - | 80 ~ 264 VAC | - | 7.92 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|

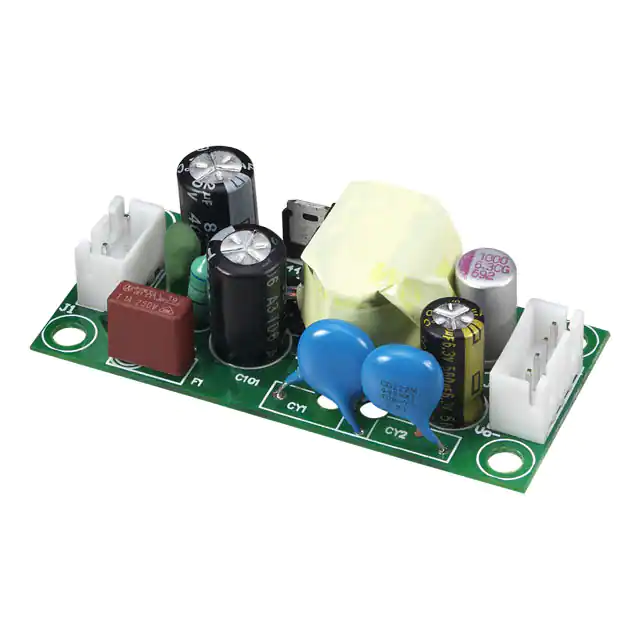

CFM12S120-TAC/DC CONVERTER 12V 12W Cincon Electronics Co. LTD |
3 | - |
|
数据表 |
CFM12S (12W) | Box | Active | Open Frame | 1 | 12V | - | - | 12W | - | - | 90 ~ 264 VAC | - | 1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.15" L x 1.00" W x 0.68" H (54.6mm x 25.4mm x 17.3mm) |
|
|
CFM12S050-TAC/DC CONVERTER 5V 10W Cincon Electronics Co. LTD |
39 | - |
|
数据表 |
CFM12S (12W) | Box | Active | Open Frame | 1 | 5V | - | - | 10W | - | - | 90 ~ 264 VAC | - | 2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.15" L x 1.00" W x 0.68" H (54.6mm x 25.4mm x 17.3mm) |
|
CFM21S120-TAC/DC CONVERTER 12V 20W Cincon Electronics Co. LTD |
11 | - |
|
数据表 |
CFM21 (20W) | Box | Active | Open Frame | 1 | 12V | - | - | 20W | - | - | 90 ~ 264 VAC | - | 1.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 5.656 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 1.60" W x 0.77" H (76.2mm x 40.6mm x 19.5mm) |
|
CFM50S120AC/DC CONVERTER 12V 50W Cincon Electronics Co. LTD |
28 | - |
|
数据表 |
CFM50S (50W) | Box | Active | Open Frame | 1 | 12V | - | - | 50W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 4.17 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.07" H (76.2mm x 50.8mm x 27.1mm) |
|
CFM25S240-TAC/DC CONVERTER 24V 25W Cincon Electronics Co. LTD |
25 | - |
|
数据表 |
CFM25S (25W) | Box | Active | Open Frame | 1 | 24V | - | - | 25W | - | - | 90 ~ 264 VAC | - | 1.05 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.78" L x 1.10" W x 0.91" H (70.5mm x 27.9mm x 23.0mm) |
|
|
CFM50S240-CAAC/DC CONVERTER 24V 50W Cincon Electronics Co. LTD |
20 | - |
|
数据表 |
CFM50S (50W) | Box | Active | Enclosed | 1 | 24V | - | - | 50W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 2.08 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
|
|
CFM50S480AC/DC CONVERTER 48V 50W Cincon Electronics Co. LTD |
40 | - |
|
数据表 |
CFM50S (50W) | Box | Active | Open Frame | 1 | 48V | - | - | 50W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 1.04 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.07" H (76.2mm x 50.8mm x 27.1mm) |
