交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

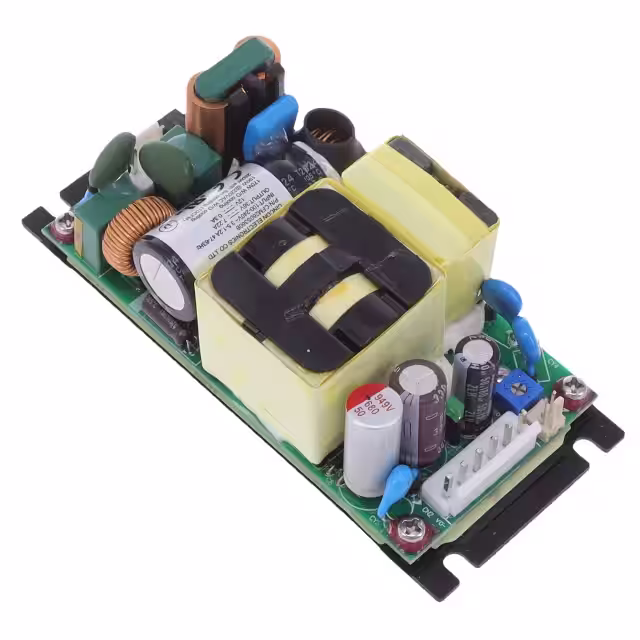

CFM260S360BAC/DC CONVERTER 36V 260W Cincon Electronics Co. LTD |
18 | - |
|
数据表 |
CFM260S (260W) | Box | Active | Open Frame | 1 | 36V | - | - | 260W | - | - | 85 ~ 264 VAC | - | 7.22 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 80°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 4.60" L x 2.00" W x 1.52" H (116.8mm x 50.8mm x 38.6mm) |
|
CFM202S480BAC/DC CONVERTER 48V 150W Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
CFM202S (200W) | Box | Active | Open Frame | 1 | 48V | - | - | 150W (200W Forced Air) | - | - | 90 ~ 264 VAC | - | 4.17 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Baseplate, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.31" H (101.6mm x 50.8mm x 33.3mm) |
|

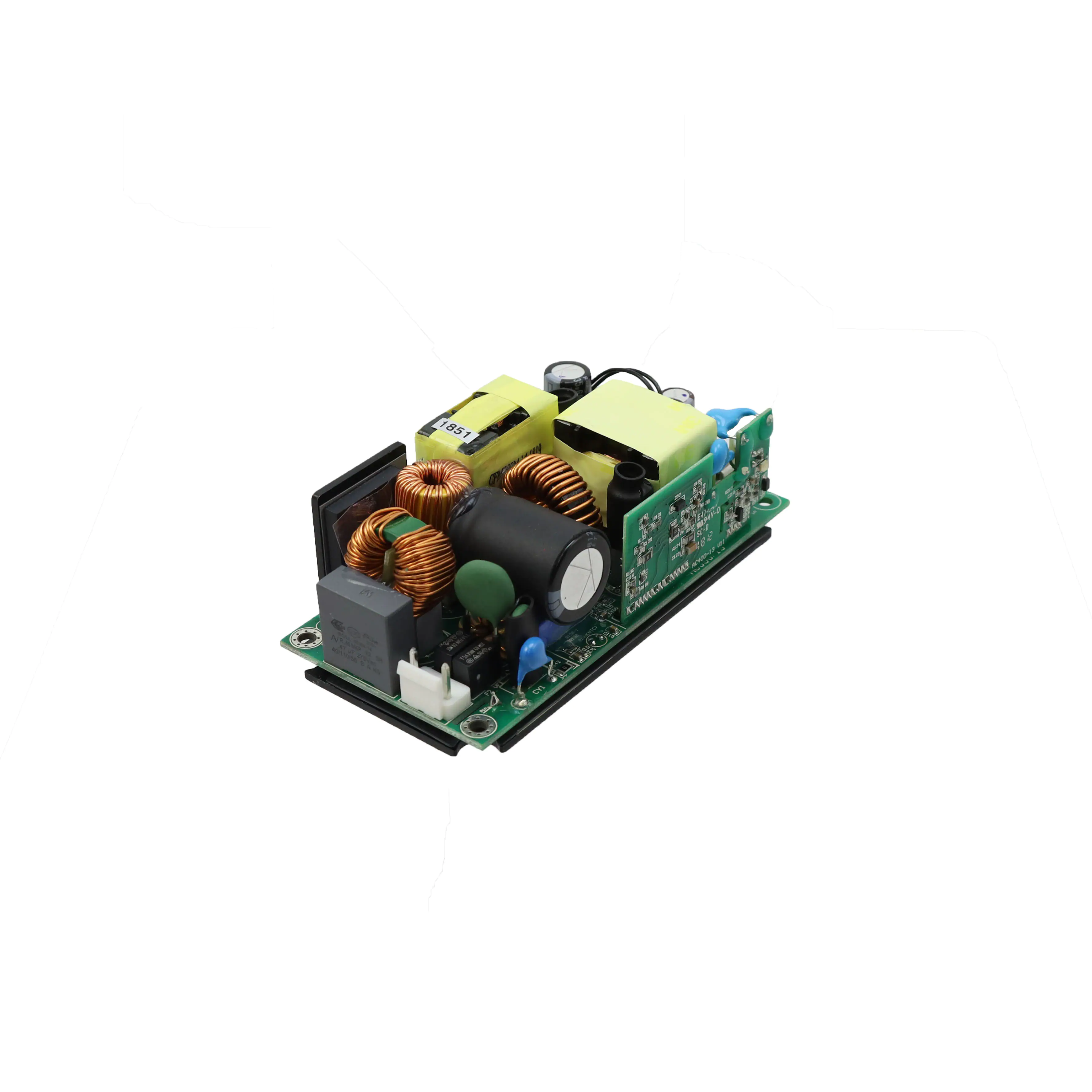

CFM200M240AC/DC CONVERTER 24V 200W Cincon Electronics Co. LTD |
18 | - |
|
数据表 |
CFM200M (200W) | Tray | Obsolete | Open Frame | 1 | 24V | - | - | 200W | - | - | 90 ~ 264 VAC | - | 8.33 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.48" H (101.6mm x 50.8mm x 37.6mm) |
|
CFM200M480AC/DC CONVERTER 48V 200W Cincon Electronics Co. LTD |
16 | - |
|
数据表 |
CFM200M (200W) | Tray | Obsolete | Open Frame | 1 | 48V | - | - | 200W | - | - | 90 ~ 264 VAC | - | 4.17 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.48" H (101.6mm x 50.8mm x 37.6mm) |
|

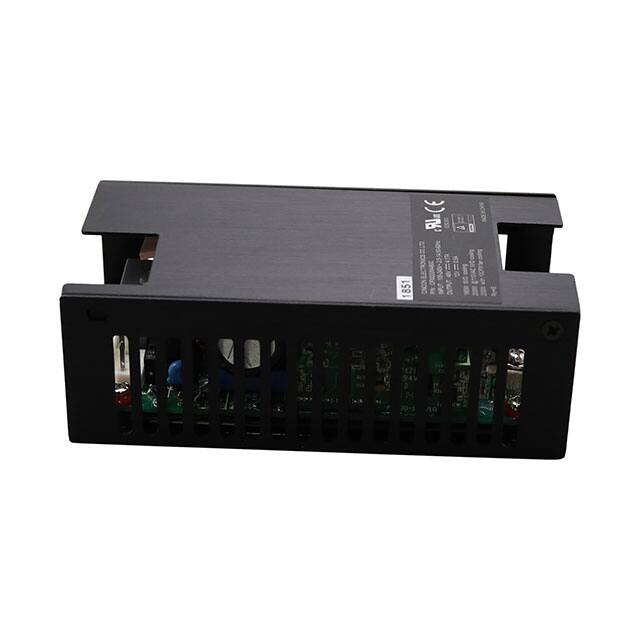

CFM200M480CAC/DC CONVERTER 48V 200W Cincon Electronics Co. LTD |
5 | - |
|
数据表 |
CFM200M (200W) | Tray | Obsolete | Enclosed | 1 | 48V | - | - | 200W | - | - | 90 ~ 264 VAC | - | 4.17 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 80°C (With Derating) | Universal Input | Chassis Mount | 4.61" L x 2.44" W x 1.59" H (117.0mm x 62.0mm x 40.5mm) |
|
|
LFM300M120CAC-DC SWITCHING POWER MODULE,90- Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
LFM300M (300W) | Tray | Active | Enclosed | 1 | 12V | - | - | 160W (300W Forced Air) | - | - | 85 ~ 264 VAC | - | 25 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.09" L x 2.28" W x 1.00" H (103.9mm x 57.9mm x 25.4mm) |
|
|
LFM300M480CAC-DC SWITCHING POWER MODULE,90- Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
LFM300M (300W) | Tray | Active | Enclosed | 1 | 48V | - | - | 160W (300W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.25 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.09" L x 2.28" W x 1.00" H (103.9mm x 57.9mm x 25.4mm) |
|
|
LFM300M280CAC-DC SWITCHING POWER MODULE,90- Cincon Electronics Co. LTD |
0 | - |
|
数据表 |
LFM300M (300W) | Tray | Active | Enclosed | 1 | 28V | - | - | 160W (300W Forced Air) | - | - | 85 ~ 264 VAC | - | 10.7 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.09" L x 2.28" W x 1.00" H (103.9mm x 57.9mm x 25.4mm) |
|
CFM361S480AC/DC CONVERTER 48V 355W Cincon Electronics Co. LTD |
17 | - |
|
数据表 |
CFM361S (360W) | Box | Obsolete | Open Frame | 1 | 48V | - | - | 355W | - | - | 90 ~ 264 VAC | - | 7.4 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.60" H (127.0mm x 76.2mm x 40.6mm) |
|
CFM40T-03AC/DC CONVERTER 5V +/-15V 42W Cincon Electronics Co. LTD |
3 | - |
|
数据表 |
CFM40T (40W) | Box | Active | Open Frame | 3 | 5V | 15V | -15V | 42W | - | - | 90 ~ 264 VAC | - | 3 A | - | 1.5 A | ITE (Commercial) | - | 300 mA | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.13" H (101.6mm x 50.8mm x 28.6mm) |
