交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEVO+600S-4430-DK000AC/DC CONVERTER 2X48V 24V 300W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 3 | 48V | 48V | 24V | 300W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 3.75 A | ITE (Commercial) | - | 7.5 A | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
|
NEVO+600S-4051-DK000AC/DC CNVRTR 48V 2X12V 5V 275W |
0 | - |
|
数据表 |
NEVO+600S | Box | Active | Enclosed | 4 | 48V | 12V | 12V | 275W | 5V | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | 5 A | ITE (Commercial) | - | 5 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 3.06" L x 3.06" W x 1.61" H (77.7mm x 77.7mm x 41.0mm) | ||
|
NMP1K2-C#E#HK-00AC/DC CNVRTR 5V 12V 24V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 12V | 24V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
HD24-4.8-AGAC/DC CONVERTER 24V 115W |
93 | - |
|
数据表 |
Linear D | Bulk | Active | Linear | 1 | 24V | - | - | 115W | - | - | 100, 120, 220, 230, 240 VAC | - | 4.8 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 9.00" L x 4.87" W x 3.28" H (228.6mm x 123.7mm x 83.3mm) | ||
|

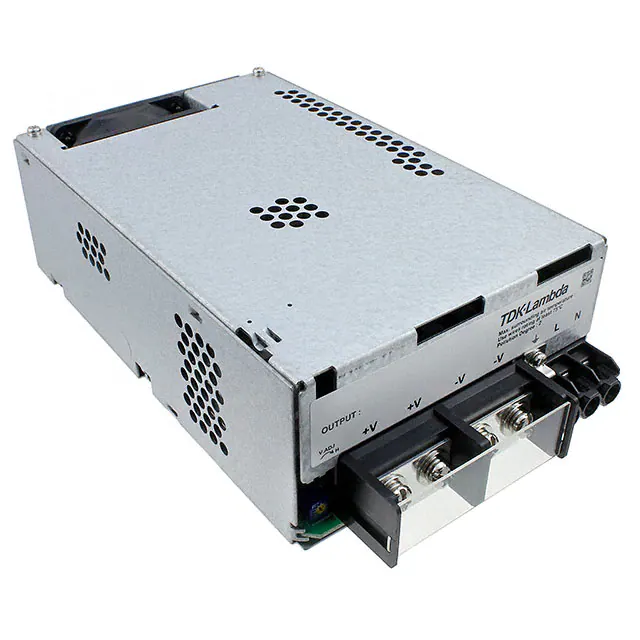

RWS600B-24AC/DC CONVERTER 24V 600W |
627 | - |
|
数据表 |
RWS-B (600W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 600W | - | - | 85 ~ 265 VAC | - | 25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | ||
|
|
NMP1K2-C#E#KC-00AC/DC CNVRTR 5V 12V 48V 5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 12V | 48V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 20 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
VGS-75W-36-AAC/DC CONVERTER 36V 75W |
0 | - |
|
数据表 |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 75W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 2.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LCW75US24AC/DC CONVERTER 24V 77W |
0 | - |
|
数据表 |
LCW75 (75W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 77W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.2 A | - | - | Household Appliances, ITE (Commercial), Industrial | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
|
VGS-75W-5-AAC/DC CONVERTER 5V 70W |
0 | - |
|
数据表 |
VGS-75W (75W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 70W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 14 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
VGS-75W-5-BAC/DC CONVERTER 5V 70W |
0 | - |
|
数据表 |
VGS-75W (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 5V | - | - | 70W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 14 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM200-20B12R2-QENCLOSED AC DC CONVERTERS 204W 1 |
0 | - |
|
数据表 |
LM200-20BxxR2-Q (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 204W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 17 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|
|
LM200-20B54R2-CENCLOSED AC DC CONVERTERS 210.6W |
0 | - |
|
数据表 |
LM200-20BxxR2-C (204W) | Box | Not For New Designs | Enclosed | 1 | 54V | - | - | 211W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 3.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | ||
|

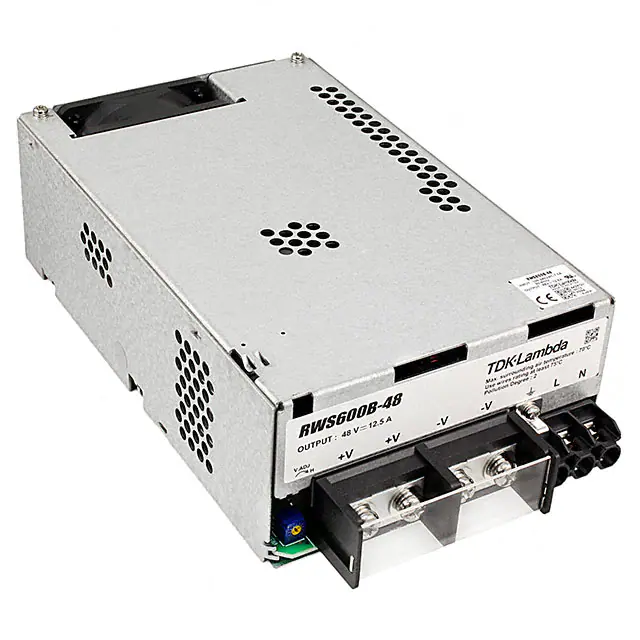

RWS600B-48AC/DC CONVERTER 48V 600W |
216 | - |
|
数据表 |
RWS-B (600W) | Bulk | Active | Enclosed | 1 | 48V | - | - | 600W | - | - | 85 ~ 265 VAC | - | 12.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 120.0mm x 61.0mm) | ||
|
|
HD5-12/OVP-AGAC/DC CONVERTER 5V 60W |
128 | - |
|
数据表 |
Linear D | Bulk | Active | Linear | 1 | 5V | - | - | 60W | - | - | 100, 120, 220, 230, 240 VAC | - | 12 A | - | - | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 9.00" L x 4.87" W x 3.28" H (228.6mm x 123.7mm x 83.3mm) | ||
|

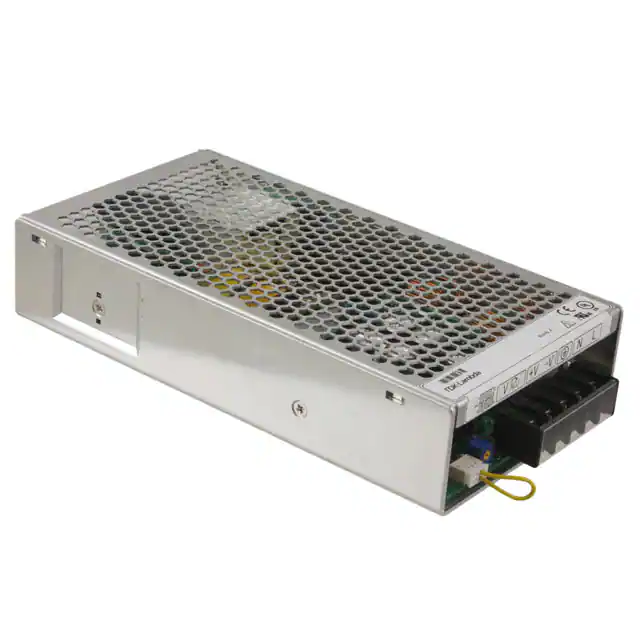

GWS250-12AC/DC CONVERTER 12V 250W |
56 | - |
|
数据表 |
GWS (250W) | Bulk | Active | Enclosed | 1 | 12V | - | - | 250W | - | - | 85 ~ 264 VAC | - | 21 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.80" L x 4.10" W x 1.61" H (198.0mm x 104.0mm x 41.0mm) | ||
|
|
GWS250-48AC/DC CONVERTER 48V 250W |
55 | - |
|
数据表 |
GWS (250W) | Bulk | Active | Enclosed | 1 | 48V | - | - | 250W | - | - | 85 ~ 264 VAC | - | 5.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.80" L x 4.10" W x 1.61" H (198.0mm x 104.0mm x 41.0mm) | ||
|
PSPA-1000-24AC/DC CONVERTER 24V 1008W |
57 | - |
|
数据表 |
PSPA-1000 (1000W) | Box | Active | Enclosed | 1 | 24V | - | - | 1008W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 42 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.69" L x 4.72" W x 3.66" H (170.0mm x 120.0mm x 93.0mm) | ||
|
|
PSPA-1000-48AC/DC CONVERTER 48V 1008W |
36 | - |
|
数据表 |
PSPA-1000 (1000W) | Box | Active | Enclosed | 1 | 48V | - | - | 1008W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 21 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.69" L x 4.72" W x 3.66" H (170.0mm x 120.0mm x 93.0mm) | ||
|
ZWQ130-5224/AAC/DC CNVRTR 5V +/-12V 24V 130W |
36 | - |
|
数据表 |
ZWQ (130W) | Bulk | Active | Enclosed | 4 | 5V | 12V | -12V | 130W | 24V | - | 85 ~ 265 VAC | - | 15 A | - | 4 A | ITE (Commercial) | - | 4 A | 2 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.86" L x 4.17" W x 1.38" H (225.0mm x 106.0mm x 35.0mm) | ||
|
|
HD48-3-AGAC/DC CONVERTER 48V 144W |
219 | - |
|
数据表 |
Linear D | Bulk | Active | Linear | 1 | 48V | - | - | 144W | - | - | 100, 120, 220, 230, 240 VAC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 9.00" L x 4.87" W x 3.28" H (228.6mm x 123.7mm x 83.3mm) |
