交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-50C-48-BAC/DC CONVERTER 48V 53W |
0 | - |
|
数据表 |
VGS-50C | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 53W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 1.1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
ECS100US15AC/DC CONVERTER 15V 80W |
1,594 | - |
|
数据表 |
ECS (100W) | Box | Active | Open Frame | 1 | 15V | - | - | 80W (100W Forced Air) | - | - | 80 ~ 264 VAC | - | 6.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | ||
|
NMP1K2-#KEEC#-00AC/DC CNVRTR 48V 2X12V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 12V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 20 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
ECS100US28AC/DC CONVERTER 28V 80W |
659 | - |
|
数据表 |
ECS (100W) | Box | Active | Open Frame | 1 | 28V | - | - | 80W (100W Forced Air) | - | - | 80 ~ 264 VAC | - | 3.6 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | ||
|
ECS100US48AC/DC CONVERTER 48V 80W |
213 | - |
|
数据表 |
ECS (100W) | Box | Active | Open Frame | 1 | 48V | - | - | 80W (100W Forced Air) | - | - | 80 ~ 264 VAC | - | 2.1 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | ||
|
NMP1K2-#KEEE#-00AC/DC CONVERTER 48V 3X12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 12V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 20 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
ECS100US18AC/DC CONVERTER 18V 80W |
107 | - |
|
数据表 |
ECS (100W) | Box | Active | Open Frame | 1 | 18V | - | - | 80W (100W Forced Air) | - | - | 80 ~ 264 VAC | - | 5.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | ||
|
NMP1K2-#KEEH#-00AC/DC CNVRTR 48V 2X12V 24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 12V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
LS200-5AC/DC CONVERTER 5V 200W |
36 | - |
|
数据表 |
LS (200W) | Bulk | Active | Enclosed | 1 | 5V | - | - | 200W | - | - | 88 ~ 264 VAC | - | 40 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm) | ||
|
NMP1K2-#KEEK#-00AC/DC CNVRTR 48V 2X12V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 12V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
OFM1005128AC/DC CONVERTER 24V 100W |
28 | - |
|
数据表 |
OFM100 (100W) | Box | Active | Open Frame | 1 | 24V | - | - | 100W | - | - | 90 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 50°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.02" L x 2.01" W x 1.26" H (102.0mm x 51.0mm x 32.0mm) | ||
|
NMP1K2-#KEH#C-00AC/DC CNVRTR 48V 12V 24V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 24V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
UHP-350-12AC/DC CONVERTER 12V 350W |
1,759 | - |
|
数据表 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 12V | - | - | 350W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 29.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | ||
|
NMP1K2-#KEH#E-00AC/DC CNVRT 48V 12V 24V 12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 24V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
UHP-350-24AC/DC CONVERTER 24V 350W |
243 | - |
|
数据表 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 24V | - | - | 350W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 14.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | ||
|
NMP1K2-#KEH#H-00AC/DC CNVRTR 48V 12V 2X24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 24V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
UHP-350-48AC/DC CONVERTER 48V 350W |
89 | - |
|
数据表 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 48V | - | - | 350W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 7.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | ||
|
NMP1K2-#KEH#K-00AC/DC CNVRT 48V 12V 24V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 24V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|

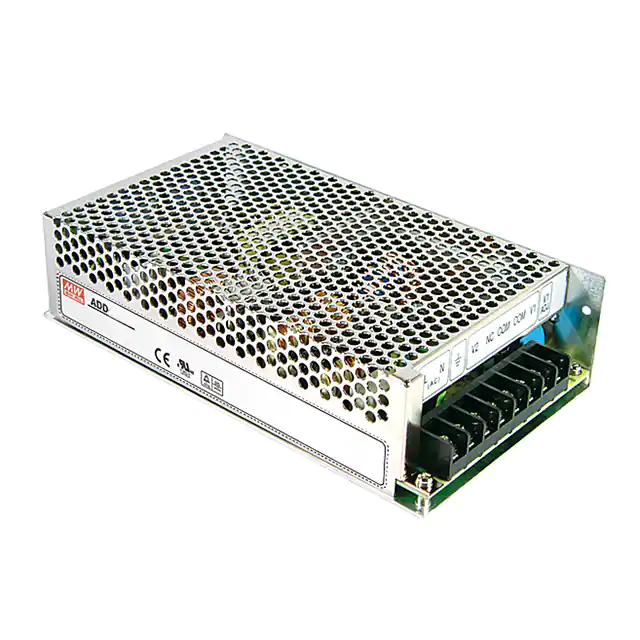

ADS-15524AC/DC CONVERTER 24V 5V 154W |
842 | - |
|
数据表 |
ADS-155 (155W) | Box | Active | Enclosed | 2 | 24V | 5V | - | 154W | - | - | 88 ~ 264 VAC, 124 ~ 370 VDC | - | 5.8 A | - | 3 A | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.83" L x 4.33" W x 1.97" H (199.0mm x 110.0mm x 50.0mm) | ||
|
NMP1K2-#KEHC#-00AC/DC CNVRTR 48V 12V 24V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 48V | 12V | 24V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | 20 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
