交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMP1K2-#HHEH#-00AC/DC CNVRTR 2X24V 12V 24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 12V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 20 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHEK#-00AC/DC CNVRTR 2X24V 12V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 12V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 20 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHH#C-00AC/DC CONVERTER 3X24V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHH#E-00AC/DC CONVERTER 3X24V 12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHH#H-00AC/DC CONVERTER 4X24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHH#K-00AC/DC CONVERTER 3X24V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHHC#-00AC/DC CONVERTER 3X24V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHHE#-00AC/DC CONVERTER 3X24V 12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHHH#-00AC/DC CONVERTER 4X24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHHK#-00AC/DC CONVERTER 3X24V 48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHK#C-00AC/DC CNVRTR 2X24V 48V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 48V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHK#E-00AC/DC CNVRTR 2X24V 48V 12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 48V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHK#H-00AC/DC CNVRTR 2X24V 48V 24V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 48V | 960W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
EPS-15-24AC/DC CONVERTER 24V 15W |
9,907 | - |
|
数据表 |
EPS-15 (15W) | Box | Active | Open Frame | 1 | 24V | - | - | 15W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 625 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.94" H (63.5mm x 45.7mm x 24.0mm) | ||
|
NMP1K2-#HHK#K-00AC/DC CONVERTER 2X24V 2X48V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 48V | 960W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|

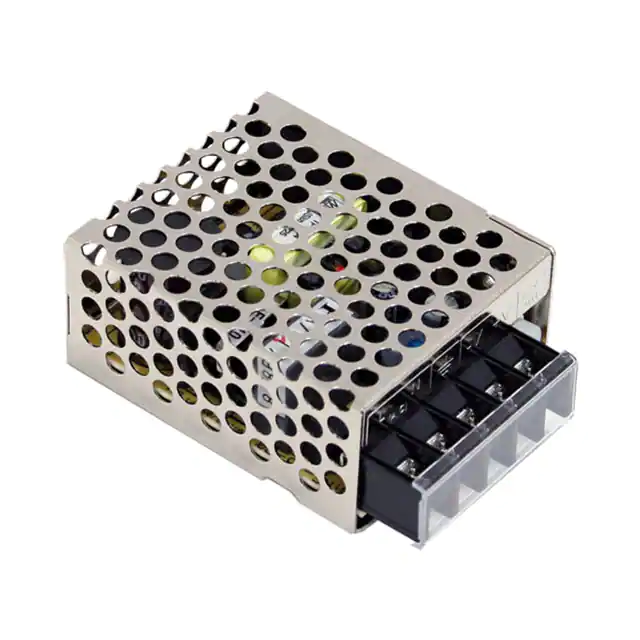

RS-15-12AC/DC CONVERTER 12V 16W |
1,154 | - |
|
数据表 |
RS-15 (15W) | Box | Active | Enclosed | 1 | 12V | - | - | 16W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.46" L x 2.01" W x 1.10" H (62.5mm x 51.0mm x 28.0mm) | ||
|
NMP1K2-#HHKC#-00AC/DC CNVRTR 2X24V 48V 5V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 48V | 900W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#HHKE#-00AC/DC CNVRTR 2X24V 48V 12V 960W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 24V | 24V | 48V | 960W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
RS-15-5AC/DC CONVERTER 5V 15W |
346 | - |
|
数据表 |
RS-15 (15W) | Box | Active | Enclosed | 1 | 5V | - | - | 15W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.46" L x 2.01" W x 1.10" H (62.5mm x 51.0mm x 28.0mm) | ||
|
RS-15-24AC/DC CONVERTER 24V 15W |
316 | - |
|
数据表 |
RS-15 (15W) | Box | Active | Enclosed | 1 | 24V | - | - | 15W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 625 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.46" L x 2.01" W x 1.10" H (62.5mm x 51.0mm x 28.0mm) |
