交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFP650-12BS101GAC/DC CONVERTER 12V 650W |
0 | - |
|
数据表 |
SFP650 (650W) | Bulk | Obsolete | Front End | 1 | 12V | - | - | 650W | - | - | 90 ~ 264 VAC | - | 53 A | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 50°C | Adjustable Output, I2C Interface, Load Sharing, PFC, Standby Output, Universal Input | Chassis Mount | 12.38" L x 3.07" W x 1.57" H (314.5mm x 78.0mm x 40.0mm) | ||
|
GLM65AGAC/DC CONVERTER 5V +/-12V 65W |
0 | - |
|
数据表 |
GLM65 (65W) | Bulk | Obsolete | Open Frame | 3 | 5V | 12V | -12V | 65W | - | - | 90 ~ 264 VAC | - | 7 A | - | 3 A | Medical | - | 2.5 A | - | - | 0°C ~ 50°C | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
GLM65BGAC/DC CONVERTER 5.1V +/-15V 65W |
0 | - |
|
数据表 |
GLM65 (65W) | Bulk | Obsolete | Open Frame | 3 | 5.1V | 15V | -15V | 65W | - | - | 90 ~ 264 VAC | - | 7 A | - | 2.5 A | Medical | - | 2 A | - | - | 0°C ~ 50°C | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
GPM225-24GAC/DC CONVERTER 24V 175W |
0 | - |
|
数据表 |
GPM225 (225W) | Bulk | Obsolete | Open Frame | 1 | 24V | - | - | 175W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.3 A | - | - | Medical | - | - | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 9.00" L x 5.00" W x 2.50" H (228.6mm x 127.0mm x 63.5mm) | ||
|
GPM40-5GAC/DC CONVERTER 5V 40W |
0 | - |
|
数据表 |
GPM40 (40W) | Bulk | Obsolete | Open Frame | 1 | 5V | - | - | 40W (50W Forced Air) | - | - | 85 ~ 264 VAC | - | 8 A | - | - | Medical | - | - | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) | ||
|
UCP225PS12AC/DC CONVERTER 12V 150W |
0 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) | ||
|
|
UCP225PS15AC/DC CONVERTER 15V 150W |
0 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) | ||
|
|
UCP225PS24AC/DC CONVERTER 24V 150W |
0 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) | ||
|
|
UCP225PS28AC/DC CONVERTER 28V 150W |
0 | - |
|
数据表 |
UCP225 (225W) | Box | Obsolete | Open Frame | 1 | 28V | - | - | 150W (225W Forced Air) | - | - | 85 ~ 264 VAC | - | 5.36 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.12" W x 1.18" H (127.0mm x 79.2mm x 29.2mm) | ||
|
|
96PS-A150WFX-1AC/DC CNVT 5V 2X12V 5V 2X3.3V |
0 | - |
|
数据表 |
PS-A150W (150W) | Bulk | Obsolete | Enclosed | 4 | 5V | 12V | 12V | 232W | 3.3V | - | 90 ~ 264 VAC | - | 13 A | - | 10 A | ITE (Commercial) | - | 300 mA | 10 A | - | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Chassis Mount | 5.91" L x 3.21" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) | ||
|

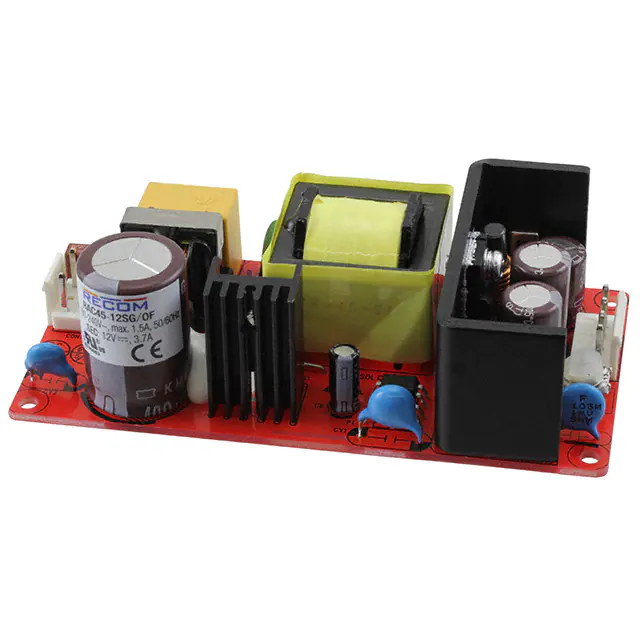

RAC45-12SG/OFAC/DC CONVERTER 12V 44W |
0 | - |
|
数据表 |
POWERLINE RAC45-G/OF (45W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 44W | - | - | 90 ~ 264 VAC | - | 3.7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.01" W x 1.10" H (101.6mm x 51.0mm x 28.0mm) | ||
|
RAC45-24SG/OFAC/DC CONVERTER 24V 46W |
0 | - |
|
数据表 |
POWERLINE RAC45-G/OF (45W) | Box | Obsolete | Open Frame | 1 | 24V | - | - | 46W | - | - | 90 ~ 264 VAC | - | 1.9 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.01" W x 1.10" H (101.6mm x 51.0mm x 28.0mm) | ||
|
|
FL4-13-6933AC/DC CONVERTER 500W |
0 | - |
|
数据表 |
FlatPAC-EN™ | Bulk | Obsolete | Enclosed | 4 | - | - | - | 500W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC | - | - | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C | DC Input Capable | Rack Mount | 9.20" L x 5.00" W x 1.40" H (233.7mm x 127.0mm x 35.6mm) | ||
|
|
VS100E-5AC/DC CONVERTER 5V 100W |
0 | - |
|
数据表 |
VS-E (100W) | Bulk | Active | Enclosed | 1 | 5V | - | - | 100W | - | - | 85 ~ 132 VAC | - | 20 A | - | - | ITE (Commercial) | - | - | - | 2 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 6.10" L x 2.44" W x 1.14" H (155.0mm x 62.0mm x 29.0mm) | ||
|
|
VS150E-5AC/DC CONVERTER 5V 150W |
0 | - |
|
数据表 |
VSB (150W) | Bulk | Active | Open Frame | 1 | 5V | - | - | 150W | - | - | 85 ~ 132 VAC | - | 30 A | - | - | ITE (Commercial) | - | - | - | 2.5 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 8.74" L x 2.95" W x 1.42" H (222.0mm x 75.0mm x 36.0mm) | ||
|
|
ZWS150BP-24/LAC/DC CONVERTER 24V 150W |
0 | - |
|
数据表 |
ZWS-BP (150W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 150W | - | - | 85 ~ 265 VAC | - | 6.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) | ||
|
|
ZWS150BP-36/TAC/DC CONVERTER 36V 150W |
0 | - |
|
数据表 |
ZWS-BP (150W) | Bulk | Active | Open Frame | 1 | 36V | - | - | 150W | - | - | 85 ~ 265 VAC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) | ||
|
|
ZWS150BP-36/TLAC/DC CONVERTER 36V 150W |
0 | - |
|
数据表 |
ZWS-BP (150W) | Bulk | Active | Open Frame | 1 | 36V | - | - | 150W | - | - | 85 ~ 265 VAC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 75.0mm x 37.0mm) | ||
|

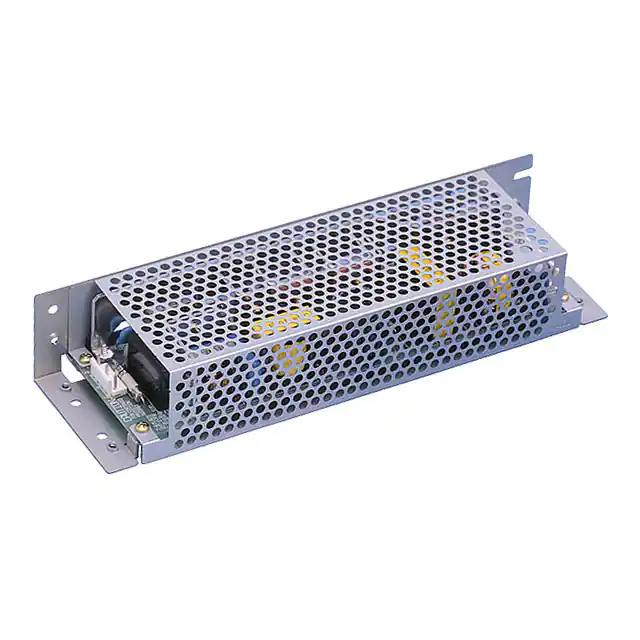

LEA100F-12AC/DC CONVERTER 12V 100W |
0 | - |
|
数据表 |
LEA (100W) | Box | Obsolete | Open Frame | 1 | 12V | - | - | 100W | - | - | 85 ~ 264 VAC | - | 8.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) | ||
|
|
LEA100F-24-SNAC/DC CONVERTER 24V 100W |
0 | - |
|
数据表 |
LEA (100W) | Box | Obsolete | Enclosed | 1 | 24V | - | - | 100W | - | - | 85 ~ 264 VAC | - | 4.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.26" H (222.0mm x 62.0mm x 32.0mm) |
