交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM2660-7AC/DC CONVERTER 2X24V 50W |
0 | - |
|
数据表 |
Melcher M (50W) | Bulk | Active | Enclosed, Conformal Coated | 2 | 24V | 24V | - | 50W | - | - | 85 ~ 264 VAC | - | 1 A | - | 1 A | ITE (Commercial), Railway | - | - | - | 4 kV | -25°C ~ 71°C (With Derating) | DC Input Capable, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.63" L x 4.38" W x 1.52" H (168.5mm x 111.2mm x 38.7mm) | ||
|
LM3020-9EAC/DC CONVERTER 5.1V 2X12V 50W |
0 | - |
|
数据表 |
Melcher M (50W) | Bulk | Active | Enclosed, Conformal Coated | 3 | 5.1V | 12V | 12V | 50W | - | - | 85 ~ 264 VAC | - | 5 A | - | 700 mA | ITE (Commercial), Railway | - | 700 mA | - | 4 kV | -40°C ~ 71°C (With Derating) | DC Input Capable, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.60" L x 4.37" W x 1.54" H (168.0mm x 111.0mm x 39.0mm) | ||
|
LS1301-9EPAC/DC CONVERTER 12V 96W |
0 | - |
|
数据表 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 12V | - | - | 96W | - | - | 85 ~ 264 VAC, 88 ~ 372 VDC | - | 8 A | - | - | ITE (Commercial), Railway | - | - | - | 2 kV | -40°C ~ 71°C | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) | ||
|
LS1601-9EPAC/DC CONVERTER 24V 101W |
0 | - |
|
数据表 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 24V | - | - | 101W | - | - | 85 ~ 264 VAC, 88 ~ 372 VDC | - | 4.2 A | - | - | ITE (Commercial), Railway | - | - | - | 2 kV | -40°C ~ 71°C | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) | ||
|
LS1601-9ERAC/DC CONVERTER 24V 101W |
0 | - |
|
数据表 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 24V | - | - | 101W | - | - | 85 ~ 264 VAC, 88 ~ 372 VDC | - | 4.2 A | - | - | ITE (Commercial), Railway | - | - | - | 2 kV | -40°C ~ 71°C | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) | ||
|
LS2320-9ERB1GAC/DC CONVERTER 2X12V 101W |
0 | - |
|
数据表 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 2 | 12V | 12V | - | 101W | - | - | 85 ~ 264 VAC, 88 ~ 372 VDC | - | 4 A | - | 4 A | ITE (Commercial), Railway | - | - | - | 2 kV | -40°C ~ 71°C | Adjustable Output, Baseplate, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) | ||
|
LS4301-7ERAC/DC CONVERTER 12V 96W |
0 | - |
|
数据表 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 12V | - | - | 96W | - | - | 85 ~ 264 VAC | - | 8 A | - | - | ITE (Commercial) | - | - | - | 2.8 kV | -25°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) | ||
|
LS4601-9ERAC/DC CONVERTER 24V 101W |
0 | - |
|
数据表 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 24V | - | - | 101W | - | - | 85 ~ 264 VAC | - | 4.2 A | - | - | ITE (Commercial) | - | - | - | 2.8 kV | -40°C ~ 71°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) | ||
|
MAP40-1005CAC/DC CONVERTER 5V 40W |
0 | - |
|
数据表 |
MAP40 (40W) | Bulk | Obsolete | Enclosed | 1 | 5V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 8 A | - | - | ITE (Commercial) | - | - | - | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
MPB125-2005DAC/DC CONVERTER 5V 12V 70W |
0 | - |
|
数据表 |
MPB125 (125W) | Bulk | Active | Open Frame | 2 | 5V | 12V | - | 70W (125W Forced Air) | - | - | 90 ~ 264 VAC | - | 25 A | - | 500 mA | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
MPB125-2005S318GAC/DC CONVERTER 5V 12V 70W |
0 | - |
|
数据表 |
MPB125 (125W) | Bulk | Active | Open Frame | 2 | 5V | 12V | - | 70W (125W Forced Air) | - | - | 90 ~ 264 VAC | - | 25 A | - | 500 mA | ITE (Commercial) | - | - | - | 3 kV | 0°C ~ 70°C (With Derating) | PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) | ||
|
HWS30-12AC/DC CONVERTER 12V 30W |
0 | - |
|
数据表 |
HWS (30W) | Bulk | Obsolete | Open Frame | 1 | 12V | - | - | 30W | - | - | 85 ~ 265 VAC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.74" L x 1.04" W x 3.23" H (95.0mm x 26.4mm x 82.0mm) | ||
|
|
JWS240P-36AC/DC CONVERTER 36V 240W |
0 | - |
|
数据表 |
JWS-P (240W) | Bulk | Obsolete | Enclosed | 1 | 36V | - | - | 240W | - | - | 85 ~ 265 VAC | - | 6.65 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 65°C | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.48" L x 4.72" W x 3.62" H (190.0mm x 119.9mm x 92.0mm) | ||
|
|
JWS600-8AC/DC CONVERTER 8V 600W |
0 | - |
|
数据表 |
JWS (600W) | Bulk | Obsolete | Enclosed | 1 | 8V | - | - | 600W | - | - | 85 ~ 265 VAC | - | 68 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.90" L x 6.29" W x 3.62" H (200.6mm x 159.8mm x 92.0mm) | ||
|
|

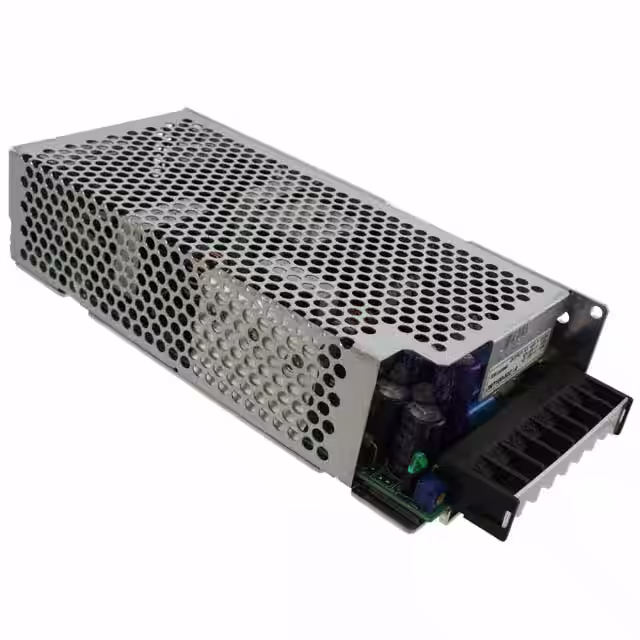

JWT100-522/BAC/DC CONVERTER 5V +/-12V 100W |
0 | - |
|
数据表 |
JWT (100W) | Bulk | Obsolete | Open Frame | 3 | 5V | 12V | -12V | 100W | - | - | 85 ~ 265 VAC | - | 13 A | - | 5.5 A | ITE (Commercial) | - | 1 A | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.99" L x 3.62" W x 1.89" H (203.0mm x 92.0mm x 48.0mm) | ||
|
|
JWT100-525/CAC/DC CONVERTER 5V 12V -5V 100W |
0 | - |
|
数据表 |
JWT (100W) | Bulk | Obsolete | Enclosed | 3 | 5V | 12V | -5V | 100W | - | - | 85 ~ 265 VAC | - | 13 A | - | 5.5 A | ITE (Commercial) | - | 1 A | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.99" L x 3.62" W x 1.89" H (203.0mm x 92.0mm x 48.0mm) | ||
|
|
JWT100-525/RBAC/DC CONVERTER 5V 12V -5V 100W |
0 | - |
|
数据表 |
JWT (100W) | Bulk | Obsolete | Open Frame | 3 | 5V | 12V | -5V | 100W | - | - | 85 ~ 265 VAC | - | 13 A | - | 5.5 A | ITE (Commercial) | - | 1 A | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.99" L x 3.62" W x 1.89" H (203.0mm x 92.0mm x 48.0mm) | ||
|
|
JWT100-5FF/BAC/DC CONVERTER 5V +/-15V 100W |
0 | - |
|
数据表 |
JWT (100W) | Bulk | Obsolete | Open Frame | 3 | 5V | 15V | -15V | 100W | - | - | 85 ~ 265 VAC | - | 13 A | - | 4.5 A | ITE (Commercial) | - | 1 A | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.99" L x 3.62" W x 1.89" H (203.0mm x 92.0mm x 48.0mm) | ||
|
|
JWT100-5FF/CAC/DC CONVERTER 5V +/-15V 100W |
0 | - |
|
数据表 |
JWT (100W) | Bulk | Obsolete | Enclosed | 3 | 5V | 15V | -15V | 100W | - | - | 85 ~ 265 VAC | - | 13 A | - | 4.5 A | ITE (Commercial) | - | 1 A | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.99" L x 3.62" W x 1.89" H (203.0mm x 92.0mm x 48.0mm) | ||
|
|
JWT100-5FF/RCAC/DC CONVERTER 5V +/-15V 100W |
0 | - |
|
数据表 |
JWT (100W) | Bulk | Obsolete | Enclosed | 3 | 5V | 15V | -15V | 100W | - | - | 85 ~ 265 VAC | - | 13 A | - | 4.5 A | ITE (Commercial) | - | 1 A | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.99" L x 3.62" W x 1.89" H (203.0mm x 92.0mm x 48.0mm) |
