交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPG300-0012-CKFPOWER SUPPLY EPG300-0012-CKF Bel Power Solutions |
0 | - |
|
数据表 |
EPG300 (300W) | Box | Active | Enclosed | 1 | 12V | - | - | 180W (250 Forced Air) | - | - | 90 ~ 264 VAC | - | 20.84 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, PFC, Universal Input | Chassis Mount | 4.47" L x 2.56" W x 2.81" H (113.5mm x 65.0mm x 71.4mm) |
|
|
EPG300-0312-CKFPOWER SUPPLY EPG300-0312-CKF Bel Power Solutions |
0 | - |
|
数据表 |
EPG300 (300W) | Box | Active | Enclosed | 1 | 12V | - | - | 180W (216 Forced Air) | - | - | 90 ~ 264 VAC | - | 18 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, PFC, Universal Input | Chassis Mount | 4.47" L x 2.56" W x 2.81" H (113.5mm x 65.0mm x 71.4mm) |
|
MBC450-1T05GAC/DC CONVERTER 5V 155/275W Bel Power Solutions |
0 | - |
|
数据表 |
MBC450 (450W) | Box | Obsolete | Open Frame | 1 | 5V | - | - | 155W (275W Forced Air) | - | - | 90 ~ 264 VAC | - | 55 A | - | - | Medical | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm) |
|
MBC450-1T15GAC/DC CONVERTER 15V 250/450W Bel Power Solutions |
0 | - |
|
数据表 |
MBC450 (450W) | Box | Obsolete | Open Frame | 1 | 15V | - | - | 250W (450W Forced Air) | - | - | 90 ~ 264 VAC | - | 30 A | - | - | Medical | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm) |
|

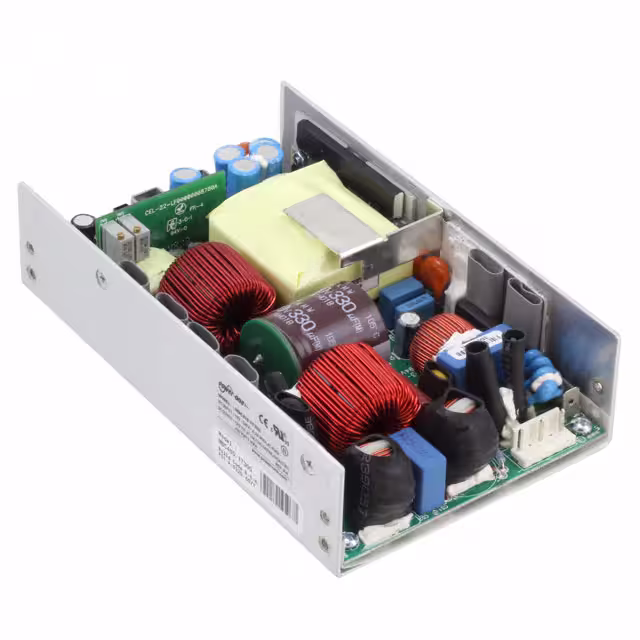

MBC450-1T30GAC/DC CONVERTER 30V 300/450W Bel Power Solutions |
0 | - |
|
数据表 |
MBC450 (450W) | Box | Obsolete | Open Frame | 1 | 30V | - | - | 300W (450W Forced Air) | - | - | 90 ~ 264 VAC | - | 15 A | - | - | Medical | - | - | - | 4.242 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.50" L x 4.00" W x 1.61" H (165.1mm x 101.6mm x 41.0mm) |
|
|
MEPG300-1048-CKFPOWER SUPPLY MEPG300-1048-CKF Bel Power Solutions |
0 | - |
|
数据表 |
MEPG300 (300W) | Box | Active | Enclosed | 1 | 48V | - | - | 200W (300 Forced Air) | - | - | 90 ~ 264 VAC | - | 6.25 A | - | - | Medical | - | - | - | 4.4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.47" L x 2.56" W x 2.81" H (113.5mm x 65.0mm x 71.4mm) |
|
|
MEPG300-1358-CKPOWER SUPPLY MEPG300-1358-CK Bel Power Solutions |
0 | - |
|
数据表 |
MEPG300 (300W) | Box | Active | Enclosed | 1 | 58V | - | - | 200W (300 Forced Air) | - | - | 90 ~ 264 VAC | - | 5.17 A | - | - | Medical | - | - | - | 4.4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.47" L x 2.56" W x 2.17" H (113.5mm x 65.0mm x 55.1mm) |
|
|
MEPG300-1058-CKFPOWER SUPPLY MEPG300-1058-CKF Bel Power Solutions |
0 | - |
|
数据表 |
MEPG300 (300W) | Box | Active | Enclosed | 1 | 58V | - | - | 200W (300 Forced Air) | - | - | 90 ~ 264 VAC | - | 5.17 A | - | - | Medical | - | - | - | 4.4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.47" L x 2.56" W x 2.81" H (113.5mm x 65.0mm x 71.4mm) |
|
|
MEPG300-1348-CKPOWER SUPPLY MEPG300-1348-CK Bel Power Solutions |
0 | - |
|
数据表 |
MEPG300 (300W) | Box | Active | Enclosed | 1 | 48V | - | - | 200W (300 Forced Air) | - | - | 90 ~ 264 VAC | - | 6.25 A | - | - | Medical | - | - | - | 4.4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.47" L x 2.56" W x 2.17" H (113.5mm x 65.0mm x 55.1mm) |
|
MAP42-1024AC/DC CONVERTER 24V 40W Bel Power Solutions |
0 | - |
|
数据表 |
MAP42 (42W) | Bulk | Obsolete | Open Frame | 1 | 24V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 1.7 A | - | - | ITE (Commercial) | - | - | - | 2.6 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.25" H (127.0mm x 76.2mm x 31.8mm) |
