| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBS601-1T48-SLAC/DC CONVERTER 48V 600W Bel Power Solutions |
0 | - |
|
数据表 |
MBS601 (600W) | Box | Active | Enclosed | 1 | 48V | - | - | 600W | - | - | 85 ~ 305 VAC, 170 ~ 300 VDC | - | 12.5 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 9.84" L x 4.92" W x 2.36" H (250.0mm x 125.0mm x 60.0mm) |
|
LM1001-9RGAC/DC CONVERTER 5.1V 50W Bel Power Solutions |
1 | - |
|
数据表 |
Melcher M (50W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 5.1V | - | - | 50W | - | - | 85 ~ 264 VAC | - | 8 A | - | - | ITE (Commercial), Railway | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 3.20" H (168.0mm x 111.0mm x 80.0mm) |
|
TEC2700-12-074NACRPS AC-DC POWER SUPPLY POWER 2 Bel Power Solutions |
0 | - |
|
数据表 |
- | Box | Active | Front End | 1 | 12V | - | - | 2.7kW | - | - | 90 ~ 264 VAC, 180 ~ 320 VDC | - | 221.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -5°C ~ 55°C | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Rack Mount | 7.28" L x 2.89" W x 1.57" H (185.0mm x 73.5mm x 40.0mm) |
|
LS1601-9ERGAC/DC CONVERTER 24V 101W Bel Power Solutions |
0 | - |
|
数据表 |
Melcher S (100W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 24V | - | - | 101W | - | - | 85 ~ 264 VAC, 88 ~ 372 VDC | - | 4.2 A | - | - | ITE (Commercial), Railway | - | - | - | 2 kV | -40°C ~ 71°C | Adjustable Output, Remote On/Off, Universal Input | Chassis Mount | 6.60" L x 4.40" W x 2.40" H (168.0mm x 111.0mm x 60.0mm) |
|
TEC3200-12-074NACRPS AC-DC POWER SUPPLY POWER 2 Bel Power Solutions |
0 | - |
|
数据表 |
- | Box | Active | Front End | 1 | 12V | - | - | 3.2kW | - | - | 90 ~ 264 VAC, 180 ~ 320 VDC | - | 262.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -5°C ~ 55°C | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense, Universal Input | Rack Mount | 7.28" L x 2.89" W x 1.57" H (185.0mm x 73.5mm x 40.0mm) |
|
TET3600-48-104RAAC/DC CONVERTER 48V 3600W Bel Power Solutions |
0 | - |
|
数据表 |
TET3600 (3600W) | Box | Active | Front End | 1 | 48V | - | - | 3600W | - | - | 90 ~ 305 VAC, 192 ~ 400 VDC | - | 75 A | - | - | ITE (Commercial) | - | - | - | 5 kV | 0°C ~ 45°C | DC Input Capable, Load Sharing, PFC, Standby Output | Rack Mount | 10.07" L x 4.08" W x 1.57" H (255.8mm x 103.6mm x 40.0mm) |
|
|
HB5-3/OVP-AGAC/DC CONVERTER 5V 15W Bel Power Solutions |
232 | - |
|
数据表 |
Linear B | Bulk | Active | Linear | 1 | 5V | - | - | 15W | - | - | 100, 120, 220, 230, 240 VAC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 4.87" L x 4.00" W x 2.10" H (123.7mm x 101.6mm x 53.3mm) |
|
|
HAD15-0.4-AGAC/DC CONVERTER +/-15V 12W Bel Power Solutions |
152 | - |
|
数据表 |
Linear B | Bulk | Active | Linear | 2 | 15V | -15V | - | 12W | - | - | 100, 120, 220, 230, 240 VAC | - | 400 mA | - | 400 mA | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 4.87" L x 4.00" W x 2.10" H (123.7mm x 101.6mm x 53.3mm) |
|
|
HB24-1.2-AGAC/DC CONVERTER 24V 29W Bel Power Solutions |
288 | - |
|
数据表 |
Linear B | Bulk | Active | Linear | 1 | 24V | - | - | 29W | - | - | 100, 120, 220, 230, 240 VAC | - | 1.2 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 4.87" L x 4.00" W x 2.10" H (123.7mm x 101.6mm x 53.3mm) |
|
|

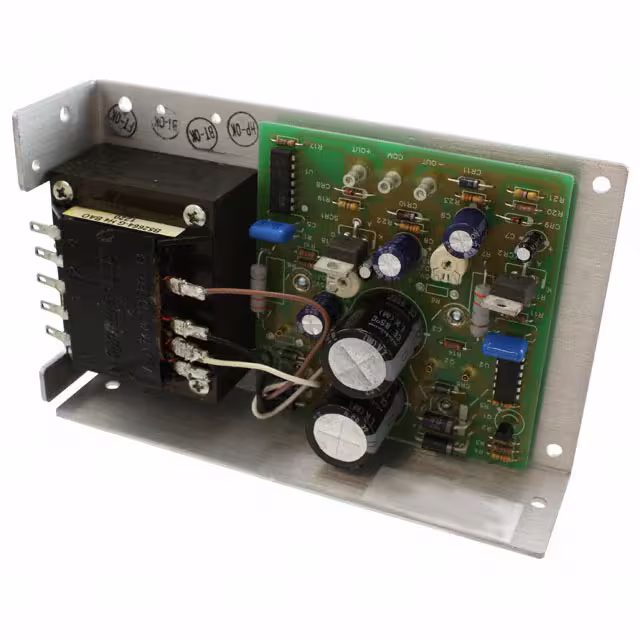

HAA5-1.5/OVP-AGAC/DC CONVERTER +/-5V 15W Bel Power Solutions |
145 | - |
|
数据表 |
Linear AA | Bulk | Active | Linear | 2 | 5V | -5V | - | 15W | - | - | 100, 120, 220, 230, 240 VAC | - | 1.5 A | - | 1.5 A | ITE (Commercial) | - | - | - | 4.242 kV | 0°C ~ 50°C | Adjustable Output, Remote Sense | Chassis Mount | 6.50" L x 4.00" W x 1.62" H (165.1mm x 101.6mm x 41.2mm) |
