交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LM75-23B12R2-CAC/DC CONVERTER 12V 72W |
18 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 72W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LO65-20B48MUOPEN FRAME AC DC CONVERTERS 65W |
36 | - |
|
数据表 |
LO65-20BxxMU (65W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 65W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 1.36 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | ||
|
LO65-20B12MUOPEN FRAME AC DC CONVERTERS 65W |
36 | - |
|
数据表 |
LO65-20BxxMU (65W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 65W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 5.42 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) | ||
|
GB30S07P01AC/DC CONVERTER 7.5V 23W |
86 | - |
|
数据表 |
GB30S (30W) | Box | Active | Open Frame | 1 | 7.5V | - | - | 23W | - | - | 90 ~ 264 VAC | - | 3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.62" L x 1.89" W x 0.82" H (91.9mm x 48.0mm x 20.9mm) | ||
|
VGS-50C-15AC/DC CONVERTER 15V 51W |
69 | - |
|
数据表 |
VGS-50C | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 51W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 3.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM75-23B24R2-CQAC/DC CONVERTER 24V 77W |
27 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 77W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 3.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM75-23B54R2-CQAC/DC CONVERTER 54V 76W |
24 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 54V | - | - | 76W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 1.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM35-23B24AC/DC CONVERTER 24V 36W |
40 | - |
|
数据表 |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 36W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 1.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LM100-23B54R2AC/DC CONVERTER 54V 103W |
23 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 54V | - | - | 103W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 1.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM100-23B05R2AC/DC CONVERTER 5V 90W |
20 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 90W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 18 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM100-23B15R2AC/DC CONVERTER 15V 105W |
19 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 15V | - | - | 105W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM100-23B12R2AC/DC CONVERTER 12V 102W |
15 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 102W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 8.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
LM100-23B24R2AC/DC CONVERTER 24V 108W |
7 | - |
|
数据表 |
LM-R2 | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 108W | - | - | 80 ~ 305 VAC, 100 ~ 430 VDC | - | 4.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | ||
|
35ACPE_12S4ENCLOSED AC DC CONVERTERS 1 OUTP |
68 | - |
|
数据表 |
35ACPE_4 s (35W) | Retail Package | Obsolete | Enclosed | 1 | 12V | - | - | 36W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.22" W x 1.18" H (99.0mm x 81.9mm x 29.9mm) | ||
|

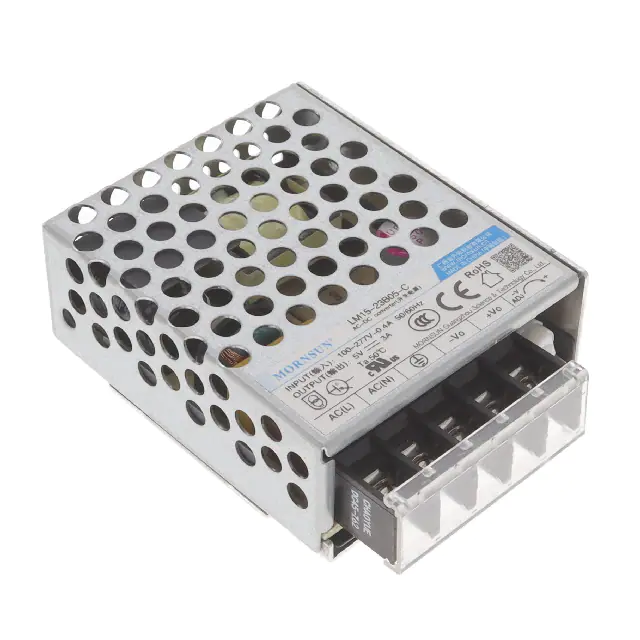

LM15-23B05-CAC/DC CONVERTER 5V 15W |
49 | - |
|
数据表 |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
LM15-23B12-QAC/DC CONVERTER 12V 16W |
30 | - |
|
数据表 |
LM15-23Bxx-Q (15W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 16W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
LM15-23B12-CAC/DC CONVERTER 12V 16W |
22 | - |
|
数据表 |
LM15-23Bxx-C (15W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 16W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) | ||
|
VGS-50C-5AC/DC CONVERTER 5V 50W |
72 | - |
|
数据表 |
VGS-50C | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 50W | - | - | 85 ~ 264 VAC, 120 ~ 373 VDC | - | 10 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | ||
|
LO30-23B24EAC/DC CONVERTER 24V 31W |
33 | - |
|
数据表 |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 31W | - | - | 85 ~ 305 VAC, 88 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) | ||
|
LO30-23B12EAC/DC CONVERTER 12V 30W |
24 | - |
|
数据表 |
LO30-23BxxE (30W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 30W | - | - | 85 ~ 305 VAC, 88 ~ 430 VDC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 4.13" L x 1.97" W x 1.18" H (105.0mm x 50.0mm x 30.0mm) |
