交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NMP1K2-#CEKK#-00AC/DC CNVRTR 5V 12V 2X48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 12V | 48V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 20 A | ITE (Commercial), Medical | - | 5 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#CH#CC-00AC/DC CONVERTER 5V 24V 2X5V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 5V | 780W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 36 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#CH#CE-00AC/DC CNVRTR 5V 24V 5V 12V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 5V | 840W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 36 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
NMP1K2-#CH#CH-00AC/DC CNVRTR 5V 24V 5V 24V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 5V | 840W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 36 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
LOP-200-1580-264VAC O/P +15V9.4A |
0 | - |
|
数据表 |
LOP-200 (200W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 141W (200W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 9.4 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) | ||
|
ZWS30B-24/AAC/DC CONVERTER 24V 31W |
2 | - |
|
数据表 |
ZWS30B (30W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 31W | - | - | 85 ~ 265 VAC, 120 ~ 370 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.24" L x 2.17" W x 1.02" H (133.0mm x 55.0mm x 26.0mm) | ||
|
ECM40US33AC/DC CONVERTER 33V 40W |
1 | - |
|
数据表 |
ECM (40W) | Bulk | Active | Open Frame | 1 | 33V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 1.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|
ECM40US07AC/DC CONVERTER 7V 40W |
0 | - |
|
数据表 |
ECM (40W) | Bulk | Active | Open Frame | 1 | 7V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 5.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|
ECM40US18AC/DC CONVERTER 18V 40W |
0 | - |
|
数据表 |
ECM (40W) | Bulk | Active | Open Frame | 1 | 18V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 2.2 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) | ||
|
HRP-75-15AC/DC CONVERTER 15V 75W |
5 | - |
|
数据表 |
HRP-75 (75W) | Box | Active | Enclosed | 1 | 15V | - | - | 75W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) | ||
|

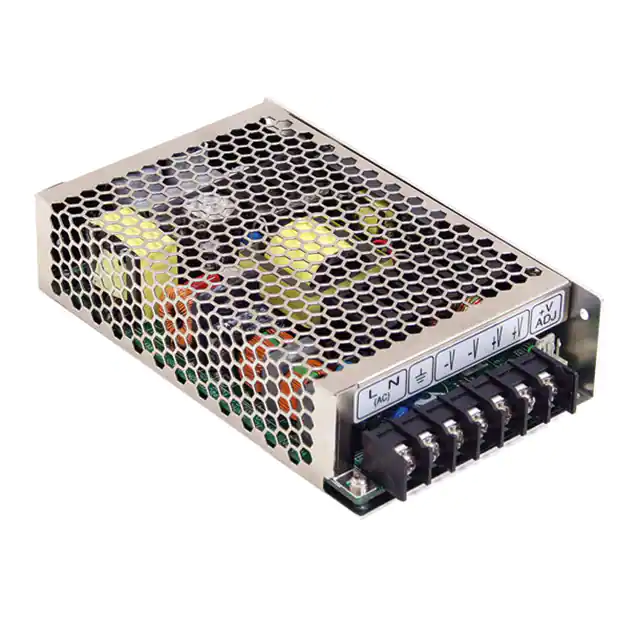

HRP-100-36AC/DC CONVERTER 36V 104W |
2 | - |
|
数据表 |
HRP-100 (100W) | Box | Active | Enclosed | 1 | 36V | - | - | 104W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.9 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | ||
|
HRP-100-24AC/DC CONVERTER 24V 108W |
1 | - |
|
数据表 |
HRP-100 (100W) | Box | Active | Enclosed | 1 | 24V | - | - | 108W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 4.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | ||
|
HRP-100-7.5AC/DC CONVERTER 7.5V 101W |
1 | - |
|
数据表 |
HRP-100 (100W) | Box | Active | Enclosed | 1 | 7.5V | - | - | 101W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 13.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | ||
|
HRP-100-5AC/DC CONVERTER 5V 85W |
0 | - |
|
数据表 |
HRP-100 (100W) | Box | Active | Enclosed | 1 | 5V | - | - | 85W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 17 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | ||
|
LAD-360CAC/DC CONVERTER 41.5V 359W |
0 | - |
|
数据表 |
LAD-360 (360W) | Box | Active | Enclosed | 2 | 41.5V | - | - | 359W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC | - | 7.14 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, IP67, PFC, PMBus™, Remote On/Off | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
NEVO+600M-8043-DK000AC/DC CNVRTR 2X24V 48V 24V 300W |
0 | - |
|
数据表 |
NEVO+600M | Box | Active | Enclosed | 4 | 24V | 24V | 48V | 300W | 24V | - | 85 ~ 264 VAC, 120 ~ 300 VDC | - | 3.125 A | - | 3.125 A | Medical | - | 3.75 A | 7.5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 5.27" L x 3.06" W x 1.61" H (133.8mm x 77.7mm x 41.0mm) | ||
|

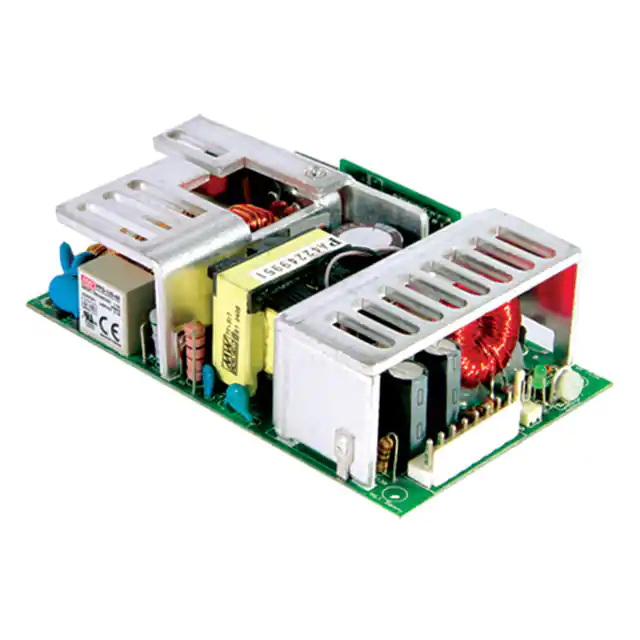

PPT-125AAC/DC CONVERTER 3.3V 5V 12V 79W |
1 | - |
|
数据表 |
PPT-125 (125W) | Box | Active | Open Frame | 3 | 3.3V | 5V | 12V | 79W (99W Forced Air) | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 10 A | - | 8 A | ITE (Commercial) | - | 500 mA | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.6mm) | ||
|
LMF320-23B48AC/DC CONVERTER 48V 322W |
0 | - |
|
数据表 |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 322W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 6.7 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
NEVO+600M-5085-DK000AC/DC CNV 2X12V 24V 24V 2X12V |
0 | - |
|
数据表 |
NEVO+600M | Box | Active | Enclosed | 6 | 12V | 12V | 24V | 300W | 24V | 12V | 85 ~ 264 VAC, 120 ~ 300 VDC | 12V | 5 A | 5 A | 5 A | Medical | 5 A | 3.125 A | 3.125 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 5.27" L x 3.06" W x 1.61" H (133.8mm x 77.7mm x 41.0mm) | ||
|
RPS-200-48-CAC/DC CONVERTER 48V 144W |
0 | - |
|
数据表 |
RPS-200 (200W) | Box | Active | Enclosed | 1 | 48V | - | - | 144W (202W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 3 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.07" L x 2.44" W x 1.57" H (103.4mm x 62.0mm x 40.0mm) |
