交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMMK150S-24EAC/DC CONVERTER 24V 151W Astrodyne TDI |
21 | - |
|
数据表 |
PMMK150U (151W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 151W | - | - | 90 ~ 264 VAC | - | 6.3 A | - | - | Medical | - | - | - | 5.656 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.50" L x 3.17" W x 1.60" H (139.7mm x 80.5mm x 40.6mm) |
|
|
PMMX300S-36EAC/DC CONVERTER 36V 300W Astrodyne TDI |
20 | - |
|
数据表 |
PMMX300S-E (300W) | Bulk | Active | Enclosed | 1 | 36V | - | - | 300W | - | - | 90 ~ 264 VAC | - | 8.33 A | - | - | Medical | - | - | - | 5.656 kV | -20°C ~ 60°C | Universal Input | Chassis Mount | 7.00" L x 4.00" W x 2.08" H (177.8mm x 101.6mm x 52.8mm) |
|
|
MDCC-0307AC/DC CONVERTER +/-15V 30W Astrodyne TDI |
5 | - |
|
数据表 |
MCA-30 (30W) | Bulk | Active | Enclosed | 2 | 15V | -15V | - | 30W | - | - | 90 ~ 264 VAC | - | 1 A | - | 1 A | ITE (Commercial), Medical | - | - | - | 3 kV | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.76" L x 2.56" W x 1.00" H (120.9mm x 65.0mm x 25.4mm) |
|
|
PMK150S-15AC/DC CONVERTER 15V 150W Astrodyne TDI |
22 | - |
|
数据表 |
PMK150 (150W) | Bulk | Active | Open Frame | 1 | 15V | - | - | 150W | - | - | 90 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | - |
|
|
PMK150S-24AC/DC CONVERTER 24V 151W Astrodyne TDI |
20 | - |
|
数据表 |
PMK150 (150W) | Bulk | Active | Open Frame | 1 | 24V | - | - | 151W | - | - | 90 ~ 264 VAC | - | 6.3 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | - |
|
|
PMK320S-48EAC/DC CONVERTER 48V 322W Astrodyne TDI |
24 | - |
|
数据表 |
PMK320E (322W) | Bulk | Active | Enclosed | 1 | 48V | - | - | 322W | - | - | 90 ~ 264 VAC | - | 6.7 A | - | - | ITE (Commercial) | - | - | - | 5.656 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | - |
|
|
MTCC-0311AC/DC CONVERTER 5V +/-15V 30W Astrodyne TDI |
13 | - |
|
数据表 |
MCA-30 (30W) | Bulk | Active | Enclosed | 3 | 5V | 15V | -15V | 30W | - | - | 90 ~ 264 VAC | - | 3 A | - | 500 mA | ITE (Commercial), Medical | - | 500 mA | - | 3 kV | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.76" L x 2.56" W x 1.00" H (120.9mm x 65.0mm x 25.4mm) |
|
|
MTCC-0309AC/DC CONVERTER 5V +/-12V 30W Astrodyne TDI |
5 | - |
|
数据表 |
MCA-30 (30W) | Bulk | Active | Enclosed | 3 | 5V | 12V | -12V | 30W | - | - | 90 ~ 264 VAC | - | 3 A | - | 630 mA | ITE (Commercial), Medical | - | 630 mA | - | 3 kV | 0°C ~ 50°C | Universal Input | Chassis Mount | 4.76" L x 2.56" W x 1.00" H (120.9mm x 65.0mm x 25.4mm) |
|

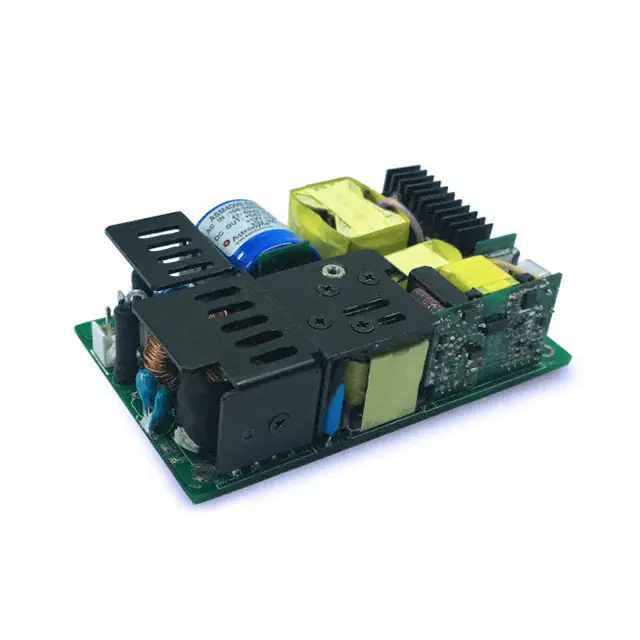

ASM400S-36AC/DC CONVERTER 36V 198W Astrodyne TDI |
11 | - |
|
数据表 |
ASM400S (400W) | Box | Active | Open Frame | 1 | 36V | - | - | 198W (400W Forced Air) | - | - | 90 ~ 264 VAC | - | 5.5 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|
ASM550-480-BET-S00AC/DC CONVERTER 48V 552W Astrodyne TDI |
24 | - |
|
数据表 |
ASM550 (550W) | Box | Active | Enclosed | 1 | 48V | - | - | 552W | - | - | 80 ~ 275 VAC, 110 ~ 380 VDC | - | 11.5 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.36" W x 1.58" H (177.8mm x 110.7mm x 40.1mm) |
