| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD03-23B05WR2AC/DC CONVERTER 5V 3W Mornsun America, LLC |
274 | - |
|
数据表 |
305RAC / LD-WR2 | Tray | Not For New Designs | Enclosed | 1 | 5V | - | - | 3W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 600 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) |
|
LD03-23B12WR2AC/DC CONVERTER 12V 3W Mornsun America, LLC |
122 | - |
|
数据表 |
305RAC / LD-WR2 | Tray | Not For New Designs | Enclosed | 1 | 12V | - | - | 3W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 250 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) |
|

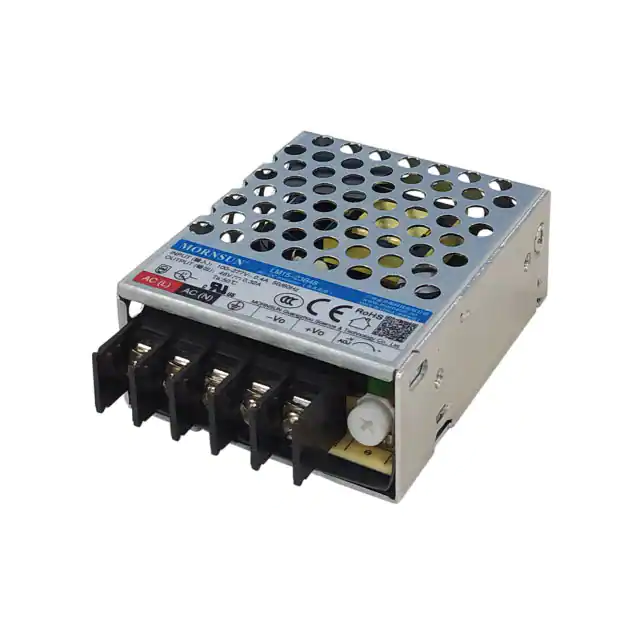

LM15-23B05AC/DC CONVERTER 5V 15W Mornsun America, LLC |
3,424 | - |
|
数据表 |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
LM15-23B12AC/DC CONVERTER 12V 16W Mornsun America, LLC |
307 | - |
|
数据表 |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 16W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1.3 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
LM15-23B24AC/DC CONVERTER 24V 15W Mornsun America, LLC |
336 | - |
|
数据表 |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 625 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
LM15-23B48AC/DC CONVERTER 48V 15W Mornsun America, LLC |
106 | - |
|
数据表 |
305RAC / LM-23B | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 15W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 320 mA | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 2.56" L x 2.17" W x 0.98" H (65.0mm x 55.0mm x 25.0mm) |
|
LD05-23B05WR2AC/DC CONVERTER 5V 5W Mornsun America, LLC |
229 | - |
|
数据表 |
305RAC / LD-WR2 | Tray | Not For New Designs | Enclosed | 1 | 5V | - | - | 5W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output | Chassis Mount | 1.00" L x 1.00" W x 0.69" H (25.4mm x 25.4mm x 17.6mm) |
|
LO15-10B24AC/DC CONVERTER 24V 15W Mornsun America, LLC |
524 | - |
|
数据表 |
LO15-10Bxx (15W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 15W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 625 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.75" H (63.5mm x 45.7mm x 19.0mm) |
|
LO15-10B12AC/DC CONVERTER 12V 15W Mornsun America, LLC |
437 | - |
|
数据表 |
LO15-10Bxx (15W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 15W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 1.25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.75" H (63.5mm x 45.7mm x 19.0mm) |
|
LO15-10B05AC/DC CONVERTER 5V 14W Mornsun America, LLC |
212 | - |
|
数据表 |
LO15-10Bxx (15W) | Tray | Not For New Designs | Open Frame | 1 | 5V | - | - | 14W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 2.8 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.50" L x 1.80" W x 0.75" H (63.5mm x 45.7mm x 19.0mm) |
