交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LO30-10C0512-12LOPEN FRAME AC DC CONVERTER 3 OUT Mornsun America, LLC |
0 | - |
|
数据表 |
LO30-10C0512-12L (30W) | Tray | Obsolete | Open Frame | 3 | 5V | 12V | -12V | 31W | - | - | 85 ~ 264 VAC, 100 ~ 370 VDC | - | 150 mA | - | 1.2 A | ITE (Commercial) | - | 3 A | - | 3 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.82" L x 1.97" W x 0.98" H (97.0mm x 50.0mm x 25.0mm) |
|
|
LM200-20B36R2-CQENCLOSED AC DC CONVERTERS 212.4W Mornsun America, LLC |
0 | - |
|
数据表 |
LM200-20BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 36V | - | - | 212W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 5.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
LM200-20B54R2-CQENCLOSED AC DC CONVERTERS 210.6W Mornsun America, LLC |
0 | - |
|
数据表 |
LM200-20BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 54V | - | - | 211W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 3.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
LM200-20B12R2-CQENCLOSED AC DC CONVERTERS 204W 1 Mornsun America, LLC |
0 | - |
|
数据表 |
LM200-20BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 204W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 17 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
LM200-20B24R2-CQENCLOSED AC DC CONVERTERS 211.2W Mornsun America, LLC |
0 | - |
|
数据表 |
LM200-20BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 211W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 8.8 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
LM200-20B48R2-CQENCLOSED AC DC CONVERTERS 211.2W Mornsun America, LLC |
0 | - |
|
数据表 |
LM200-20BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 211W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 4.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
LM200-20B15R2-CQENCLOSED AC DC CONVERTERS 210W 1 Mornsun America, LLC |
0 | - |
|
数据表 |
LM200-20BxxR2-CQ (204W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 210W | - | - | 90 ~ 264 VAC, 240 ~ 370 VDC | - | 14 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

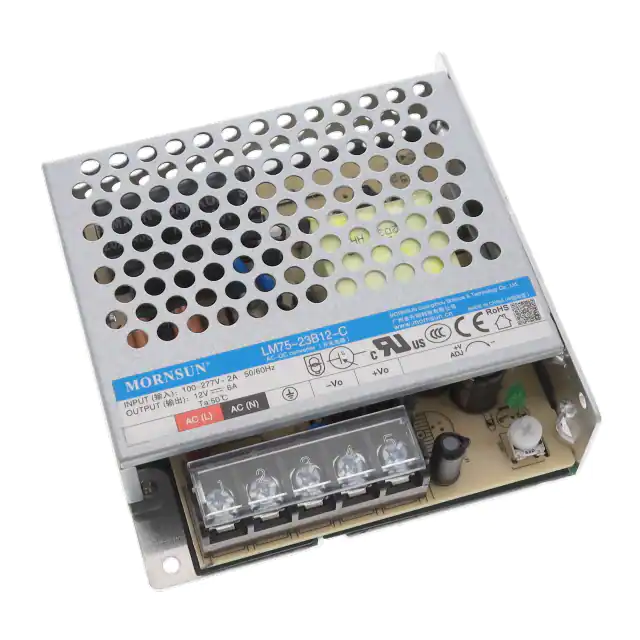

LM75-23B12-CAC/DC CONVERTER 12V 72W Mornsun America, LLC |
3 | - |
|
数据表 |
LM75-23Bxx-C (75W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 72W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|

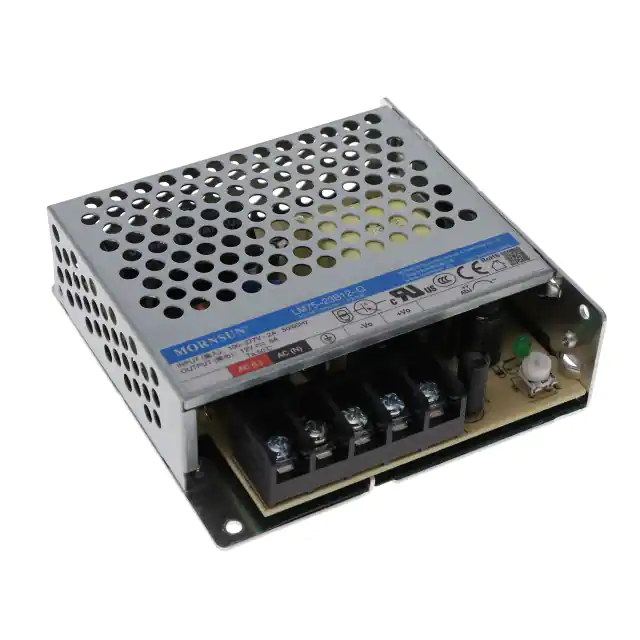

LM75-23B12-QAC/DC CONVERTER 12V 72W Mornsun America, LLC |
3 | - |
|
数据表 |
LM75-23Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 72W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
|

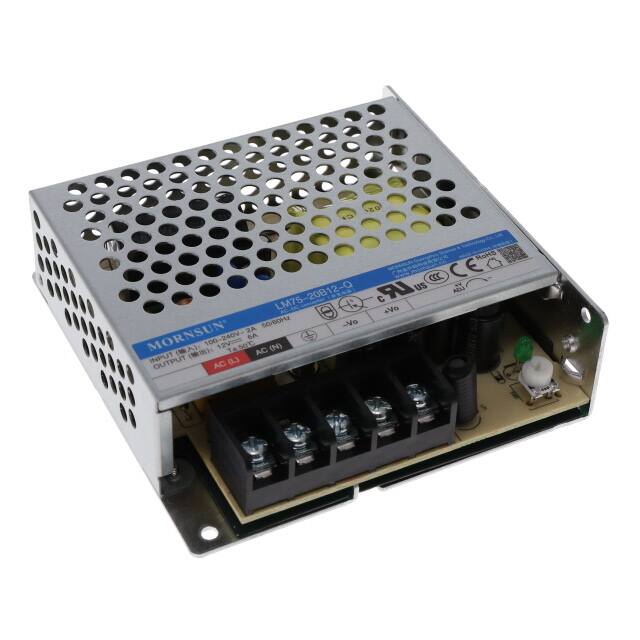

LM75-20B12-QAC/DC CONVERTER 12V 72W Mornsun America, LLC |
3 | - |
|
数据表 |
LM75-20Bxx-Q (75W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 72W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) |
