| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

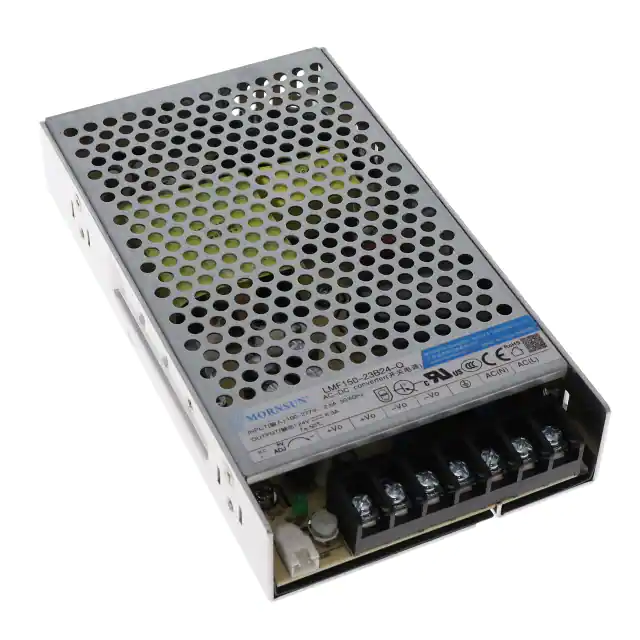

LMF150-23B24-QAC/DC CONVERTER 24V 151W Mornsun America, LLC |
4 | - |
|
数据表 |
LMF150-23Bxx-Q | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 24V | - | - | 151W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 6.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|

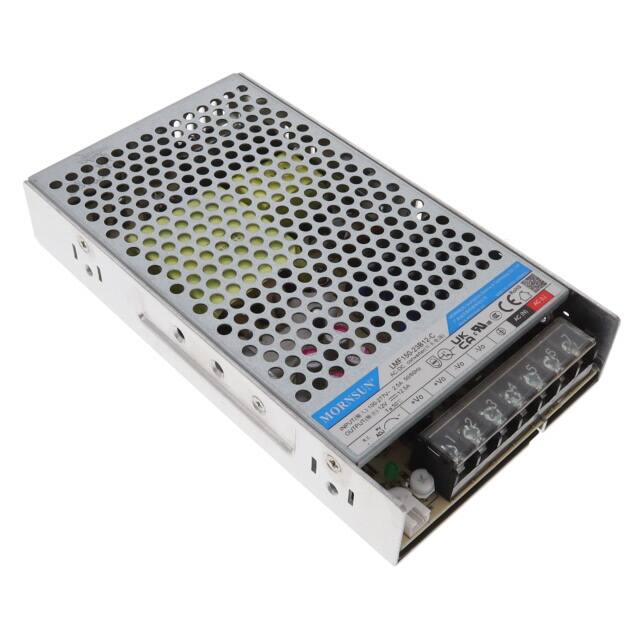

LMF150-23B12-CAC/DC CONVERTER 12V 150W Mornsun America, LLC |
3 | - |
|
数据表 |
LMF150-23Bxx-C | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
LMF500-23B05UHAC/DC CONVERTER 5V 400W Mornsun America, LLC |
4 | - |
|
数据表 |
LMF500-23BxxUH (500W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 400W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 80 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
|
LMF500-23B30UHAC/DC CONVERTER 30.5V 500W Mornsun America, LLC |
8 | - |
|
数据表 |
LMF500-23BxxUH (500W) | Box | Not For New Designs | Enclosed | 1 | 30.5V | - | - | 500W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 16.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
|
LMF500-23B36UHAC/DC CONVERTER 36V 500W Mornsun America, LLC |
2 | - |
|
数据表 |
LMF500-23BxxUH (500W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 500W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 13.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
|
LMF500-23B24UHAC/DC CONVERTER 24V 502W Mornsun America, LLC |
2 | - |
|
数据表 |
LMF500-23BxxUH (500W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 502W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 20.9 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
|
LMF200-23B15-QAC/DC CONVERTER 15V 201W Mornsun America, LLC |
9 | - |
|
数据表 |
LMF200-23Bxx-Q (200W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 15V | - | - | 201W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 13.4 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
LMF200-23B48-CAC/DC CONVERTER 48V 202W Mornsun America, LLC |
5 | - |
|
数据表 |
LMF200-23Bxx-C (200W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 202W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 4.2 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
LMF500-23B12UHAC/DC CONVERTER 12V 500W Mornsun America, LLC |
4 | - |
|
数据表 |
LMF500-23BxxUH (500W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 500W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 41.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) |
|
LMF320-23B05AC/DC CONVERTER 5V 300W Mornsun America, LLC |
11 | - |
|
数据表 |
305RAC / LMF-23B | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 300W | - | - | 85 ~ 305 VAC, 100 ~ 430 VDC | - | 60 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.47" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
