交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMF200-23B36UHAC/DC CONVERTER 36V 202W Mornsun America, LLC |
9 | - |
|
数据表 |
LMF200-23BxxUH (200W) | Box | Not For New Designs | Enclosed | 1 | 36V | - | - | 202W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 5.6 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
|
|
LMF200-23B12UHAC/DC CONVERTER 12V 200W Mornsun America, LLC |
8 | - |
|
数据表 |
LMF200-23BxxUH (200W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 200W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 16.7 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
|
|
LOF225-23B12R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
21 | - |
|
数据表 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 12V | - | - | 200W (225W Forced Air) | - | - | 85 ~ 277 VAC, 120 ~ 390 VDC | - | 18.75 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
|
|
LOF225-23B48R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
17 | - |
|
数据表 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 48V | - | - | 200W (225W Forced Air) | - | - | 85 ~ 277 VAC, 120 ~ 390 VDC | - | 4.7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
|
|
LOF225-23B24R2OPEN FRAME AC DC CONVERTERS 1 OU Mornsun America, LLC |
13 | - |
|
数据表 |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 24V | - | - | 200W (225W Forced Air) | - | - | 85 ~ 277 VAC, 120 ~ 390 VDC | - | 9.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) |
.jpg)
|
LM200-10B05AC/DC CONVERTER 5V 150W Mornsun America, LLC |
19 | - |
|
数据表 |
LM200-10Bxx (200W) | Box | Not For New Designs | Enclosed | 1 | 5V | - | - | 150W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | - | 30 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
|
LM200-10B12-QAC/DC CONVERTER 12V 204W Mornsun America, LLC |
6 | - |
|
数据表 |
LM200-10Bxx-Q (200W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 12V | - | - | 204W | - | - | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | - | 17 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
LM150-23B12-CAC/DC CONVERTER 12V 150W Mornsun America, LLC |
15 | - |
|
数据表 |
LM150-23Bxx-C (150W) | Box | Not For New Designs | Enclosed | 1 | 12V | - | - | 150W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 12.5 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

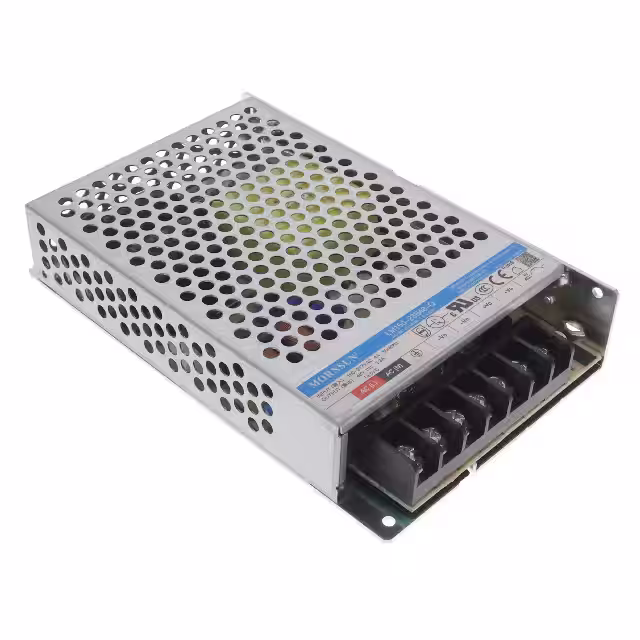

LM150-23B48-QAC/DC CONVERTER 48V 158W Mornsun America, LLC |
9 | - |
|
数据表 |
LM150-23Bxx-Q (150W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 48V | - | - | 158W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

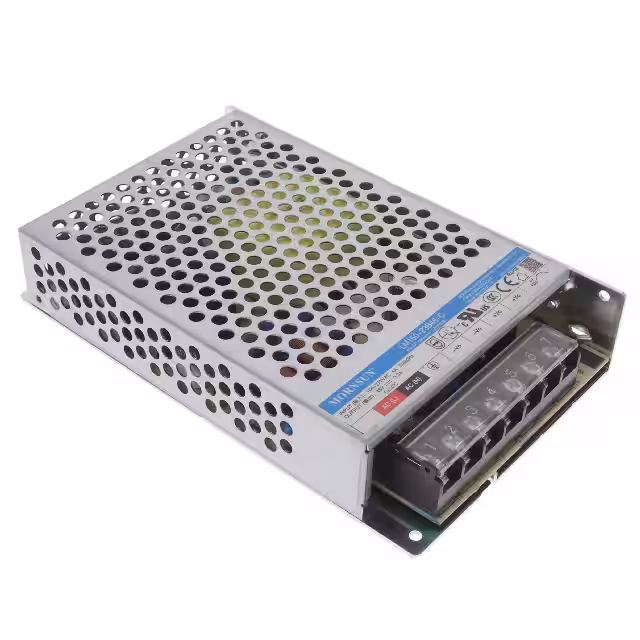

LM150-23B48-CAC/DC CONVERTER 48V 158W Mornsun America, LLC |
9 | - |
|
数据表 |
LM150-23Bxx-C (150W) | Box | Not For New Designs | Enclosed | 1 | 48V | - | - | 158W | - | - | 85 ~ 305 VAC, 120 ~ 430 VDC | - | 3.3 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
