交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCA300F-15-TAC/DC CONVERTER 15V 330W |
0 | - |
|
数据表 |
PCA (300W) | Box | Active | Enclosed | 1 | 15V | - | - | 330W | - | - | 85 ~ 264 VAC, 88 ~ 370 VDC | - | 22 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | ||
|
NMP1K2-##EHCC-00AC/DC CNVRTR 12V 24V 2X5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 12V | 24V | 5V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 20 A | - | 10 A | ITE (Commercial), Medical | - | 36 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
PCA300F-48-TAC/DC CONVERTER 48V 336W |
0 | - |
|
数据表 |
PCA (300W) | Box | Active | Enclosed | 1 | 48V | - | - | 336W | - | - | 85 ~ 264 VAC, 88 ~ 370 VDC | - | 7 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | ||
|
|
PCA300F-32-TAC/DC CONVERTER 32V 320W |
0 | - |
|
数据表 |
PCA (300W) | Box | Active | Enclosed | 1 | 32V | - | - | 320W | - | - | 85 ~ 264 VAC, 88 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | ||
|
|
NMP1K2-##EHCE-00AC/DC CNVRTR 12V 24V 5V 12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 12V | 24V | 5V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 20 A | - | 10 A | ITE (Commercial), Medical | - | 36 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##EHCH-00AC/DC CNVRTR 12V 24V 5V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 12V | 24V | 5V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 20 A | - | 10 A | ITE (Commercial), Medical | - | 36 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##EHCK-00AC/DC CNVRTR 12V 24V 5V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 12V | 24V | 5V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 20 A | - | 10 A | ITE (Commercial), Medical | - | 36 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
RWS1000B-15AC/DC CONVERTER 15V 1000W |
0 | - |
|
数据表 |
RWS1000B (1000W) | Bulk | Active | Enclosed | 1 | 15V | - | - | 1000W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 67 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.0mm x 127.0mm x 63.0mm) | ||
|
|
PCA300F-15AC/DC CONVERTER 15V 330W |
1 | - |
|
数据表 |
PCA (300W) | Box | Active | Enclosed | 1 | 15V | - | - | 330W | - | - | 85 ~ 264 VAC, 88 ~ 370 VDC | - | 22 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | ||
|
PCA300F-12AC/DC CONVERTER 12V 324W |
1 | - |
|
数据表 |
PCA (300W) | Box | Active | Enclosed | 1 | 12V | - | - | 324W | - | - | 85 ~ 264 VAC, 88 ~ 370 VDC | - | 27 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | ||
|
RWS1000B-15/MEAC/DC CONVERTER 15V 1000W |
1 | - |
|
数据表 |
RWS1000B/ME (1000W) | Box | Active | Enclosed | 1 | 15V | - | - | 1005W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 67 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) | ||
|
|
RWS1000B-48/MEAC/DC CONVERTER 48V 1000W |
1 | - |
|
数据表 |
RWS1000B/ME (1000W) | Box | Active | Enclosed | 1 | 48V | - | - | 1008W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 21 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Remote Sense, Universal Input | Chassis Mount | 7.80" L x 5.00" W x 2.48" H (198.1mm x 127.0mm x 63.0mm) | ||
|
PCA600F-24AC/DC CONVERTER 24V 648W |
0 | - |
|
数据表 |
PCA (600W) | Box | Active | Enclosed | 1 | 24V | - | - | 648W | - | - | 85 ~ 264 VAC, 88 ~ 370 VDC | - | 27 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | ||
|
RACM1200-36SAV/ENCAC/DC CONVERTER 36V 1440W |
1 | - |
|
数据表 |
RACM1200-V (1200W) | Box | Active | Enclosed | 1 | 36V | - | - | 1440W | - | - | 80 ~ 264 VAC | - | 40 A | - | - | ITE (Commercial), Laboratory | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 8.98" L x 3.79" W x 1.57" H (228.0mm x 96.2mm x 40.0mm) | ||
|
U5Y0064AC/DC CONVERTER 24V 300W |
1 | - |
|
数据表 |
EFE300M (300W) | Bulk | Active | Enclosed | 1 | 24V | - | - | 300W | - | - | 90 ~ 264 VAC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 6.00" L x 3.00" W x 1.34" H (152.4mm x 76.2mm x 34.0mm) | ||
|
RWS1500B-15AC/DC CONVERTER 15V 1500W |
0 | - |
|
数据表 |
RWS1500B (1500W) | Bulk | Active | Enclosed | 1 | 15V | - | - | 1500W | - | - | 85 ~ 265 VAC, 120 ~ 340 VDC | - | 100 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 10.28" L x 5.00" W x 2.48" H (261.0mm x 127.0mm x 63.0mm) | ||
|
LCM1500N-T-4AC/DC CONVERTER 15V 1500W |
0 | - |
|
数据表 |
LCM1500 (1500W) | Tray | Active | Front End | 1 | 15V | - | - | 1500W | - | - | 90 ~ 264 VAC | - | 100 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 10.00" L x 5.20" W x 2.43" H (254.0mm x 132.0mm x 61.7mm) | ||
|
PCA600F-12AC/DC CONVERTER 12V 636W |
1 | - |
|
数据表 |
PCA (600W) | Box | Active | Enclosed | 1 | 12V | - | - | 636W | - | - | 85 ~ 264 VAC, 88 ~ 370 VDC | - | 53 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) | ||
|

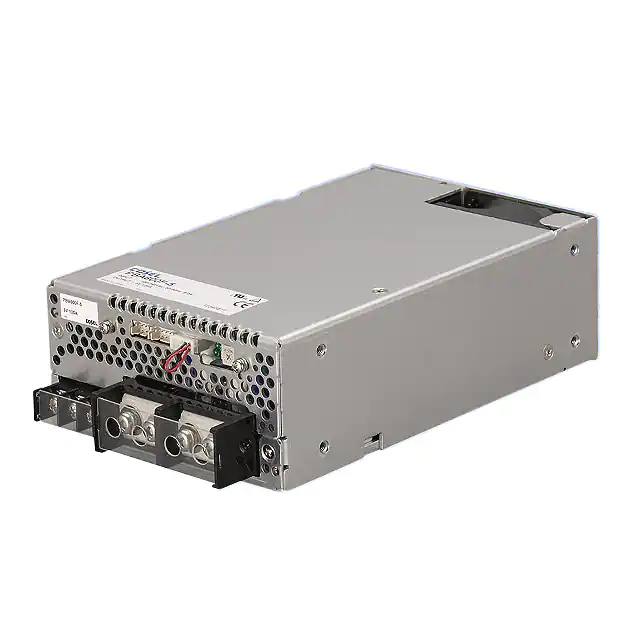

PBA600F-12AC/DC CONVERTER 12V 600W |
1 | - |
|
数据表 |
PBA (600W) | Box | Active | Enclosed | 1 | 12V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 53 A | - | - | ITE (Commercial) | - | - | - | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
|
PBA600F-48AC/DC CONVERTER 48V 600W |
1 | - |
|
数据表 |
PBA (600W) | Box | Active | Enclosed | 1 | 48V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 13 A | - | - | ITE (Commercial) | - | - | - | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
