交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARFS-3001-24AC/DC CONVERTER 24V 30W Aras Power Technologies |
59 | - |
|
数据表 |
ARFS-3001 | Box | Active | Open Frame | 1 | 24V | - | - | 30W | - | - | 90 ~ 264 VAC | - | 1.25 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | 0°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.04" H (101.6mm x 50.8mm x 26.5mm) |
|
ARFS-3001-05AC/DC CONVERTER 5V 30W Aras Power Technologies |
55 | - |
|
数据表 |
ARFS-3001 | Box | Active | Open Frame | 1 | 5V | - | - | 30W | - | - | 90 ~ 264 VAC | - | 6 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | 0°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.04" H (101.6mm x 50.8mm x 26.5mm) |
|
ARFS-3011M-1205AC/DC CONVERTER 12V 300W Aras Power Technologies |
4 | - |
|
数据表 |
ARFS-3011M (300W) | Box | Active | Open Frame | 1 | 12V | - | - | 300W | - | - | 90 ~ 264 VAC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|
ARFS-3411M-2405AC/DC CONVERTER 24V 336W Aras Power Technologies |
2 | - |
|
数据表 |
ARFS-3411M (336W) | Box | Active | Open Frame | 1 | 24V | - | - | 336W | - | - | 90 ~ 264 VAC | - | 14 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|
ARFU-3811M-2405AC/DC CONVERTER 380W 24V 12V Mul Aras Power Technologies |
11 | - |
|
数据表 |
- | Box | Active | Open Frame | 1 | 24V | - | - | 380W | - | - | 90 ~ 264 VAC | - | 15.8 A | - | - | Medical | - | - | - | 1.5 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.57" H (152.0mm x 88.9mm x 40.0mm) |
|
ARF-2501-10AC/DC CONVERTER 15V 251W Aras Power Technologies |
96 | - |
|
数据表 |
ARF-2501 (250W) | Bag | Active | Open Frame | 1 | 15V | - | - | 251W | - | - | 85 ~ 264 VAC | - | 16.7 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | -40°C ~ 50°C | PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.75" H (203.2mm x 127.0mm x 44.5mm) |
|
ARFS-6501-12SAC/DC CONVERTER 12V 65W Aras Power Technologies |
1 | - |
|
数据表 |
ARFS-6501 (65W) | Box | Active | Open Frame | 1 | 12V | - | - | 65W | - | - | 90 ~ 264 VAC | - | 5.42 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|

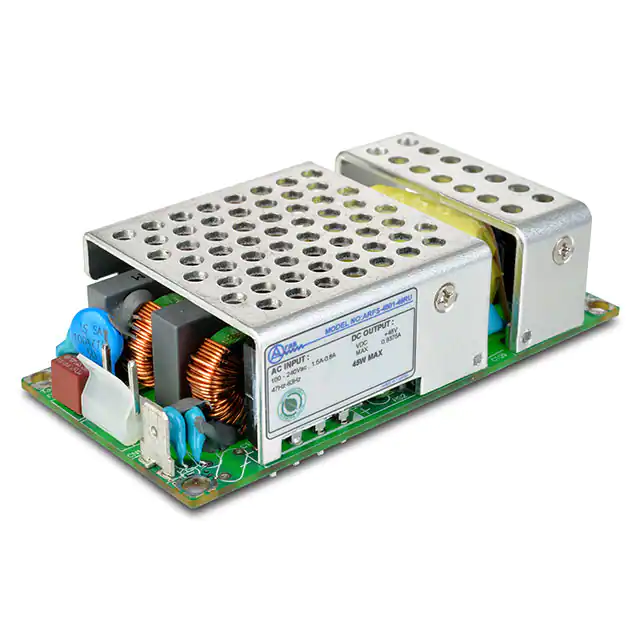

ARFS-4501-48RUAC/DC CONVERTER 48V 45W Aras Power Technologies |
537 | - |
|
数据表 |
ARFS-4501 | Box | Active | Open Frame | 1 | 48V | - | - | 45W | - | - | 90 ~ 264 VAC | - | 930 mA | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm) |
|
ARFL-2011-12SAC/DC CONVERTER 12V 200W Aras Power Technologies |
37 | - |
|
数据表 |
- | Box | Active | Open Frame | 1 | 12V | - | - | 200W | - | - | 90 ~ 264 VAC | - | 16.7 A | - | - | ITE (Commercial) | - | - | - | 1.5 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.6mm) |
|

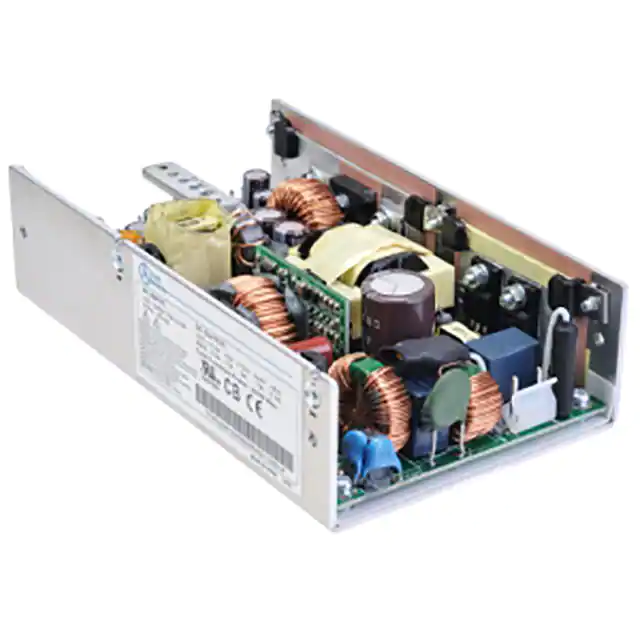

ARF-2015-00AC/DC CNVRT 24V 12V 5V 3.3V 200W Aras Power Technologies |
657 | - |
|
数据表 |
- | Box | Active | Open Frame | 4 | 24V | 12V | 5V | 200W | 3.3V | - | 90 ~ 264 VAC | - | 7 A | - | 2 A | ITE (Commercial) | - | 11 A | 4.5 A | 1.5 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.00" L x 3.50" W x 1.57" H (152.4mm x 88.9mm x 40.0mm) |
