交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUS400M-28/AAC/DC CONVERTER 28V 250W |
1 | - |
|
数据表 |
CUS400M (400W) | Box | Active | Enclosed | 1 | 28V | - | - | 250W (400W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.93 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.67" H (142.0mm x 90.0mm x 42.5mm) | ||
|
HWS150A-5/HDAC/DC CONVERTER 5V 150W |
0 | - |
|
数据表 |
HWS/HD (150W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 5V | - | - | 150W | - | - | 85 ~ 265 VAC, 120 ~ 370 VDC | - | 30 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.30" L x 3.23" W x 1.46" H (160.0mm x 82.0mm x 37.0mm) | ||
|
GB130QC-CAC/DC CNVRTR 5V 12V +/-15V 126W |
0 | - |
|
数据表 |
GB130Q-C (130W) | Box | Active | Enclosed | 4 | 5V | 12V | -15V | 126W (164W Forced Air) | 15V | - | 90 ~ 264 VAC | - | 12 A | - | 3 A | ITE (Commercial), Medical | - | 1 A | 1 A | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.33" L x 3.46" W x 1.79" H (135.5mm x 87.8mm x 45.4mm) | ||
|

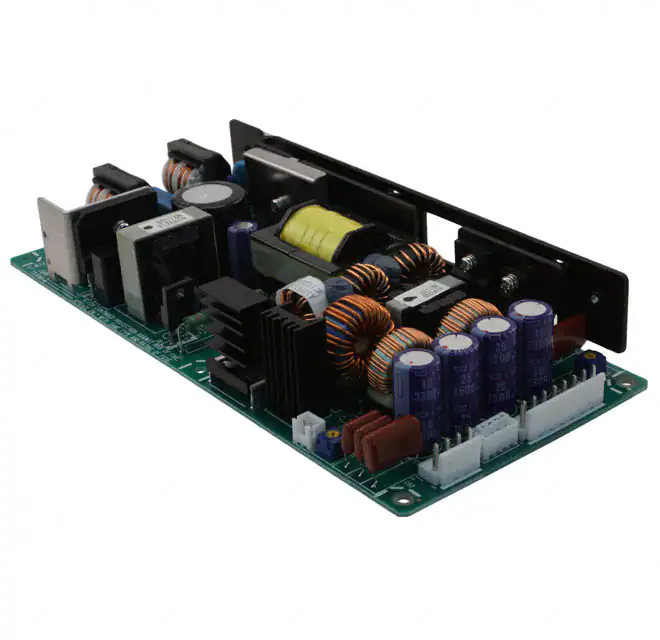

ZWQ80-5222AC/DC CNVRTR 5V +/-12V 12V 80W |
1 | - |
|
数据表 |
ZWQ (80W) | Bulk | Active | Open Frame | 4 | 5V | 12V | -12V | 80W | 12V | - | 85 ~ 265 VAC | - | 8 A | - | 2 A | ITE (Commercial) | - | 2 A | 3 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm) | ||
|
|
ZWQ80-5225AC/DC CONVERTER 5V +/-12V 5V 80W |
1 | - |
|
数据表 |
ZWQ (80W) | Bulk | Active | Open Frame | 4 | 5V | 12V | -12V | 80W | 5V | - | 85 ~ 265 VAC | - | 8 A | - | 2 A | ITE (Commercial) | - | 2 A | 7 A | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.27" L x 3.68" W x 1.38" H (210.0mm x 93.5mm x 35.0mm) | ||
|
S8FS-G15015CAC/DC CONVERTER 15V 150W |
1 | - |
|
数据表 |
S8FS-G (150W) | Box | Active | Enclosed | 1 | 15V | - | - | 150W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | Industrial, ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | ||
|
PJA600F-15AC/DC CONVERTER 15V 600W |
1 | - |
|
数据表 |
PJA (600W) | Box | Active | Enclosed | 1 | 15V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 40 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (214.9mm x 119.9mm x 61.0mm) | ||
|
NMP1K2-##E###-00AC/DC CONVERTER 12V 240W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 1 | 12V | - | - | 240W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 20 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##H###-00AC/DC CONVERTER 24V 240W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 1 | 24V | - | - | 240W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##K###-00AC/DC CONVERTER 48V 240W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 1 | 48V | - | - | 240W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-#C####-00AC/DC CONVERTER 5V 180W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 1 | 5V | - | - | 180W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
PLA600F-15AC/DC CONVERTER 15V 600W |
1 | - |
|
数据表 |
PLA (600W) | Box | Active | Enclosed | 1 | 15V | - | - | 600W | - | - | 85 ~ 264 VAC | - | 40 A | - | - | ITE (Commercial) | - | - | - | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - | ||
|
CUS400M-28/BX5AC/DC CONVERTER 28V 250W |
1 | - |
|
数据表 |
CUS400M (400W) | Box | Active | Open Frame | 1 | 28V | - | - | 250W (400W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.93 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.57" L x 3.36" W x 1.61" H (141.6mm x 85.3mm x 40.8mm) | ||
|
|
NMP1K2-##CHHK-00AC/DC CNVRTR 5V 2X24V 48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 24V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 10 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##CHKC-00AC/DC CNVRTR 5V 24V 48V 5V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 48V | 840W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##CHKE-00AC/DC CNVRTR 5V 24V 48V 12V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 48V | 900W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##CHKH-00AC/DC CNVRTR 5V 24V 48V 24V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 48V | 900W | 24V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 10 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##CHKK-00AC/DC CNVRTR 5V 24V 2X48V 900W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 24V | 48V | 900W | 48V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 10 A | ITE (Commercial), Medical | - | 5 A | 5 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##CKCC-00AC/DC CONVERTER 5V 48V 2X5V 780W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 5V | 780W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
|
NMP1K2-##CKCE-00AC/DC CNVRTR 5V 48V 5V 12V 840W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 48V | 5V | 840W | 12V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 5 A | ITE (Commercial), Medical | - | 36 A | 20 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) |
