交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DYL060-8AC/DC CONVERTER 15V 5V 60W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DYL060 (60W) | Box | Active | Open Frame | 2 | 15V | 5V | - | 60W | - | - | 90 ~ 264 VAC | - | 3.8 A | - | 500 mA | ITE (Commercial) | - | - | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
|
DYL060-9AC/DC CONVERTER 24V 5V 60W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DYL060 (60W) | Box | Active | Open Frame | 2 | 24V | 5V | - | 60W | - | - | 90 ~ 264 VAC | - | 2.4 A | - | 500 mA | ITE (Commercial) | - | - | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
|
DG040-9AC/DC CONVERTER 24V 40W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DG040 (40W) | Box | Active | Open Frame | 1 | 24V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 1.66 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.91" H (76.2mm x 50.8mm x 23.1mm) |
|
|
DG040M-9AC/DC CONVERTER 24V 40W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DG040 (40W) | Box | Active | Open Frame | 1 | 24V | - | - | 40W | - | - | 90 ~ 264 VAC | - | 1.66 A | - | - | Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.91" H (76.2mm x 50.8mm x 23.1mm) |
|
|
TPDR-10HPLINE FILTER, 3-PHASE DELTA, 600V Tri-Mag, LLC |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

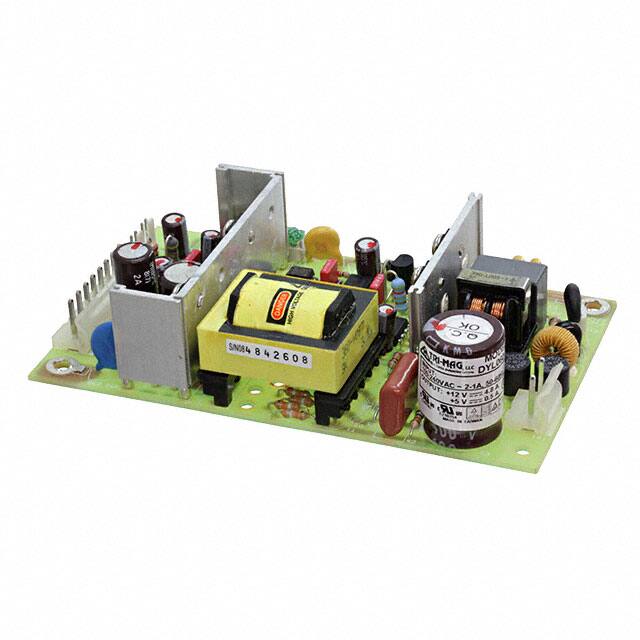

DYL060-7AC/DC CONVERTER 12V 5V 60W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DYL060 (60W) | Box | Obsolete | Open Frame | 2 | 12V | 5V | - | 60W | - | - | 90 ~ 264 VAC | - | 4.8 A | - | 500 mA | ITE (Commercial) | - | - | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
|
|
DY040-6AC/DC CONVERTER 5V 45W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DY040 (40W) | Box | Active | Open Frame | 1 | 5V | - | - | 45W | - | - | 90 ~ 264 VAC | - | 7 A | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 28.0mm) |
|
|
DZ065-6AC/DC CONVERTER 5V 55W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DZ065 (55W) | Box | Active | Open Frame | 1 | 5V | - | - | 55W | - | - | 90 ~ 264 VAC | - | 7 A | - | - | ITE (Commercial) | - | - | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 28.0mm) |
|
|
DY060-DAC/DC CONVERTER 3.3V 5V 12V 60W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DY060 (60W) | Box | Active | Open Frame | 3 | 3.3V | 5V | 12V | 60W | - | - | 90 ~ 264 VAC | - | 5 A | - | 4 A | ITE (Commercial) | - | 1 A | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.18" H (114.3mm x 63.5mm x 30.0mm) |
|
|
DYL060-1AC/DC CONVERTER 5V +/-12V 60W Tri-Mag, LLC |
0 | - |
|
数据表 |
Tri-Mag, DYL060 (60W) | Box | Active | Open Frame | 3 | 5V | 12V | -12V | 60W | - | - | 90 ~ 264 VAC | - | 3 A | - | 3 A | ITE (Commercial) | - | 300 mA | - | - | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) |
