交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TIW 06-106AC/DC CONVERTER 6V 6W Traco Power |
16 | - |
|
数据表 |
TIW (6W) | Box | Active | Enclosed | 1 | 6V | - | - | 6W | - | - | 93 ~ 264 VAC | - | 1 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | - | -25°C ~ 50°C | IP67, Universal Input | Chassis Mount | 1.98" L x 1.89" W x 0.93" H (50.2mm x 48.0mm x 23.6mm) |
|
TPP 30-115A-JAC/DC CONVERTER 15V 30W Traco Power |
16 | - |
|
数据表 |
TPP 30A-J (30W) | Box | Active | Open Frame | 1 | 15V | - | - | 30W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.34" L x 1.36" W x 0.77" H (84.8mm x 34.5mm x 19.6mm) |
|
TPP 15-105-JAC/DC CONVERTER 5V 15W Traco Power |
13 | - |
|
数据表 |
TPP 15-J (15W) | Box | Active | Enclosed | 1 | 5V | - | - | 15W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.82" L x 1.14" W x 0.82" H (71.6mm x 28.9mm x 20.9mm) |
|
TIW 12-124AC/DC CONVERTER 24V 12W Traco Power |
7 | - |
|
数据表 |
TIW (12W) | Box | Active | Enclosed | 1 | 24V | - | - | 12W | - | - | 90 ~ 264 VAC, 130 ~ 375 VDC | - | 500 mA | - | - | Household Appliances, ITE (Commercial) | - | - | - | - | -25°C ~ 50°C | IP67, Universal Input | Chassis Mount | 2.17" L x 0.93" W x 1.89" H (55.0mm x 23.6mm x 48.0mm) |
|
TMW 24-124AC/DC CONVERTER 24V 24W Traco Power |
13 | - |
|
数据表 |
TMW 24 (24W) | Box | Active | Enclosed | 1 | 24V | - | - | 24W | - | - | 85 ~ 264 VAC | - | 1 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 80°C (With Derating) | - | Chassis Mount | 2.09" L x 2.01" W x 0.97" H (53.0mm x 51.0mm x 24.5mm) |
|

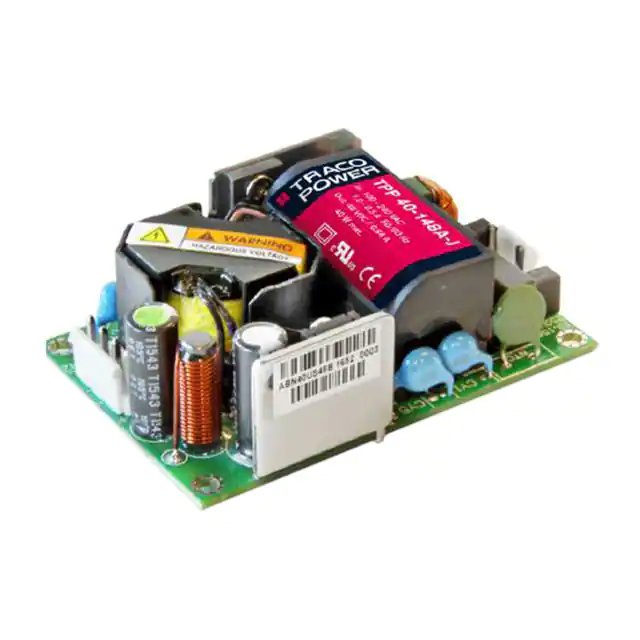

TPP 40-124A-JAC/DC CONVERTER 24V 40W Traco Power |
13 | - |
|
数据表 |
TPP 40A (40W) | Box | Active | Open Frame | 1 | 24V | - | - | 40W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 1.67 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.94" H (76.2mm x 50.8mm x 23.9mm) |
|
TXLN 060-124AC/DC CONVERTER 24V 60W Traco Power |
20 | - |
|
数据表 |
TXLN 060 (60W) | Box | Active | Enclosed | 1 | 24V | - | - | 60W | - | - | 88 ~ 264 VAC, 125 ~ 375 VDC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) |
|
|
TXLN 060-115AC/DC CONVERTER 15V 60W Traco Power |
11 | - |
|
数据表 |
TXLN 060 (60W) | Box | Active | Enclosed | 1 | 15V | - | - | 60W | - | - | 88 ~ 264 VAC, 125 ~ 375 VDC | - | 4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) |
|
TXLN 060-105AC/DC CONVERTER 5V 50W Traco Power |
10 | - |
|
数据表 |
TXLN 060 (60W) | Box | Active | Enclosed | 1 | 5V | - | - | 50W | - | - | 88 ~ 264 VAC, 125 ~ 375 VDC | - | 10 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) |
|
|
TXLN 060-112AC/DC CONVERTER 12V 60W Traco Power |
10 | - |
|
数据表 |
TXLN 060 (60W) | Box | Active | Enclosed | 1 | 12V | - | - | 60W | - | - | 88 ~ 264 VAC, 125 ~ 375 VDC | - | 5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) |
