交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPP 450-124BA-MAC/DC CONVERTER 24V 319W Traco Power |
26 | - |
|
数据表 |
TPP 450BA-M (450W) | Box | Active | Open Frame | 1 | 24V | - | - | 319W (450W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 13.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Standby Output, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.1mm) |
|
TPP 450-112A-MAC/DC CONVERTER 12V 250W Traco Power |
43 | - |
|
数据表 |
TPP 450A (450W) | Box | Active | Open Frame | 1 | 12V | - | - | 250W (450W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 20.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.1mm) |
|
TPP 450-136-MAC/DC CONVERTER 36V 450W Traco Power |
55 | - |
|
数据表 |
TPP 450 (450W) | Box | Active | Enclosed | 1 | 36V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Remote On/Off, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|

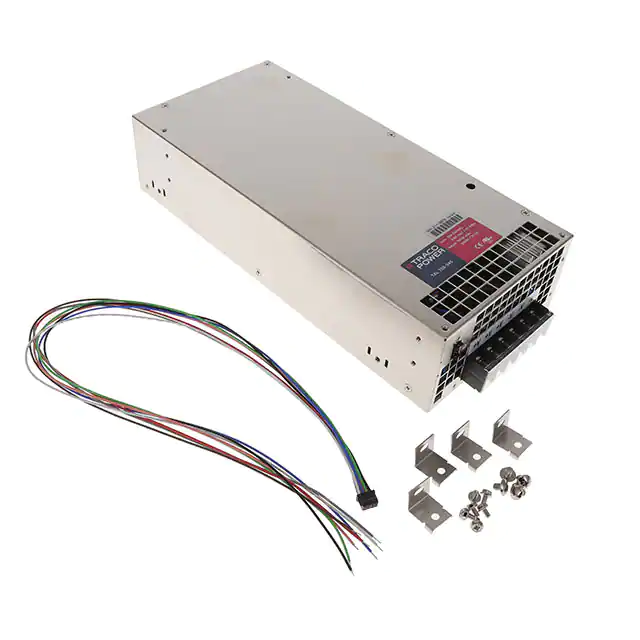

TXL 750-24SAC/DC CONVERTER 24V 751W Traco Power |
28 | - |
|
数据表 |
TXL 750 (750W) | Box | Not For New Designs | Enclosed | 1 | 24V | - | - | 751W | - | - | 90 ~ 264 VAC, 127 ~ 375 VDC | - | 31.3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 10.83" L x 4.92" W x 2.48" H (275.0mm x 125.0mm x 63.0mm) |
|
TPP 15-136A-JAC/DC CONVERTER 36V 15W Traco Power |
0 | - |
|
数据表 |
TPP 15A-J (15W) | Box | Active | Open Frame | 1 | 36V | - | - | 15W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 417 mA | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.61" L x 1.00" W x 0.64" H (66.3mm x 25.4mm x 16.3mm) |
|
TPI 180-148A-MAC/DC CONVERTER 48V 150W Traco Power |
33 | - |
|
数据表 |
TPI 180A-M (180W) | Box | Active | Open Frame | 1 | 48V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | - | 3.75 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) |
|
TPP 180-148A-MAC/DC CONVERTER 48V 150W Traco Power |
37 | - |
|
数据表 |
TPP 180A-M (180W) | Box | Active | Open Frame | 1 | 48V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | - | 3.75 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.24" H (76.2mm x 50.8mm x 31.5mm) |
|
TPI 300-148L-MAC/DC CONVERTER 48V 180W Traco Power |
48 | - |
|
数据表 |
TPI 300L-M (300W) | Box | Active | Open Frame | 1 | 48V | - | - | 180W (300W Forced Air) | - | - | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | - | 6.25 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) |
|
TXN 35-12435W COST EFFICIENT, METAL ENCASE Traco Power |
125 | - |
|
数据表 |
TXN35 (35W) | Box | Active | Enclosed | 1 | 24V | - | - | 35W | - | - | 90 ~ 264 VAC, 140 ~ 340 VDC | - | 1.5 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C | Adjustable Output, DC Input Capable, IP20, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
|
TXN 35-11235W COST EFFICIENT, METAL ENCASE Traco Power |
200 | - |
|
数据表 |
TXN35 (35W) | Box | Active | Enclosed | 1 | 12V | - | - | 35W | - | - | 90 ~ 264 VAC, 140 ~ 340 VDC | - | 3 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C | Adjustable Output, DC Input Capable, IP20, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
