交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

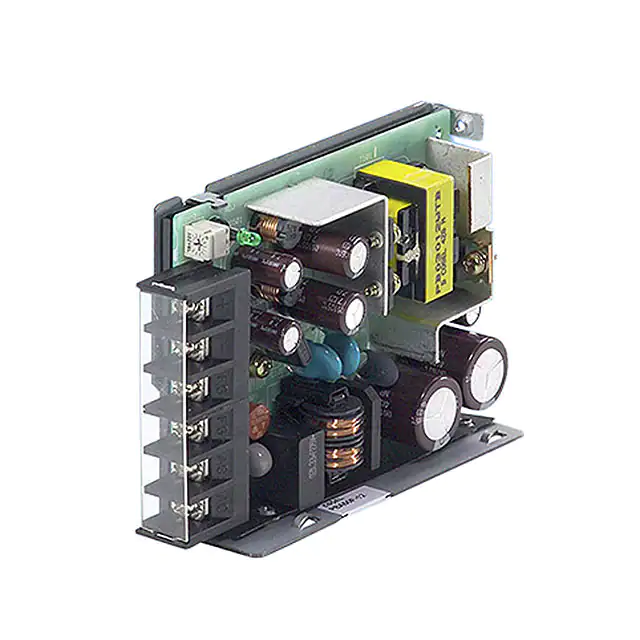

PBW30F-5AC/DC CONVERTER +/-5V 30W |
1 | - |
|
数据表 |
PBW (30W) | Box | Active | Enclosed | 2 | 5V | -5V | - | 30W | - | - | 85 ~ 264 VAC | - | 1.5 A | - | 2 A | ITE (Commercial) | - | - | - | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
MULP180-1312-2AC/DC CONVERTER 12V 120W |
0 | - |
|
数据表 |
MULP180 (180W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 120W (180W Forced Air) | - | - | 80 ~ 264 VAC, 390VDC | - | 10 A | - | - | Medical | - | - | - | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) | ||
|
RAC150-48SG/ENCAC/DC CONVERTER 48V 125W |
1 | - |
|
数据表 |
POWERLINE RAC150-G (150W) | Box | Active | Enclosed, Conformal Coated | 1 | 48V | - | - | 125W (150W Forced Air) | - | - | 90 ~ 264 VAC | - | 3.125 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.13" L x 2.44" W x 1.38" H (105.0mm x 62.0mm x 35.0mm) | ||
|
S8FS-G01524CAC/DC CONVERTER 24V 15W |
1 | - |
|
数据表 |
S8FS-G (15W) | Box | Active | Enclosed | 1 | 24V | - | - | 15W | - | - | 85 ~ 264 VAC | - | 650 mA | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) | ||
|

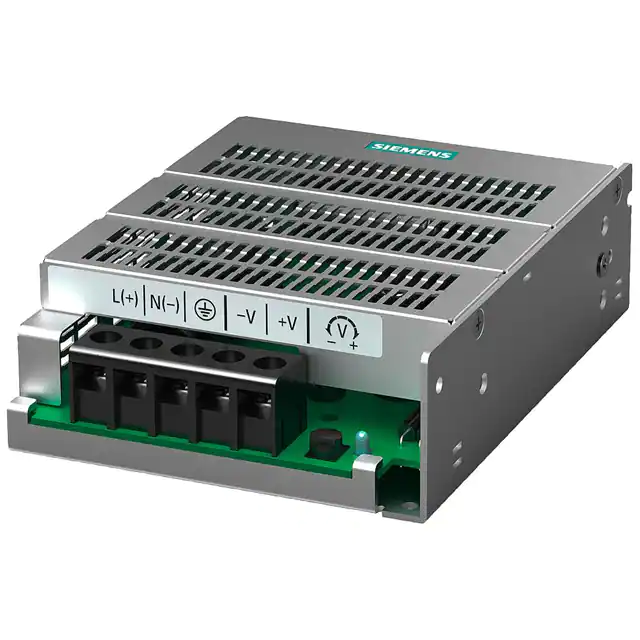

6EP13321LD00AC/DC CONVERTER 24V 74W |
1 | - |
|
数据表 |
6EP1 | Bulk | Active | Enclosed | 1 | 24V | - | - | 74W | - | - | 85 ~ 264 VAC | - | 3.1 A | - | - | Hazardous Locations, Industrial, ITE (Commercial) | - | - | - | - | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | Chassis Mount | 1.50" L x 3.82" W x 5.04" H (38.0mm x 97.0mm x 128.0mm) | ||
|
TXH 060-124AC/DC CONVERTER 24V 60W |
0 | - |
|
数据表 |
TXH 060 (50-60W) | Box | Active | Enclosed | 1 | 24V | - | - | 60W | - | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 2.5 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 1.99" W x 1.50" H (76.3mm x 50.6mm x 38.0mm) | ||
|

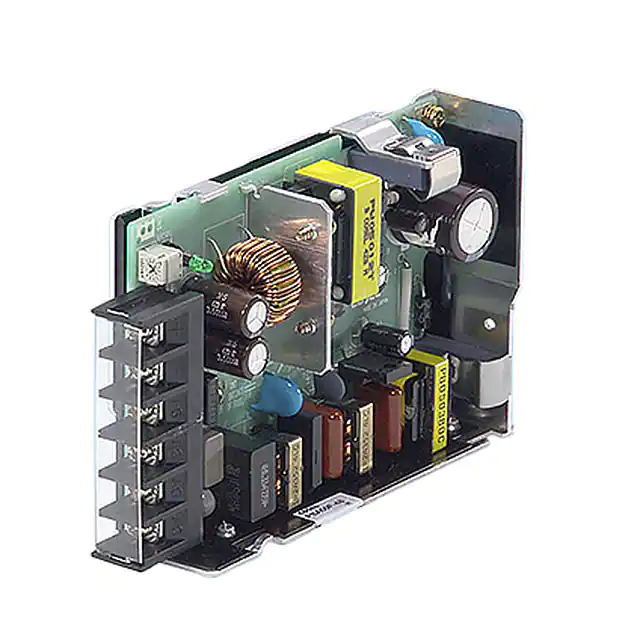

PBW50F-12AC/DC CONVERTER +/-12V 50W |
0 | - |
|
数据表 |
PBW (50W) | Box | Active | Enclosed | 2 | 12V | -12V | - | 50W | - | - | 85 ~ 264 VAC | - | 2.1 A | - | 2.7 A | ITE (Commercial) | - | - | - | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
LFWLT150-1301AC/DC CONVERTER 12V 100W |
0 | - |
|
数据表 |
WLT150 (150W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 100W (150W Forced Air) | - | - | 90 ~ 264 VAC, 120 ~ 390 VDC | - | 8.33 A | - | - | ITE (Commercial) | - | - | - | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) | ||
|
PBW30F-15-NAC/DC CONVERTER +/-15V 30W |
1 | - |
|
数据表 |
PBW (30W) | Box | Active | Enclosed | 2 | 15V | -15V | - | 30W | - | - | 85 ~ 264 VAC | - | 1 A | - | 1.4 A | ITE (Commercial) | - | - | - | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
ZWS75BAF-5AC/DC CONVERTER 5V 75W |
0 | - |
|
数据表 |
ZWS75BAF (75W) | Bulk | Active | Open Frame | 1 | 5V | - | - | 75W | - | - | 85 ~ 265 VAC | - | 15 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.90" L x 1.97" W x 1.30" H (150.0mm x 50.0mm x 33.0mm) | ||
|
|

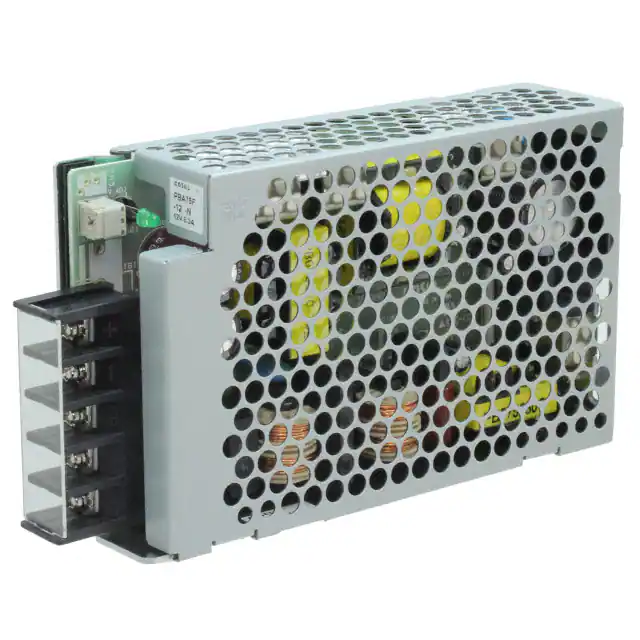

PBA75F-12-NAC/DC CONVERTER 12V 75W |
0 | - |
|
数据表 |
PBA (75W) | Box | Active | Enclosed | 1 | 12V | - | - | 75W | - | - | 85 ~ 264 VAC | - | 6.3 A | - | - | ITE (Commercial) | - | - | - | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
CUS150M-12/BAC/DC CONVERTER 12V 120W |
1 | - |
|
数据表 |
CUS150M (150W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 120W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 10 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 85°C (With Derating) | Baseplate, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) | ||
|
|
CUS150M-18/BAC/DC CONVERTER 18V 120W |
0 | - |
|
数据表 |
CUS150M (150W) | Bulk | Active | Open Frame | 1 | 18V | - | - | 120W (150W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.66 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 85°C (With Derating) | Baseplate, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.5mm) | ||
|
NMP1K2-##CCCC-00AC/DC CONVERTER 4X5V 720W |
0 | - |
|
数据表 |
NMP (1200W) | Box | Active | Enclosed | 4 | 5V | 5V | 5V | 720W | 5V | - | 90 ~ 264 VAC, 120 ~ 370 VDC | - | 36 A | - | 36 A | ITE (Commercial), Medical | - | 36 A | 36 A | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 9.84" L x 5.00" W x 1.61" H (250.0mm x 127.0mm x 41.0mm) | ||
|
UHP-350-4.2AC/DC CONVERTER 4.2V 252W |
1 | - |
|
数据表 |
UHP-350 (350W) | Box | Active | Enclosed | 1 | 4.2V | - | - | 252W | - | - | 90 ~ 264 VAC, 127 ~ 370 VDC | - | 60 A | - | - | Household Appliances, ITE (Commercial) | - | - | - | 3.75 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.66" L x 2.44" W x 1.22" H (220.0mm x 62.0mm x 31.0mm) | ||
|
S8FS-G03015CAC/DC CONVERTER 15V 36W |
1 | - |
|
数据表 |
S8FS-G (30W) | Box | Active | Enclosed | 1 | 15V | - | - | 36W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.4 A | - | - | Industrial, ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.38" H (99.0mm x 82.0mm x 35.0mm) | ||
|

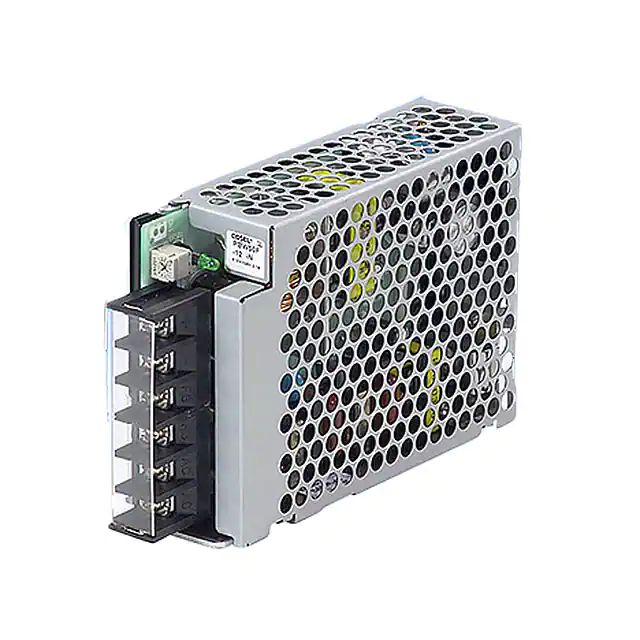

PBW50F-12-NAC/DC CONVERTER +/-12V 50W |
0 | - |
|
数据表 |
PBW (50W) | Box | Active | Enclosed | 2 | 12V | -12V | - | 50W | - | - | 85 ~ 264 VAC | - | 2.1 A | - | 2.7 A | ITE (Commercial) | - | - | - | - | - | DC Input Capable, Universal Input | Chassis Mount | - | ||
|
NEVO+600ML-8035-DK000AC/DC CONVERTER 3X24V 2X12V 450W |
0 | - |
|
数据表 |
NEVO+600ML | Box | Active | Enclosed | 5 | 24V | 24V | 24V | 450W | 12V | 12V | 85 ~ 264 VAC, 120 ~ 300 VDC | - | 3.125 A | - | 3.125 A | Medical | 5 A | 7.5 A | 5 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 5.27" L x 3.06" W x 1.61" H (133.8mm x 77.7mm x 41.0mm) | ||
|
NEVO+600ML-8011-DK000AC/DC CONVERTER 2X24V 2X5V 400W |
0 | - |
|
数据表 |
NEVO+600ML | Box | Active | Enclosed | 4 | 24V | 24V | 5V | 400W | 5V | - | 85 ~ 264 VAC, 120 ~ 300 VDC | - | 3.125 A | - | 3.125 A | Medical | - | 25 A | 25 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 5.27" L x 3.06" W x 1.61" H (133.8mm x 77.7mm x 41.0mm) | ||
|
NEVO+600ML-3820-DK000AC/DC CONVERTER 3X24V 12V 450W |
0 | - |
|
数据表 |
NEVO+600ML | Box | Active | Enclosed | 4 | 24V | 24V | 24V | 450W | 12V | - | 85 ~ 264 VAC, 120 ~ 300 VDC | - | 7.5 A | - | 3.125 A | Medical | - | 3.125 A | 15 A | 4 kV | -20°C ~ 70°C | Adjustable Output, Load Sharing, PFC, Remote Sense, Universal Input | Chassis Mount | 5.27" L x 3.06" W x 1.61" H (133.8mm x 77.7mm x 41.0mm) |
