交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZT90-522AC/DC CONVERTER 5V +/-12V 92W TDK-Lambda |
0 | - |
|
数据表 |
ZT | Bulk | Obsolete | Open Frame | 3 | 5V | 12V | -12V | 92W | - | - | 85 ~ 265 VAC, 230 ~ 330 VDC | - | 10 A | - | 3 A | ITE (Commercial) | - | 500 mA | - | 3.75 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.07" L x 3.70" W x 1.42" H (205.0mm x 94.0mm x 36.0mm) |
|
CUS400M-15/AX5AC/DC CONVERTER 15V 250W TDK-Lambda |
1 | - |
|
数据表 |
CUS400M (400W) | Box | Active | Enclosed | 1 | 15V | - | - | 250W (400W Forced Air) | - | - | 85 ~ 264 VAC | - | 16.67 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.67" H (142.0mm x 90.0mm x 42.5mm) |
|
|
ZT90-5FFAC/DC CONVERTER 5V +/-15V 95W TDK-Lambda |
0 | - |
|
数据表 |
ZT | Bulk | Obsolete | Open Frame | 3 | 5V | 15V | -15V | 95W | - | - | 85 ~ 265 VAC, 230 ~ 330 VDC | - | 10 A | - | 2.5 A | ITE (Commercial) | - | 500 mA | - | 3.75 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.07" L x 3.70" W x 1.42" H (205.0mm x 94.0mm x 36.0mm) |
|
|
CUS400M-28/AX5AC/DC CONVERTER 28V 250W TDK-Lambda |
1 | - |
|
数据表 |
CUS400M (400W) | Box | Active | Enclosed | 1 | 28V | - | - | 250W (400W Forced Air) | - | - | 85 ~ 264 VAC | - | 8.93 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.67" H (142.0mm x 90.0mm x 42.5mm) |
|
|
CUS400M-36/AX5AC/DC CONVERTER 36V 250W TDK-Lambda |
1 | - |
|
数据表 |
CUS400M (400W) | Box | Active | Enclosed | 1 | 36V | - | - | 250W (400W Forced Air) | - | - | 85 ~ 264 VAC | - | 6.94 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.67" H (142.0mm x 90.0mm x 42.5mm) |
|
EVS36-8R4AC/DC CONVERTER 36V 300W TDK-Lambda |
1 | - |
|
数据表 |
EVS (300/600W) | Bulk | Active | Enclosed | 1 | 36V | - | - | 300W | - | - | 85 ~ 265 VAC | - | 8.4 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.09" L x 3.31" W x 1.65" H (180.0mm x 84.0mm x 42.0mm) |
|

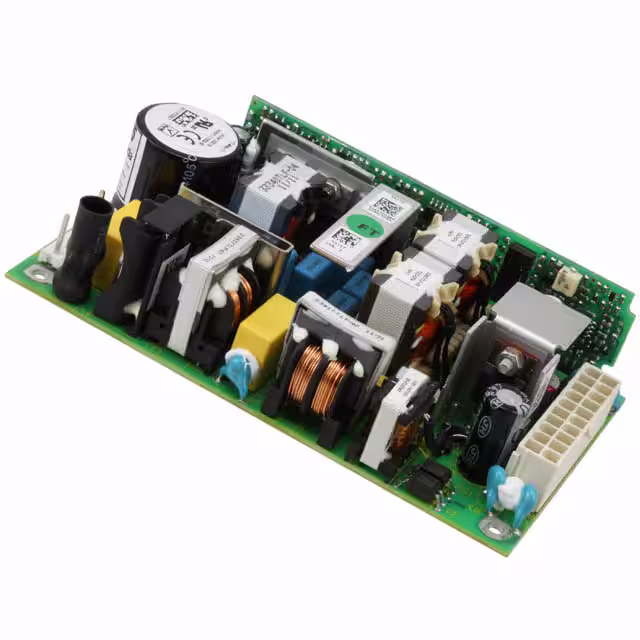

NVM100015AC/DC CONVERTER 12V 180W TDK-Lambda |
1 | - |
|
数据表 |
NVM175 (180W) | Bulk | Active | Open Frame | 1 | 12V | - | - | 180W | - | - | 90 ~ 264 VAC | - | 15 A | - | - | Medical | - | - | - | 4.5 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | Chassis Mount | 5.00" L x 3.00" W x 1.02" H (127.0mm x 76.0mm x 26.0mm) |
|
JWT75-522AC/DC CONVERTER 5V +/-12V 75W TDK-Lambda |
1 | - |
|
数据表 |
JWT (75W) | Bulk | Not For New Designs | Open Frame | 3 | 5V | 12V | -12V | 75W | - | - | 85 ~ 265 VAC | - | 8 A | - | 4 A | ITE (Commercial) | - | 500 mA | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.40" L x 3.62" W x 1.65" H (188.0mm x 92.0mm x 42.0mm) |
|
|
JWT75-5FFAC/DC CONVERTER 5V +/-15V 75W TDK-Lambda |
1 | - |
|
数据表 |
JWT (75W) | Bulk | Not For New Designs | Open Frame | 3 | 5V | 15V | -15V | 75W | - | - | 85 ~ 265 VAC | - | 8 A | - | 3.2 A | ITE (Commercial) | - | 500 mA | - | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 7.40" L x 3.62" W x 1.65" H (188.0mm x 92.0mm x 42.0mm) |
|
CUS350MP-1000-48AC/DC CONVERTER 48V 350W TDK-Lambda |
1 | - |
|
数据表 |
CUS350MP (350W) | Box | Active | Open Frame | 1 | 48V | - | - | 350W (499W Forced Air) | - | - | 85 ~ 265 VAC, 120 ~ 370 VDC | - | 7.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 7.20" L x 3.46" W x 1.73" H (183.0mm x 88.0mm x 44.0mm) |
