交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率（瓦特） | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAD180US48B-MISOLATED / 180W / VOUT:48 P-DUKE Technology |
2 | - |
|
数据表 |
MAD180 (180W) | Box | Active | Open Frame | 1 | 48V | - | - | 150W (180W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3.75 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.36" H (76.2mm x 50.8mm x 34.5mm) |
|
|
MAF300US48B-MU2F4ISOLATED / 300W / VOUT: 48 P-DUKE Technology |
9 | - |
|
数据表 |
MAF300 (300W) | Box | Active | Open Frame | 1 | 48V | - | - | 180W (300W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 6.25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) |
|
|
MAF300US24B-MU2F4ISOLATED / 300W / VOUT: 24 P-DUKE Technology |
8 | - |
|
数据表 |
MAF300 (300W) | Box | Active | Open Frame | 1 | 24V | - | - | 180W (300W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 12.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) |
|
|
MAF300US12B-MU2F4ISOLATED / 300W / VOUT: 12 P-DUKE Technology |
3 | - |
|
数据表 |
MAF300 (300W) | Box | Active | Open Frame | 1 | 12V | - | - | 180W (300W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 25 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 1.56" H (116.8mm x 62.0mm x 39.6mm) |
|
|
MAH450US24-YISOLATED / 450W / VOUT:24 P-DUKE Technology |
3 | - |
|
数据表 |
MAH450 (450W) | Box | Active | Open Frame | 1 | 24V | - | - | 319W (450W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 11.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) |
|
|
MAH450US48-YISOLATED / 450W / VOUT:48 P-DUKE Technology |
2 | - |
|
数据表 |
MAH450 (450W) | Box | Active | Open Frame | 1 | 48V | - | - | 319W (451W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 9.4 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) |
|
|
MAH450US12-YISOLATED / 450W / VOUT:12 P-DUKE Technology |
5 | - |
|
数据表 |
MAH450 (450W) | Box | Active | Enclosed | 1 | 12V | - | - | 250W (450W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 20.8 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.0mm) |
|

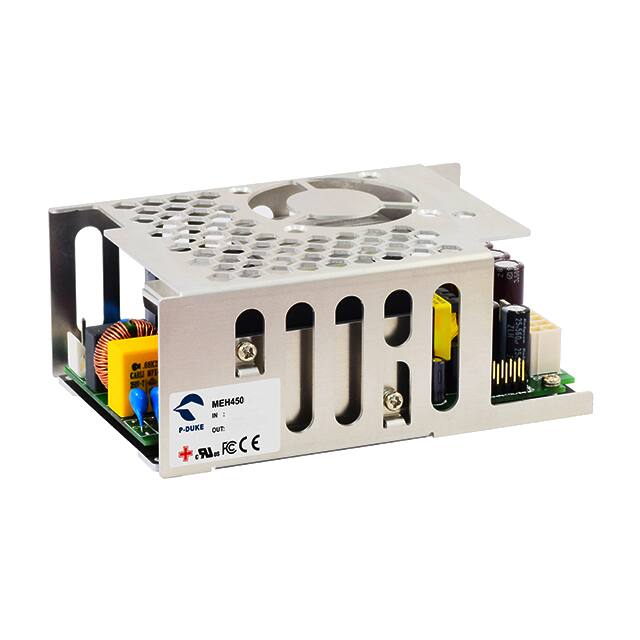

MEH450US24-Y2AC/DC CONVERTER 24V 450W P-DUKE Technology |
2 | - |
|
数据表 |
MEH450 | Box | Active | Enclosed | 1 | 24V | - | - | 450W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 18.75 A | - | - | ITE (Commercial) | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|
|
MEH450US12-Y2ISOLATED / 450W / VOUT:12 P-DUKE Technology |
3 | - |
|
数据表 |
MAH450 (450W) | Box | Active | Enclosed | 1 | 12V | - | - | 250W (450W Forced Air) | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 37.5 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|
|
MAC15US05DISOLATED / 15W / VOUT: 5 P-DUKE Technology |
5 | - |
|
数据表 |
MAC15 (15W) | Box | Active | Open Frame | 1 | 5V | - | - | 15W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.61" L x 1.00" W x 0.73" H (66.3mm x 25.4mm x 18.5mm) |
