| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

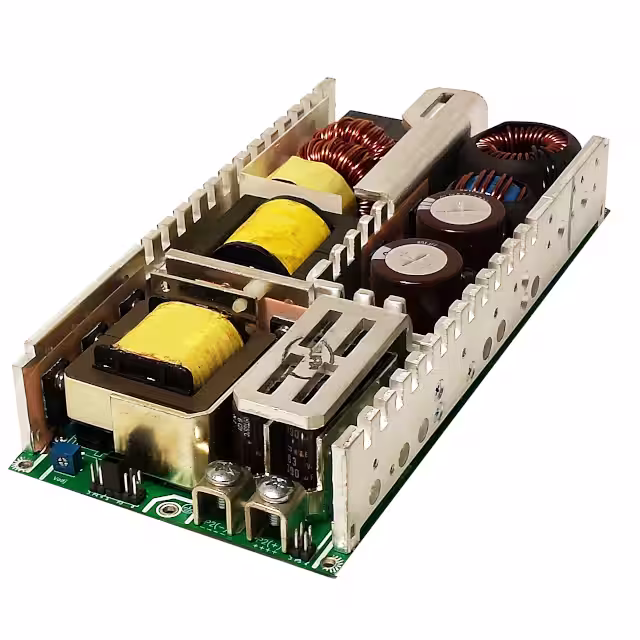

1010922NXT-400-1004 Integrated Power Designs |
3 | - |
|
数据表 |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 12V | - | - | 400W | - | - | 100 ~ 240 VAC | - | 33.3 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) |
|
1010930NXT-400-1004,RE STBY Integrated Power Designs |
23 | - |
|
数据表 |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 12V | - | - | 400W | - | - | 100 ~ 240 VAC | - | 33.3 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) |
|
1010945NXT-400-1003,LS-RE Integrated Power Designs |
17 | - |
|
数据表 |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 5V | - | - | 400W | - | - | 100 ~ 240 VAC | - | 80 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) |
|
1010944NXT-400-1002,LS-RE Integrated Power Designs |
10 | - |
|
数据表 |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 3.3V | - | - | 400W | - | - | 100 ~ 240 VAC | - | 80 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) |
|
1010947NXT-400-1005,LS-RE Integrated Power Designs |
10 | - |
|
数据表 |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 15V | - | - | 400W | - | - | 100 ~ 240 VAC | - | 26.7 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) |
|
1010949NXT-400-1007,LS-RE Integrated Power Designs |
2 | - |
|
数据表 |
NXT-400 (400W) | Box | Active | Open Frame | 1 | 28V | - | - | 400W | - | - | 100 ~ 240 VAC | - | 14.3 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.00" L x 3.88" W x 1.50" H (203.2mm x 98.5mm x 38.0mm) |
|
1011743NXT-400-1006-FN Integrated Power Designs |
15 | - |
|
数据表 |
NXT-400 (400W) | Box | Active | Enclosed | 1 | 24V | - | - | 400W | - | - | 100 ~ 240 VAC | - | 16.7 A | - | - | ITE (Commercial), Medical | - | - | - | - | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 9.40" L x 4.06" W x 1.80" H (238.8mm x 103.1mm x 45.7mm) |
|

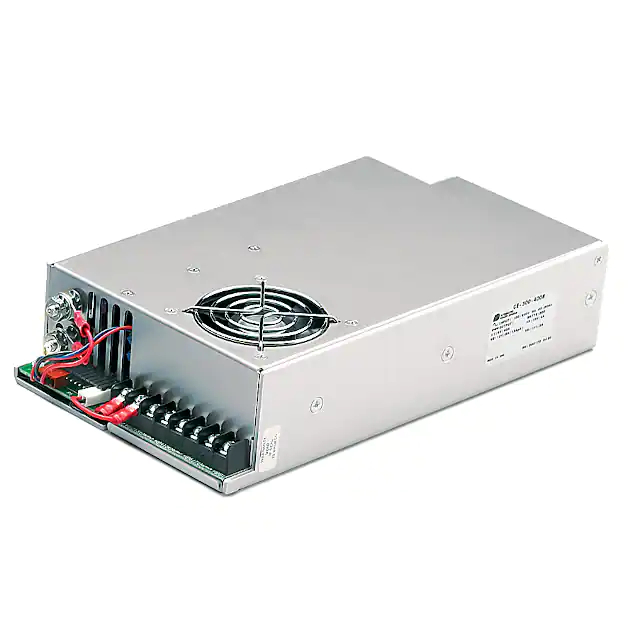

1010138CE-300-2002 Integrated Power Designs |
4 | - |
|
数据表 |
CE-300 (300W) | Box | Not For New Designs | Enclosed | 2 | 12V | 12V | - | 300W | - | - | 85 ~ 264 VAC | - | 16 A | - | 8 A | ITE (Commercial) | - | - | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.90" W x 1.95" H (215.9mm x 124.5mm x 49.5mm) |
|
1010184CE-300-3004 Integrated Power Designs |
14 | - |
|
数据表 |
CE-300 (300W) | Box | Not For New Designs | Enclosed | 3 | 12V | 12V | 5V | 300W | - | - | 85 ~ 264 VAC | - | 16 A | - | 8 A | ITE (Commercial) | - | 6 A | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.90" W x 1.95" H (215.9mm x 124.5mm x 49.5mm) |
|
1010183CE-300-3003 Integrated Power Designs |
10 | - |
|
数据表 |
CE-300 (300W) | Box | Not For New Designs | Enclosed | 3 | 5V | 15V | 15V | 300W | - | - | 85 ~ 264 VAC | - | 40 A | - | 6 A | ITE (Commercial) | - | 4 A | - | - | 0°C ~ 50°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.50" L x 4.90" W x 1.95" H (215.9mm x 124.5mm x 49.5mm) |
