交流直流转换器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 功率(瓦特) | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输入 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 6 | 电流 - 输出 2 | 应用 | 电流 - 输出 5 | 电流 - 输出 3 | 电流 - 输出 4 | 电压 - 隔离 | 效率 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WMA350H-48AC/DC PS (ENCLOSED TYPE) 350W, |
10 | - |
|
数据表 |
WMA (350W) | Box | Active | Enclosed | 1 | 48V | - | - | 350W | - | - | 85 ~ 264 VAC | - | 7.3 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
WMA350H-12AC/DC PS (ENCLOSED TYPE) 350W, |
10 | - |
|
数据表 |
WMA (350W) | Box | Active | Enclosed | 1 | 12V | - | - | 348W | - | - | 85 ~ 264 VAC | - | 29 A | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | -20°C ~ 70°C | Adjustable Output, Universal Input | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) | ||
|
RPS-400-12-TFAC/DC CONVERTER 12V 250W |
20 | - |
|
数据表 |
RPS-400 (400W) | Box | Active | Enclosed | 1 | 12V | - | - | 250W (400W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 20.8 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.11" L x 3.39" W x 2.62" H (129.8mm x 86.1mm x 66.5mm) | ||
|
RPS-400-36-SFAC/DC CONVERTER 36V 252W |
4 | - |
|
数据表 |
RPS-400 (400W) | Box | Active | Enclosed | 1 | 36V | - | - | 252W (403W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 7 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 3.39" W x 1.69" H (160.0mm x 86.1mm x 42.9mm) | ||
|

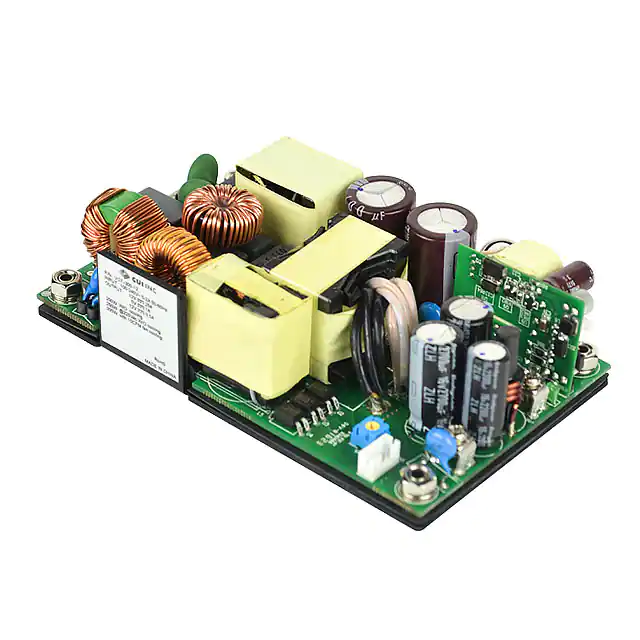

VOF-300-24AC/DC CONVERTER 24V 200W |
19 | - |
|
数据表 |
VOF-300 (300W) | Box | Active | Open Frame | 1 | 24V | - | - | 200W (300W Forced Air) | - | - | 90 ~ 264 VAC | - | 8.33 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) | ||
|
LFM200M120CSWITCHING POWER SUPPLIES AC-DC S |
0 | - |
|
数据表 |
LFM200M (200W) | Tray | Active | Enclosed | 1 | 12V | - | - | 170W (200W Forced Air) | - | - | 85 ~ 264 VAC, 115 ~ 370 VDC | - | 16.67 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) | ||
|
LFM200M240CSWITCHING POWER SUPPLIES AC-DC S |
0 | - |
|
数据表 |
LFM200M (200W) | Tray | Active | Enclosed | 1 | 24V | - | - | 170W (200W Forced Air) | - | - | 85 ~ 264 VAC, 115 ~ 370 VDC | - | 8.33 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) | ||
|
LFM200M150CSWITCHING POWER SUPPLIES AC-DC S |
0 | - |
|
数据表 |
LFM200M (200W) | Tray | Active | Enclosed | 1 | 15V | - | - | 170W (200W Forced Air) | - | - | 85 ~ 264 VAC, 115 ~ 370 VDC | - | 13.33 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) | ||
|
LFM200M300CSWITCHING POWER SUPPLIES AC-DC S |
0 | - |
|
数据表 |
LFM200M (200W) | Tray | Active | Enclosed | 1 | 30V | - | - | 170W (200W Forced Air) | - | - | 85 ~ 264 VAC, 115 ~ 370 VDC | - | 6.66 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) | ||
|
LFM200M280CSWITCHING POWER SUPPLIES AC-DC S |
0 | - |
|
数据表 |
LFM200M (200W) | Tray | Active | Enclosed | 1 | 28V | - | - | 170W (200W Forced Air) | - | - | 85 ~ 264 VAC, 115 ~ 370 VDC | - | 7.14 A | - | - | Household Appliances, ITE (Commercial), Medical | - | - | - | 4.25 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) | ||
|
180ACMOP_12SC4OPEN FRAME AC DC CONVERTERS 1 OU |
5 | - |
|
数据表 |
180ACMOP_S4 (180W) | Retail Package | Active | Open Frame | 1 | 12V | - | - | 180W | - | - | 90 ~ 264 VAC | - | - | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | ||
|
180ACMOP_24SC4OPEN FRAME AC DC CONVERTERS 1 OU |
5 | - |
|
数据表 |
180ACMOP_S4 (180W) | Retail Package | Active | Open Frame | 1 | 24V | - | - | 180W | - | - | 90 ~ 264 VAC | - | - | - | - | ITE (Commercial), Medical | - | - | - | 4 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | ||
|
HRP-300N3-48PWR SUPP, BATT & COND |
12 | - |
|
数据表 |
HRP-300N3 (300W) | Bulk | Active | Enclosed | 1 | 48V | - | - | 336W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 7 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 4.13" W x 1.61" H (199.0mm x 105.0mm x 41.0mm) | ||
|
TMM 40115CAC/DC CONVERTER 15V 40W |
6 | - |
|
数据表 |
TMM 40 (40W) | Box | Active | Enclosed | 1 | 15V | - | - | 40W | - | - | 85 ~ 264 VAC, 120 ~ 370 VDC | - | 2.66 A | - | - | Industrial, ITE (Commercial), Medical | - | - | - | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.51" W x 1.34" H (112.0mm x 63.8mm x 34.0mm) | ||
|
CUT75-522/TAC/DC CONVERTER 5V +/-12V 75W |
7 | - |
|
数据表 |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 5V | 12V | -12V | 75W | - | - | 85 ~ 265 VAC | - | 8 A | - | 3 A | ITE (Commercial) | - | 1 A | - | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | ||
|
VS75E-12AC/DC CONVERTER 6X12V 76W |
5 | - |
|
数据表 |
VS-E (150W) | Box | Active | Open Frame | 6 | 12V | 12V | 12V | 76W | 12V | 12V | 85 ~ 132 VAC | 12V | 6.3 A | 6.3 A | 6.3 A | ITE (Commercial) | 6.3 A | 6.3 A | 6.3 A | 2 kV | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.91" L x 1.97" W x 1.14" H (150.1mm x 50.0mm x 29.0mm) | ||
|
RPS-500-15AC/DC CONVERTER 15V 320W |
10 | - |
|
数据表 |
RPS-500 (500W) | Box | Active | Open Frame | 1 | 15V | - | - | 320W (500W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 21.3 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) | ||
|
TML 40115CAC/DC CONVERTER 15V 40W |
10 | - |
|
数据表 |
TML (40W) | Box | Active | Enclosed | 1 | 15V | - | - | 40W | - | - | 90 ~ 264 VAC, 100 ~ 375 VDC | - | 2.666 A | - | - | ITE (Commercial) | - | - | - | 3 kV | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.50" W x 1.28" H (112.0mm x 63.5mm x 32.5mm) | ||
|
RPS-500-36-CAC/DC CONVERTER 36V 310W |
5 | - |
|
数据表 |
RPS-500 (500W) | Box | Active | Enclosed | 1 | 36V | - | - | 310W (500W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 8.6 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | ||
|
RPS-500-15-CAC/DC CONVERTER 15V 311W |
4 | - |
|
数据表 |
RPS-500 (500W) | Box | Active | Enclosed | 1 | 15V | - | - | 311W (500W Forced Air) | - | - | 80 ~ 264 VAC, 113 ~ 370 VDC | - | 20.7 A | - | - | Medical | - | - | - | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) |
