微调器、可变电容器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 电容范围 | 调整类型 | 介电材料 | 品质因数 (Q) @ 频率 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 工作温度 | 额定电压 | 安装类型 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JR150HVCAP TRIMMER 3-15PF 350V SMD Knowles Voltronics |
955 | - |
|
数据表 |
JR | Bulk | Active | 3 ~ 15pF | Top | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | 350 V | Surface Mount | General Purpose |
|
|
KM15HVCAP TRIMMER 1-15PF 750V SMD Knowles Voltronics |
100 | - |
|
数据表 |
K_HV | Bulk | Active | 1 ~ 15pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.200" Dia (5.08mm) | 0.470" (11.94mm) | -65°C ~ 125°C | 750 V | Surface Mount | General Purpose |
|
|
A1M12HVSCAP TRIMMER 0.6-12PF 500V SMD Knowles Voltronics |
360 | - |
|
数据表 |
A1_HV | Bulk | Active | 0.6 ~ 12pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.120" Dia (3.05mm) | 0.500" (12.70mm) | -65°C ~ 125°C | 500 V | Surface Mount | General Purpose |
|
|
AT10-4ECAP TRIMMER 0.8-10PF 250V PNL MT Knowles Voltronics |
80 | - |
|
数据表 |
A | Bulk | Active | 0.8 ~ 10pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 0.980" (24.89mm) | -65°C ~ 125°C | 250 V | Panel Mount | General Purpose |
|

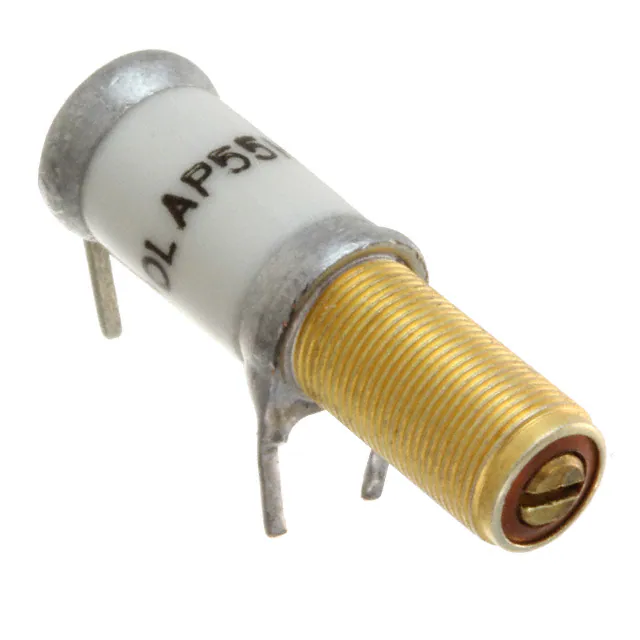

AP55HVCAP TRIMMER 1.5-55PF 600V TH Knowles Voltronics |
8 | - |
|
数据表 |
A_HV | Bulk | Active | 1.5 ~ 55pF | Side | Polytetrafluoroethylene (PTFE) | 780 @ 100MHz | 0.300" Dia (7.62mm) | 1.000" (25.40mm) | -65°C ~ 125°C | 600 V | Through Hole | General Purpose |
|
NMAM25HVCAP TRIMMER 1-23PF 750V SMD Knowles Voltronics |
18 | - |
|
数据表 |
A_HV | Bulk | Active | 1 ~ 23pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 0.480" (12.19mm) | -65°C ~ 125°C | 750 V | Surface Mount | Non-Magnetic |
|
NMNT10-12ECAP TRIMMER 2-10PF 6000V PNL MNT Knowles Voltronics |
7 | - |
|
数据表 |
NT | Bulk | Active | 2 ~ 10pF | Top | Polytetrafluoroethylene (PTFE) | - | 0.550" Dia (13.97mm) | 1.845" (46.86mm) | -65°C ~ 125°C | 6000 V | Panel Mount | Non-Magnetic |
|
|
AT55HVCAP TRIMMER 1.5-55PF 600V PNL MT Knowles Voltronics |
8 | - |
|
数据表 |
A_HV | Bulk | Active | 1.5 ~ 55pF | Top | Polytetrafluoroethylene (PTFE) | 780 @ 100MHz | 0.300" Dia (7.62mm) | 0.980" (24.89mm) | -65°C ~ 125°C | 600 V | Panel Mount | General Purpose |
|
NMA4M5HVCAP TRIMMER 0.6-5PF 500V SMD Knowles Voltronics |
18 | - |
|
数据表 |
A4_HV | Bulk | Active | 0.6 ~ 5pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.120" Dia (3.05mm) | 0.325" (8.26mm) | -65°C ~ 125°C | 500 V | Surface Mount | Non-Magnetic |
|

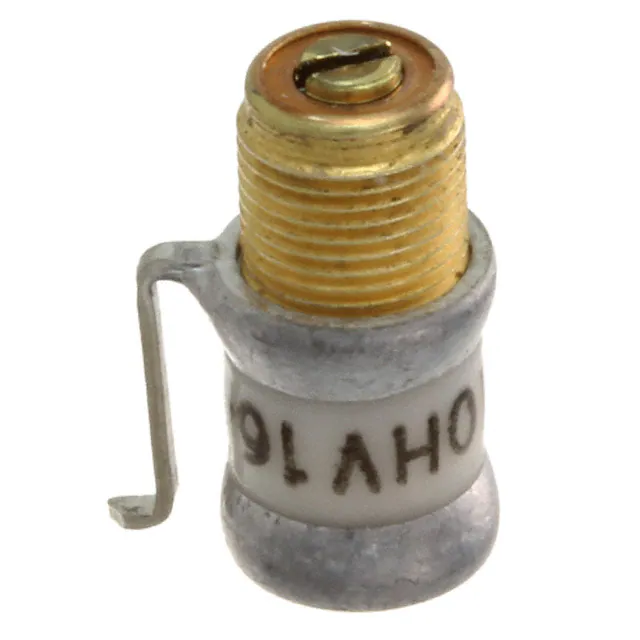

NMKM10HVCAP TRIMMER 1-9PF 1000V SMD Knowles Voltronics |
5 | - |
|
数据表 |
K_HV | Bulk | Active | 1 ~ 9pF | Top | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.230" Dia (5.84mm) | 0.470" (11.94mm) | -65°C ~ 125°C | 1000 V | Surface Mount | Non-Magnetic |
