拨动开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 电路 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 特性 | 执行器类型 | 执行器长度 | 开关功能 | 照明 | 照明类型，颜色 | 防护等级 | 照明电压（额定值） | 工作温度 | 衬套螺纹 | 端接样式 | 面板开孔尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

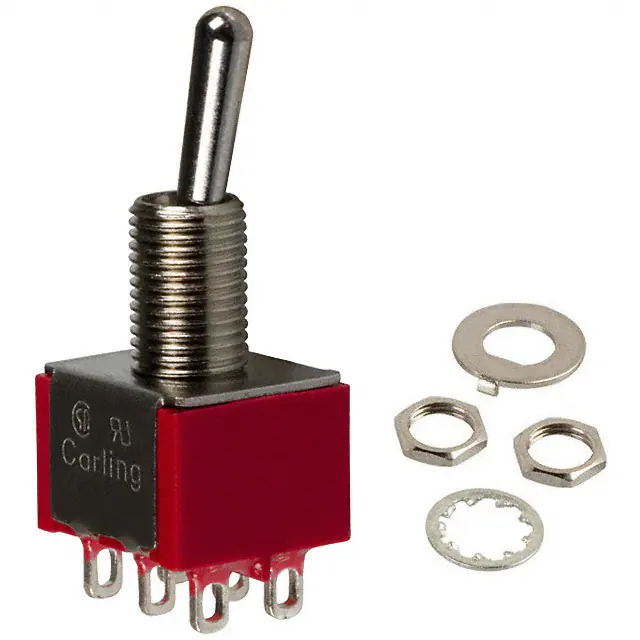

2M1-DP3-T1-B1-M1QESWITCH TOGGLE DPDT 5A 125V Carling Technologies |
125 | - |
|
数据表 |
2M | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 125 V | 28 V | Epoxy Sealed Terminals | Standard Round | 10.40mm | On-Off-On | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|

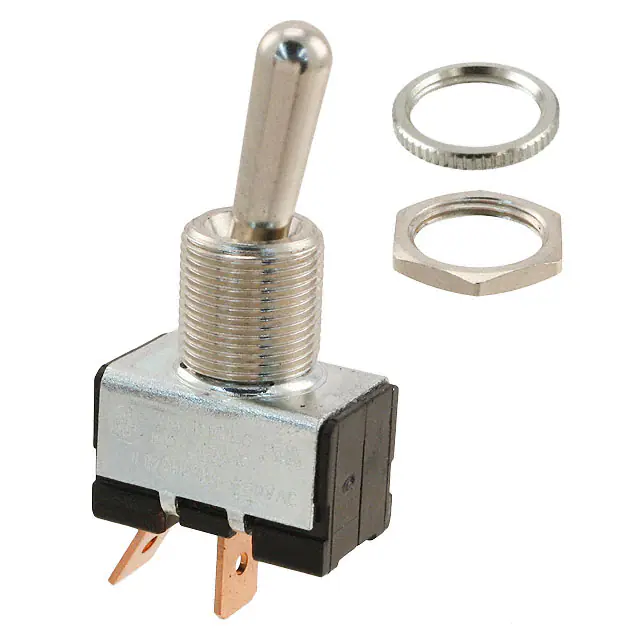

CA201-73SWITCH TOGGLE SPST 20A 125V Carling Technologies |
110 | - |
|
数据表 |
C | Box | Active | Panel Mount | SPST | 20A (AC) | 125 V | - | - | Standard Round | 17.45mm | On-Off | Non-Illuminated | - | - | - | 0°C ~ 85°C | 15/32-32 | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia |
|
6GM5M-78SWITCH TOGGLE DPDT 15A 125V Carling Technologies |
1,468 | - |
|
数据表 |
G | Box | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | - | Standard Round | 17.45mm | Mom-Off-Mom | Non-Illuminated | - | - | - | 0°C ~ 85°C | 15/32-32 | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia |
|
6GM5B-78SWITCH TOGGLE DPDT 15A 125V Carling Technologies |
113 | - |
|
数据表 |
G | Box | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | - | Standard Round | 17.45mm | On-Off-Mom | Non-Illuminated | - | - | - | 0°C ~ 85°C | 15/32-32 | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia |
|
2M1-SP3-T2-B4-M7RESWITCH TOGGLE SPDT 0.4VA 20V Carling Technologies |
288 | - |
|
数据表 |
2M | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | Epoxy Sealed Terminals | Standard Round | 5.40mm | On-Off-On | Non-Illuminated | - | - | - | -30°C ~ 85°C | Unthreaded | PC Pin | - |
|
2M1-SP4-T8-B0-M2QESWITCH TOGGLE SPDT 5A 125V Carling Technologies |
986 | - |
|
数据表 |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | Epoxy Sealed Terminals | Anti-Rotation | 17.50mm | Mom-Off-Mom | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C | 15/32-32 | PC Pin | Circular - 11.91mm Dia |
|
2M1-SP4-T1-B1-M1QESWITCH TOGGLE SPDT 5A 125V Carling Technologies |
359 | - |
|
数据表 |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | Epoxy Sealed Terminals | Standard Round | 10.40mm | Mom-Off-Mom | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C | 1/4-40 | Solder Lug | Circular - 6.35mm Dia |
|
2M1-SP1-T8-B0-M1QESWITCH TOGGLE SPDT 5A 125V Carling Technologies |
54 | - |
|
数据表 |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | Epoxy Sealed Terminals | Standard Round | 17.50mm | On-On | Non-Illuminated | - | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C | 15/32-32 | Solder Lug | Circular - 11.91mm Dia |
|

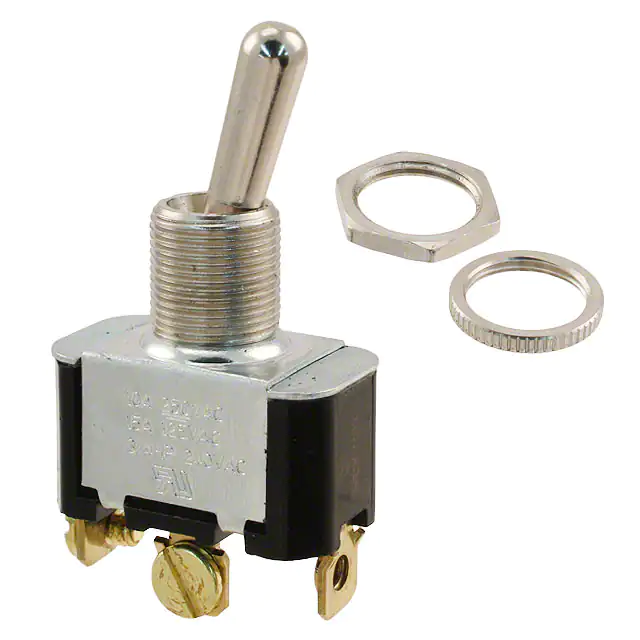

2FC54-73SWITCH TOGGLE SPDT 15A 125V Carling Technologies |
19 | - |
|
数据表 |
F | Bulk | Active | Panel Mount | SPDT | 15A (AC) | 125 V | - | - | Standard Round | 17.45mm | On-Off-On | Non-Illuminated | - | - | - | -17.8°C ~ 65.6°C | 15/32-32 | Screw Terminal | Circular - 12.70mm Dia |
|
|
2GL51-73SWITCH TOGGLE DPDT 15A 125V Carling Technologies |
81 | - |
|
数据表 |
G | Box | Active | Panel Mount | DPDT | 15A (AC) | 125 V | - | - | Standard Round | 17.45mm | On-On | Non-Illuminated | - | - | - | 0°C ~ 85°C | 15/32-32 | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia |
