电磁铁

制造商	系列	包装	产品状态	技术	类型	额定电压	行程长度	功率（瓦特）	直流电阻 (DCR)	衬套螺纹	占空比	安装类型	端接样式	尺寸 / 尺寸	轴直径	轴详细信息
Adafruit Industries LLC Delta Electronics Deltrol Controls DFRobot Ledex Dormeyer Saia Magnet-Schultz of America Makeblock Co., LTD. Olimex LTD Panasonic Industrial Automation Sales SparkFun Electronics Sumida America Components Inc. Switch Components TE Connectivity Aerospace, Defense and Marine	* - 100 1000 125 150 2000 3000 75 BTA DSML DSMS DSOL DSOS DSTL HDS1 HDS2 L-04 L-10 L-10-2 L-11 L-15-2 L-20 L-22 L-28 L-75-2 L-82 L-90 M-22 M-82 STA	Bag Box Bulk Retail Package Tray Tube	Active Obsolete	- Electromechanical	- Closed Frame (Pull) Closed Frame (Pull), Tubular Closed Frame (Push), Tubular Closed Frame (Rotary) Open Frame (Pull) Open Frame (Push) Open Frame Latching (Pull) Open Frame Latching (Push)	- 10.2VDC 10.4VDC 10.9VDC 102VDC 10VDC 11.5VDC 11VDC 12.1VDC 12.2VDC 12.3VDC 12.4VDC 12.7VDC 12.8VDC 12.9VDC 120VAC 12VAC 12VDC 13.2VDC 13.4VDC 13.8VDC 13.9VDC 13VDC 14.1VDC 14.5VDC 14VDC 15.5VDC 15VDC 16.9VDC 17.7VDC 17VDC 18.2VDC 18VAC 18VDC 19.4VDC 19.6VDC 204VDC 21VDC 22.5VDC 22VDC 23.8VDC 23VDC 24.5VDC 24.9VDC 240VAC 24VAC 24VDC 25VDC 26VDC 27VDC 28.7VDC 28VDC 29VDC 3.6VDC 3.9VDC 30VDC 32VDC 36VAC 36VDC 38VDC 3VDC 4.4VDC 4.5VDC 47VDC 48VAC 5 ~ 6VDC 5.2VDC 5.4VDC 5.7VDC 57VDC 5VDC 6.1VDC 6.2VDC 6.6VDC 6.7VDC 6VDC 7.2VDC 7.6VDC 8.1VDC 8.2VDC 8.3VDC 8.8VDC 8VDC 9.2VDC 9.4VDC 9.5VDC 9VDC	- 0.042" (1.07mm) 0.045" (1.14mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.100" (2.54mm) 0.106" (2.70mm) 0.125" (3.18mm) 0.138" (3.50mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.177" (4.50mm) 0.180" (4.57mm) 0.197" (5.00mm) 0.200" (5.08mm) 0.217" (5.50mm) 0.236" (6.00mm) 0.240" (6.10mm) 0.250" (6.35mm) 0.300" (7.62mm) 0.350" (8.89mm) 0.375" (9.53mm) 0.394" (10.00mm) 0.400" (10.16mm) 0.500" (12.70mm) 0.600" (15.24mm) 0.625" (15.88mm) 0.700" (17.78mm) 0.750" (19.05mm) 0.787" (20.00mm) 0.800" (20.32mm) 0.875" (22.20mm) 1.000" (25.40mm) 1.250" (31.75mm) 635µm 812.8µm	- 1.1 W 1.2 kW 1.2 W 1.3 W 1.35 W 1.4 W 1.6 W 1.9 W 10 W 10.2 W 10.5 W 10.7 W 11 W 11.2 W 12 W 12.4 W 12.5 W 13 W 14 W 14.5 W 15.1 W 15.6 W 17 W 17.5 W 17.9 W 178 W 18 W 19 W 19.8 W 2.1 W 2.4 kW 20 W 20.6 W 20.8 W 21 W 22 W 220 W 23.5 W 23.8 W 235 W 24 W 25 W 250 W 27.1 W 27.3 W 28 W 29.4 W 3 W 3.1 W 3.2 W 3.3 W 3.6 W 3.8 W 30 W 30.4 W 302 W 32 W 34 W 34.3 W 346 W 35 W 39.6 W 4 W 4.1 W 4.5 W 4.8 W 40 W 41 W 44 W 47 W 48 W 5 W 5.2 W 5.5 W 5.6 W 53 W 6 W 6.2 W 6.4 W 60 W 7 W 7.2 W 7.4 W 7.5 W 7.6 W 70 W 72 W 73 W 76 W 8 W 8.2 W 8.5 W 8.6 W 9 W 9.2 W 9.4 W 9.8 W 9.9 W 99 W	- 1.1Ohm 1.3Ohm 1.4Ohm 1.5Ohm 1.96Ohm 1.9Ohm 10.3Ohm 103Ohm 105Ohm 109Ohm 10Ohm 11.03Ohm 11.49Ohm 11.4Ohm 11.5Ohm 110.2Ohm 110.8Ohm 110Ohm 112Ohm 11Ohm 12.21Ohm 12.5Ohm 12.95Ohm 12.9Ohm 128.6Ohm 12Ohm 13.1Ohm 13.5Ohm 13.8Ohm 130Ohm 138Ohm 13Ohm 14.1Ohm 14.4Ohm 14.6Ohm 14.8Ohm 141.9Ohm 144Ohm 149.93Ohm 14Ohm 150.7Ohm 15Ohm 16.2Ohm 16.54Ohm 16.7Ohm 16.85Ohm 16.8Ohm 16.9Ohm 160Ohm 163Ohm 16Ohm 17.6Ohm 17.8Ohm 17Ohm 18.3Ohm 18.4Ohm 180Ohm 185Ohm 18Ohm 19.26Ohm 19.2Ohm 19.3Ohm 19.7Ohm 19.95Ohm 191.7Ohm 19Ohm 2.13Ohm 2.1Ohm 2.2Ohm 2.33Ohm 2.3Ohm 2.5Ohm 2.69Ohm 2.6Ohm 2.7Ohm 20.5Ohm 20.7Ohm 20Ohm 21.93Ohm 21.9Ohm 22.5Ohm 22.6Ohm 22.8Ohm 224Ohm 23.69Ohm 233Ohm 23Ohm 24.06Ohm 24.6Ohm 246Ohm 26.6Ohm 26Ohm 27.5Ohm 27.7Ohm 27Ohm 28.2Ohm 28.6Ohm 28.8Ohm 285Ohm 28Ohm 29.1Ohm 29.5Ohm 29Ohm 2Ohm 3.01Ohm 3.16Ohm 3.2Ohm 3.3Ohm 3.4Ohm 3.6Ohm 3.84Ohm 3.8Ohm 3.9Ohm 30.3Ohm 30.5Ohm 30.6Ohm 303Ohm 30Ohm 31.2Ohm 31.84Ohm 32Ohm 33.9Ohm 337Ohm 34.8Ohm 36.9Ohm 360mOhm 36Ohm 37.1Ohm 37.4Ohm 38Ohm 3Ohm 4.2Ohm 4.3Ohm 4.4Ohm 4.5Ohm 4.74Ohm 4.7Ohm 4.8Ohm 4.9Ohm 40.5Ohm 407Ohm 40Ohm 41Ohm 44.86Ohm 443.1Ohm 44Ohm 45.7Ohm 45.8Ohm 45Ohm 46.5Ohm 46.8Ohm 46.97Ohm 46Ohm 47.7Ohm 48.7Ohm 480Ohm 49.6Ohm 4Ohm 5.1Ohm 5.32Ohm 5.3Ohm 5.67Ohm 5.8Ohm 52Ohm 53.5Ohm 55.1Ohm 56.6Ohm 56.7Ohm 570mOhm 58.2Ohm 58.4Ohm 58.8Ohm 5Ohm 6.5Ohm 6.66Ohm 6.6Ohm 6.92Ohm 6.9Ohm 600mOhm 60Ohm 64Ohm 65Ohm 66Ohm 67Ohm 68Ohm 69.56Ohm 6Ohm 7.43Ohm 7.4Ohm 7.55Ohm 7.5Ohm 7.67Ohm 7.6Ohm 7.7Ohm 70.28Ohm 70.9Ohm 70Ohm 72Ohm 73.5Ohm 73Ohm 75.3Ohm 76.8Ohm 76Ohm 77.4Ohm 78Ohm 7Ohm 8.25Ohm 8.2Ohm 8.44Ohm 8.5Ohm 8.76Ohm 8.7Ohm 8.8Ohm 82Ohm 83.5Ohm 850mOhm 88.3Ohm 88Ohm 89Ohm 8Ohm 9.15Ohm 9.16Ohm 9.3Ohm 9.4Ohm 9.6Ohm 90Ohm 93.1Ohm 93Ohm 9Ohm	- 1-27 UNF 1-27 UNS 1-27 UNS-2A 10-32 NF-2A 15/32-32 UNF-2A 3/4-16 UNF 3/4-16 UNF-2A 3/4-24 UNS-2A 3/8-32 UNEF 5/16-18 UNF 9/16-18 UNF 9/16-18 UNF-2A	- Continuous Intermittent Pulse	- Chassis Mount Panel Mount	- Quick Connect Quick Connect - 0.110"/0.187" Quick Connect - 0.187" (4.7mm) Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm) Quick Connect - 0.250" (6.3mm) Screw Terminal Wire Leads Wire Leads with Connector	- 0.378" Dia x 0.520" L (9.60mm x 13.20mm) 0.500" Dia x 0.500" L (12.70mm x 12.70mm) 0.500" Dia x 1.000" L (12.70mm x 25.40mm) 0.504" Dia x 0.689" L (12.80mm x 17.50mm) 0.512" L x 0.492" W x 0.787" H (13.00mm x 12.50mm x 20.00mm) 0.520" Dia x 0.620" L (13.21mm x 15.75mm) 0.520" Dia x 1.050" L (13.21mm x 26.67mm) 0.622" L x 0.304" W x 0.393" H (15.80mm x 7.72mm x 9.98mm) 0.628" L x 0.315" W x 0.400" H (15.95mm x 8.00mm x 10.16mm) 0.630" L x 0.320" W x 0.400" H (16.00mm x 8.13mm x 10.16mm) 0.642" L x 0.406" W x 0.315" H (16.30mm x 10.30mm x 8.00mm) 0.737" Dia x 1.490" L (18.72mm x 37.85mm) 0.750" Dia x 0.500" L (19.05mm x 12.70mm) 0.750" Dia x 1.500" L (19.05mm x 38.10mm) 0.770" Dia x 1.550" L (19.56mm x 39.37mm) 0.772" Dia x 1.575" L (19.60mm x 40.00mm) 0.787" Dia (20.00mm) 0.787" L x 0.433" W x 0.572" H (20.00mm x 11.00mm x 12.00mm) 0.787" L x 0.591" W x 0.512" H (20.00mm x 15.00mm x 13.00mm) 0.790" L x 0.510" W x 0.590" H (20.07mm x 12.95mm x 14.99mm) 0.910" L x 0.280" W x 0.330" H (23.11mm x 7.11mm x 8.38mm) 0.940" L x 0.410" W x 0.460" H (23.88mm x 10.41mm x 11.68mm) 0.984" Dia (25.00mm) 0.990" Dia x 2.010" L (25.15mm x 51.05mm) 1.000" Dia x 0.530" L (25.40mm x 13.46mm) 1.000" Dia x 0.625" L (25.40mm x 15.88mm) 1.000" Dia x 1.125" L (25.40mm x 28.58mm) 1.000" Dia x 1.140" L (25.40mm x 28.96mm) 1.000" Dia x 2.000" L (25.40mm x 50.80mm) 1.020" Dia x 1.175" L (25.91mm x 29.85mm) 1.020" Dia x 2.050" L (25.91mm x 52.07mm) 1.024" L x 0.984" W x 0.866" H (26.00mm x 25.00mm x 22.00mm) 1.035" Dia x 1.875" L (26.29mm x 47.63mm) 1.043" L x 0.512" W x 0.591" H (26.50mm x 13.00mm x 15.00mm) 1.120" L x 0.512" W x 0.594" H (28.45mm x 13.01mm x 15.09mm) 1.125" Dia x 0.580" L (28.58mm x 14.73mm) 1.125" Dia x 0.656" L (28.58mm x 16.66mm) 1.125" Dia x 0.996" L (28.58mm x 25.30mm) 1.130" L x 0.750" W x 0.810" H (28.70mm x 19.05mm x 20.57mm) 1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) 1.160" L x 0.810" W x 0.940" H (29.46mm x 20.57mm x 23.88mm) 1.160" L x 0.940" W x 0.780" H (29.46mm x 23.88mm x 19.81mm) 1.181" Dia (30.00mm) 1.181" L x 0.630" W x 0.551" H (30.00mm x 16.00mm x 14.00mm) 1.188" Dia x 0.719" L (30.18mm x 18.26mm) 1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm) 1.250" Dia x 2.250" L (31.75mm x 57.15mm) 1.250" L x 1.280" W x 1.380" H (32.51mm x 31.75mm x 35.05mm) 1.312" Dia x 0.690" L (33.33mm x 17.53mm) 1.312" Dia x 0.797" L (33.33mm x 20.24mm) 1.312" Dia x 0.875" L (33.33mm x 22.23mm) 1.354" L x 0.551" W x 0.669" H (34.40mm x 14.00mm x 17.00mm) 1.375" Dia x 0.890" L (34.93mm x 22.61mm) 1.449" L x 0.787" W x 1.024" H (36.81mm x 19.99mm x 26.01mm) 1.460" L x 0.787" W x 1.024" H (37.08mm x 20.00mm x 26.01mm) 1.460" L x 0.790" W x 1.020" H (37.08mm x 20.07mm x 25.91mm) 1.460" L x 0.790" W x 1.024" H (37.08mm x 20.07mm x 26.01mm) 1.490" Dia x 2.380" L (37.85mm x 60.45mm) 1.500" Dia x 1.680" L (38.10mm x 42.67mm) 1.500" Dia x 2.500" L (38.10mm x 63.50mm) 1.520" Dia x 2.560" L (38.6mm x 65.0mm) 1.551" Dia x 0.964" L (39.40mm x 24.50mm) 1.555" L x 0.984" W x 1.142" H (39.50mm x 25.00mm x 29.00mm) 1.562" Dia x 0.835" L (39.68mm x 21.21mm) 1.562" Dia x 0.953" L (39.68mm x 24.21mm) 1.562" Dia x 1.471" L (39.68mm x 37.36mm) 1.575" Dia (40.00mm) 1.609" L x 1.312" W x 1.468" H (40.87mm x 33.33mm x 37.29mm) 1.609" L x 1.427" W x 1.438" H (40.87mm x 36.25mm x 36.53mm) 1.609" L x 1.468" W x 1.312" H (40.87mm x 37.29mm x 33.33mm) 1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm) 1.625" Dia x 1.040" L (41.28mm x 26.42mm) 1.625" Dia x 1.055" L (41.28mm x 26.80mm) 1.730" L x 0.840" W x 1.130" H (43.94mm x 21.34mm x 28.70mm) 1.870" L x 0.940" W x 1.190" H (47.50mm x 20.57mm x 30.23mm) 1.875" Dia x 0.880" L (47.63mm x 22.35mm) 1.875" Dia x 1.035" L (47.63mm x 26.29mm) 1.875" Dia x 1.047" L (47.63mm x 26.59mm) 1.875" Dia x 1.935" L (47.63mm x 49.15mm) 1.937" Dia x 1.250" L (49.20mm x 31.75mm) 1.937" Dia x 1.265" L (49.20mm x 32.13mm) 1.968" L x 1.140" W x 0.984" H (49.99mm x 28.96mm x 24.99mm) 1.968" L x 1.574" W x 1.417" H (49.99mm x 39.98mm x 35.99mm) 1.969" Dia (50.00mm) 1.996" L x 1.437" W x 1.625" H (50.70mm x 36.50mm x 41.28mm) 2.000" L x 0.940" W x 1.250" H (50.80mm x 23.88mm x 31.75mm) 2.010" Dia x 0.990" L (51.05mm x 25.15mm) 2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm) 2.020" L x 1.440" W x 1.630" H (51.31mm x 36.58mm x 41.40mm) 2.106" L x 0.984" W x 1.083" H (53.50mm x 25.00mm x 27.50mm) 2.110" L x 0.945" W x 1.102" H (53.57mm x 24.00mm x 28.00mm) 2.165" L x 0.945" W x 0.905" H (55.00mm x 23.00mm x 28.00mm) 2.175" L x 1.625" W x 1.625" H (55.25mm x 41.28mm x 41.28mm) 2.180" L x 1.440" W x 1.630" H (55.37mm x 36.58mm x 41.40mm) 2.205" L x 1.614" W x 1.122" H (56.00mm x 41.00mm x 28.50mm) 2.250" Dia x 1.330" L (57.15mm x 33.78mm) 2.250" Dia x 1.343" L (57.15mm x 34.11mm) 2.250" Dia x 2.214" L (57.15mm x 56.24mm) 2.312" Dia x 1.600" L (58.73mm x 40.64mm) 2.500" L x 1.812" W x 2.060" H (63.50mm x 46.03mm x 52.32mm) 2.500" L x 2.062" W x 2.060" H (63.50mm x 52.38mm x 52.32mm) 2.530" L x 1.181" W x 1.496" H (64.40mm x 30.00mm x 38.00mm) 2.560" Dia (65.00mm) 2.630" L x 1.560" W x 1.820" H (66.80mm x 39.62mm x 46.23mm) 2.973" L x 2.375" W x 2.937" H (75.51mm x 60.33mm x 74.60mm) 23.800" L x 10.600" W x 11.700" H (604.52mm x 269.24mm x 297.18mm) 3.051" L x 2.028" W x 1.732" H (77.50mm x 51.51mm x 43.99mm) 3.150" Dia (80.00mm) 3.375" Dia x 2.165" L (85.73mm x 54.99mm) 3.937" Dia (100.00mm)	- 0.062" (1.58mm) 0.094" (2.39mm) 0.098" (2.50mm) 0.110" (2.79mm) 0.118" (3.00mm) 0.125" (3.18mm) 0.130" (3.30mm) 0.138" (3.51mm) 0.155" (3.95mm) 0.156" (3.97mm) 0.157" (4.00mm) 0.165" (4.19mm) 0.185" (4.70mm) 0.186" (4.73mm) 0.187" (4.75mm) 0.188" (4.76mm) 0.190" (4.83mm) 0.197" (5.00mm) 0.218" (5.54mm) 0.219" (5.57mm) 0.236" (6.00mm) 0.247" (6.27mm) 0.249" (6.33mm) 0.250" (6.35mm) 0.276" (7.00mm) 0.307" (7.80mm) 0.308" (7.82mm) 0.312" (7.93mm) 0.313" (7.95mm) 0.315" (8.00mm) 0.390" (9.91mm) 0.394" (10.00mm) 0.425" (10.80mm) 0.431" (10.95mm) 0.433" (11.00mm) 0.437" (11.10mm) 0.438" (11.13mm) 0.440" (11.18mm) 0.500" (12.70mm) 0.625" (15.88mm) 4.000" (101.60mm)	- Clevis Groove Round Slanted Slug

全部重置

全部应用

结果

厂商料号	库存情况	价格	数量	数据表	系列	包装	产品状态	技术	类型	额定电压	行程长度	功率（瓦特）	直流电阻 (DCR)	衬套螺纹	占空比	安装类型	端接样式	尺寸 / 尺寸	轴直径	轴详细信息
DSOL-0844-12 SOLENOID PULL CONTINUOUS 12V Delta Electronics	18	-	询价单	数据表	DSOL	Box	Active	Electromechanical	Open Frame (Pull)	12VDC	0.500" (12.70mm)	20 W	7.7Ohm	-	Continuous	Chassis Mount	Wire Leads	1.730" L x 0.840" W x 1.130" H (43.94mm x 21.34mm x 28.70mm)	0.313" (7.95mm)	Clevis
DSML-0630-12C SOLENOID LATCH PULL CONT 12V Delta Electronics	58	-	询价单	数据表	DSML	Box	Active	Electromechanical	Open Frame Latching (Pull)	12VDC	0.500" (12.70mm)	4 W	38Ohm	-	Continuous	Chassis Mount	Quick Connect - 0.187" (4.7mm)	1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)	0.250" (6.35mm)	Clevis

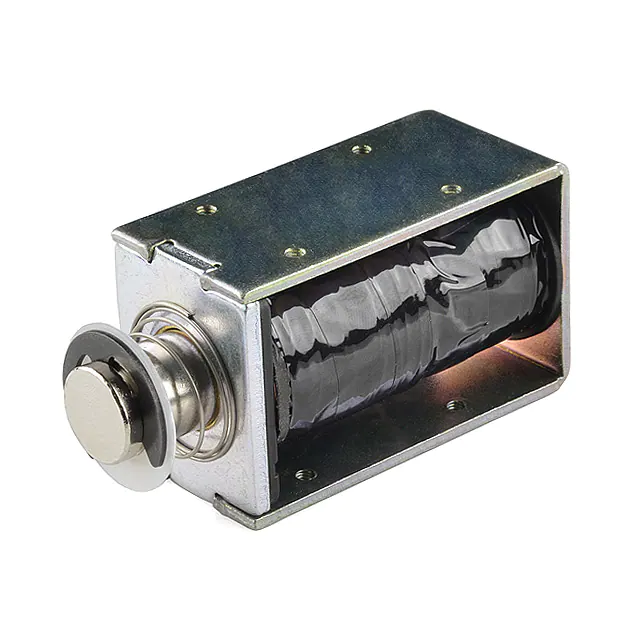

ROB-10391 SOLENOID PUSH INTERMITTENT 36V SparkFun Electronics	42	-	询价单	数据表	-	Bulk	Active	Electromechanical	Open Frame (Push)	36VDC	0.394" (10.00mm)	99 W	13Ohm	-	Intermittent	Chassis Mount	Wire Leads	2.530" L x 1.181" W x 1.496" H (64.40mm x 30.00mm x 38.00mm)	0.197" (5.00mm)	Round
F0451A SOLENOID PULL CONTINUOUS 12V Sumida America Inc.	58	-	询价单	数据表	L-04	Bulk	Active	Electromechanical	Open Frame (Pull)	12VDC	1.000" (25.40mm)	11 W	13Ohm	-	Continuous	Chassis Mount	Quick Connect - 0.187" (4.7mm)	2.020" L x 1.440" W x 1.630" H (51.31mm x 36.58mm x 41.40mm)	0.500" (12.70mm)	Clevis
195202-237 TUBULAR SOLENOID STA PULL 1/2 X Ledex Dormeyer Saia, a Division of Johnson Electric	65	-	询价单	数据表	STA	Bulk	Active	Electromechanical	Closed Frame (Pull), Tubular	24VDC	0.250" (6.35mm)	4.1 W	141.9Ohm	3/8-32 UNEF	Continuous	Panel Mount	Wire Leads	0.500" Dia x 1.000" L (12.70mm x 25.40mm)	0.185" (4.70mm)	Clevis
B22-253-M-36 OPEN FRAME SOLENOID B22 - 24 VDC Ledex Dormeyer Saia, a Division of Johnson Electric	74	-	询价单	数据表	-	Bulk	Active	Electromechanical	Open Frame (Pull)	24VDC	0.500" (12.70mm)	9.9 W	58.2Ohm	-	Continuous	Chassis Mount	Quick Connect - 0.187" (4.7mm)	1.610" L x 1.310" W x 1.470" H (40.89mm x 33.27mm x 37.34mm)	0.500" (12.70mm)	Clevis
G0404A SOLENOID LATCH PULL CONT 24V Sumida America Inc.	12	-	询价单	数据表	M-22	Bulk	Active	Electromechanical	Open Frame Latching (Pull)	24VDC	0.250" (6.35mm)	4 W	144Ohm	-	Continuous	Chassis Mount	Quick Connect - 0.187" (4.7mm)	1.200" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)	0.250" (6.35mm)	Clevis
F0484A SOLENOID PULL INTERMITTENT 24V Sumida America Inc.	49	-	询价单	数据表	L-10-2	Bulk	Active	Electromechanical	Closed Frame (Pull), Tubular	24VDC	0.875" (22.20mm)	40 W	14.4Ohm	3/4-24 UNS-2A	Intermittent	Panel Mount	Wire Leads	2.010" Dia x 0.990" L (51.05mm x 25.15mm)	0.437" (11.10mm)	Clevis

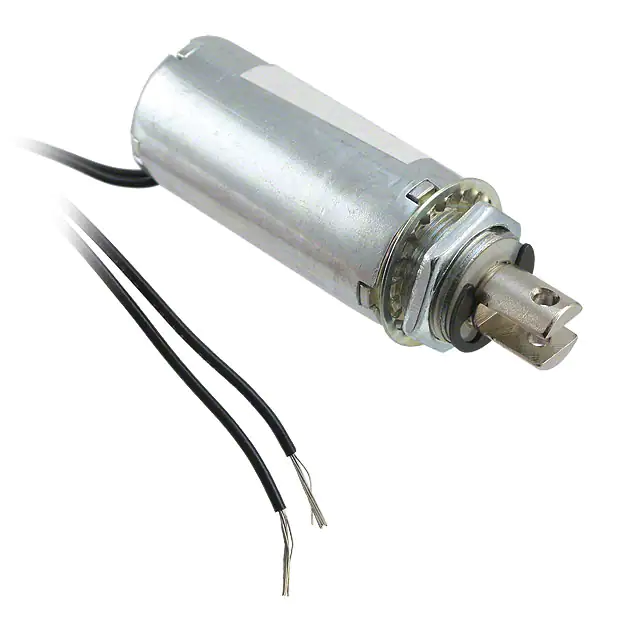

F0482A SOLENOID PULL INTERMITTENT 12V Sumida America Inc.	78	-	询价单	数据表	L-10-2	Bulk	Active	Electromechanical	Closed Frame (Pull), Tubular	12VDC	0.875" (22.20mm)	40 W	3.6Ohm	3/4-24 UNS-2A	Intermittent	Panel Mount	Wire Leads	2.010" Dia x 0.990" L (51.05mm x 25.15mm)	0.437" (11.10mm)	Clevis
F0471A SOLENOID PULL CONTINUOUS 12V Sumida America Inc.	20	-	询价单	数据表	L-75-2	Bulk	Active	Electromechanical	Closed Frame (Pull), Tubular	12VDC	0.500" (12.70mm)	6 W	23Ohm	15/32-32 UNF-2A	Continuous	Panel Mount	Wire Leads	0.737" Dia x 1.490" L (18.72mm x 37.85mm)	0.312" (7.93mm)	Clevis
F0472A SOLENOID PULL INTERMITTENT 12V Sumida America Inc.	48	-	询价单	数据表	L-75-2	Bulk	Active	Electromechanical	Closed Frame (Pull), Tubular	12VDC	0.750" (19.05mm)	40 W	3.6Ohm	15/32-32 UNF-2A	Intermittent	Panel Mount	Wire Leads	0.737" Dia x 1.490" L (18.72mm x 37.85mm)	0.312" (7.93mm)	Clevis
F0474A SOLENOID PULL INTERMITTENT 24V Sumida America Inc.	62	-	询价单	数据表	L-75-2	Bulk	Active	Electromechanical	Closed Frame (Pull), Tubular	24VDC	0.750" (19.05mm)	40 W	14.4Ohm	15/32-32 UNF-2A	Intermittent	Panel Mount	Wire Leads	0.737" Dia x 1.490" L (18.72mm x 37.85mm)	0.312" (7.93mm)	Clevis
G0414A SOLENOID LATCH PULL CONT 24V Sumida America Inc.	28	-	询价单	数据表	M-82	Bulk	Active	Electromechanical	Open Frame Latching (Pull)	24VDC	0.750" (19.05mm)	7 W	82Ohm	-	Continuous	Chassis Mount	Quick Connect - 0.187" (4.7mm), 0.110" (2.8mm)	2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)	0.438" (11.13mm)	Clevis
195200-234 TUBULAR SOLENOID STA PULL 1/2 X Ledex Dormeyer Saia, a Division of Johnson Electric	83	-	询价单	数据表	STA	Bulk	Active	Electromechanical	Closed Frame (Pull), Tubular	12VDC	0.100" (2.54mm)	11 W	13.1Ohm	3/8-32 UNEF	Intermittent	Panel Mount	Wire Leads	0.500" Dia x 0.500" L (12.70mm x 12.70mm)	0.185" (4.70mm)	Clevis

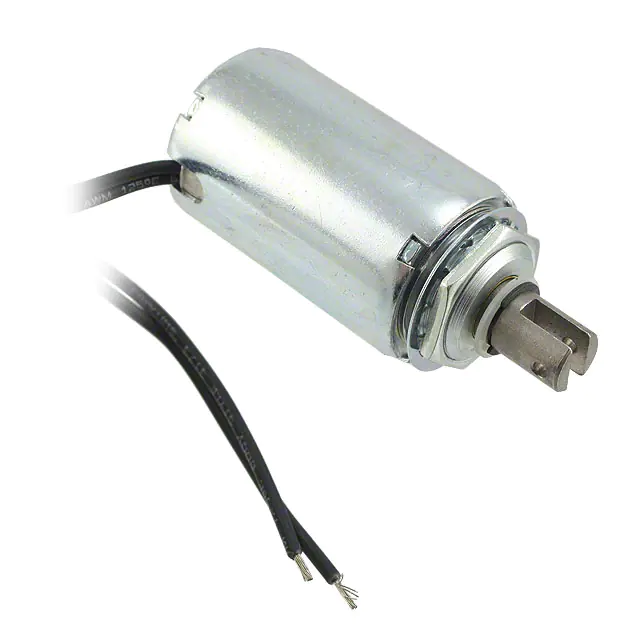

F0492A SOLENOID PULL INTERMITTENT 12V Sumida America Inc.	14	-	询价单	数据表	L-15-2	Bulk	Active	Electromechanical	Closed Frame (Pull), Tubular	12VDC	1.250" (31.75mm)	60 W	2.2Ohm	1-27 UNS-2A	Intermittent	Panel Mount	Wire Leads	1.490" Dia x 2.380" L (37.85mm x 60.45mm)	0.500" (12.70mm)	Clevis
154661-224 STA SIZE 150 PUSH - 12 VDC CD Ledex Dormeyer Saia, a Division of Johnson Electric	43	-	询价单	数据表	STA	Bulk	Active	Electromechanical	Closed Frame (Push), Tubular	12.4VDC	-	17 W	9.3Ohm	1-27 UNS	Continuous	Panel Mount	Wire Leads	1.520" Dia x 2.560" L (38.6mm x 65.0mm)	0.187" (4.75mm)	Round
F0413A SOLENOID PULL CONTINUOUS 24V Sumida America Inc.	25	-	询价单	数据表	L-22	Bulk	Active	Electromechanical	Open Frame (Pull)	24VDC	0.500" (12.70mm)	4 W	144Ohm	-	Continuous	Chassis Mount	Quick Connect - 0.187" (4.7mm)	1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)	0.250" (6.35mm)	Clevis
DSOL-0630-05C DC SOLENOID, OPEN FRAME PULL TYP Delta Electronics	82	-	询价单	数据表	DSOL	Box	Active	Electromechanical	Open Frame (Pull)	5VDC	0.500" (12.70mm)	4 W	6Ohm	-	Continuous	Chassis Mount	Quick Connect - 0.187" (4.7mm)	1.160" L x 0.750" W x 0.750" H (29.46mm x 19.05mm x 19.05mm)	0.250" (6.35mm)	Clevis
F0431A SOLENOID PULL CONTINUOUS 12V Sumida America Inc.	19	-	询价单	数据表	L-11	Bulk	Active	Electromechanical	Open Frame (Pull)	12VDC	0.750" (19.05mm)	8 W	18Ohm	-	Continuous	Chassis Mount	Quick Connect - 0.187" (4.7mm)	1.870" L x 0.940" W x 1.190" H (47.50mm x 20.57mm x 30.23mm)	0.312" (7.93mm)	Clevis
F0444A SOLENOID PULL INTERMITTENT 24V Sumida America Inc.	18	-	询价单	数据表	L-82	Bulk	Active	Electromechanical	Open Frame (Pull)	24VDC	0.750" (19.05mm)	19 W	30.3Ohm	-	Intermittent	Chassis Mount	Quick Connect - 0.187" (4.7mm)	2.010" L x 1.000" W x 1.220" H (51.05mm x 25.40mm x 30.99mm)	0.438" (11.13mm)	Clevis

共 459 条记录«上一页 1 2 3 4 5 678 9 10...23 下一页»
