选择器开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 工作温度 | 电压额定值 - 直流 | 照明 | 位置数量 | 照明类型，颜色 | 照明电压（额定值） | 特性 | 安装类型 | 防护等级 | 端接样式 | 面板开孔尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV62DBEHHHD-KKCSWITCH SELECT 3POS DPDT 20A 12V Carling Technologies |
0 | - |
|
数据表 |
V | Bulk | Active | Standard | DPDT | On-On-Off | 20A (DC) | - | - | 12 V | Illuminated | 3 | LED, Green/Green/Green | 12, 12, 12 VDC | - | Panel Mount, Snap-In | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | Rectangular - 36.83mm x 21.08mm |
|
|
RV2112C606C-K4CSWITCH SELECT 2P DPST 0.4VA 28V Carling Technologies |
0 | - |
|
数据表 |
V | Bulk | Active | Standard | DPST | On-Off | 0.4VA (DC) | - | - | 28 V | Illuminated | 2 | LED, White/White | 12 VDC | - | Panel Mount, Snap-In | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | Rectangular - 36.83mm x 21.08mm |
|
|
RV241KC606B-K9CSWITCH SELECT 2P DPDT 0.4VA 28V Carling Technologies |
0 | - |
|
数据表 |
V | Bulk | Active | Standard | DPDT | On-On | 0.4VA (DC) | - | - | 28 V | Illuminated | 2 | LED, White/White | 12 VDC | - | Panel Mount, Snap-In | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | Rectangular - 36.83mm x 21.08mm |
|
|
BDB14-RASWITCH SELECT 2POS SPST 300A 24V Carling Technologies |
0 | - |
|
数据表 |
BD | Bulk | Active | Standard | SPST | On-Off | 300A (DC) | - | -40°C ~ 85°C | 24 V | Non-Illuminated | 2 | - | - | - | Panel Mount | IP67 - Dust Tight, Waterproof | Screw Terminal | Circular - 68.60mm Dia |
|
|
BDB14-YASWITCH SELECT 2POS SPST 300A 24V Carling Technologies |
0 | - |
|
数据表 |
BD | Bulk | Active | Standard | SPST | On-Off | 300A (DC) | - | -40°C ~ 85°C | 24 V | Non-Illuminated | 2 | - | - | - | Panel Mount | IP67 - Dust Tight, Waterproof | Screw Terminal | Circular - 68.60mm Dia |
|
|
RV611KE666B-K9CSWITCH SELECT 3P DP3T 0.4VA 28V Carling Technologies |
0 | - |
|
数据表 |
V | Bulk | Active | Standard | DP3T | On-On-On | 0.4VA (DC) | - | - | 28 V | Illuminated | 3 | LED, White/White/White | 12 VDC | - | Panel Mount, Snap-In | IP67 - Dust Tight, Waterproof | Quick Connect - 0.250" (6.3mm) | Rectangular - 36.83mm x 21.08mm |
|
700-A-BLSWITCH SELECT 4POS SP3T 4A 125V Carling Technologies |
209 | - |
|
数据表 |
700 | Box | Active | Standard | SP3T | Off-On-On-On | 4A (AC), 1A (DC) | 125 V | - | 125 V | Non-Illuminated | 4 | - | - | Bezel - Round, Long Lever | Panel Mount | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.88mm Dia |
|

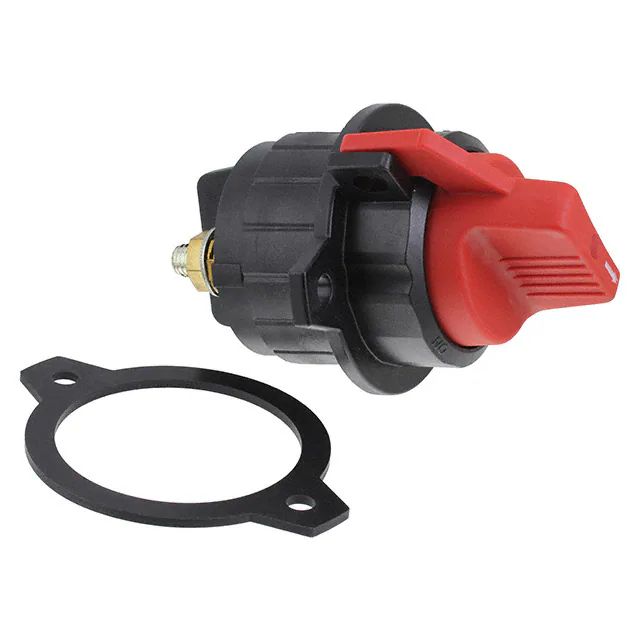

BDA10-RASWITCH SELECTOR Carling Technologies |
183 | - |
|
数据表 |
BD | Bulk | Active | Battery Disconnect | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
800-7A4-BLSWITCH SELECT 7POS SP6T 6A 125V Carling Technologies |
0 | - |
|
数据表 |
* | Bulk | Active | Standard | SP6T | On-On-On-Off-On-On-On | 6A (AC) | 125 V | - | - | Non-Illuminated | 7 | - | - | Bezel - Round, Long Lever | Panel Mount | - | Solder Lug | Circular - 11.88mm Dia |
|
|
800-4A4-BLSWITCH SELECT 4POS SP3T 6A 125V Carling Technologies |
0 | - |
|
数据表 |
* | Bulk | Active | Standard | SP3T | On-On-On-Off | 6A (AC) | 125 V | - | - | Non-Illuminated | 4 | - | - | Bezel - Round, Long Lever | Panel Mount | - | Solder Lug | Circular - 11.88mm Dia |
