干簧继电器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点额定值（电流） | 切换电压 | 线圈电流 | 触点材料 | 线圈类型 | 特性 | 触点形式 | 端接样式 | 密封等级 | 工作温度 | 必须动作电压 | 释放时间 | 必须释放电压 | 动作时间 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

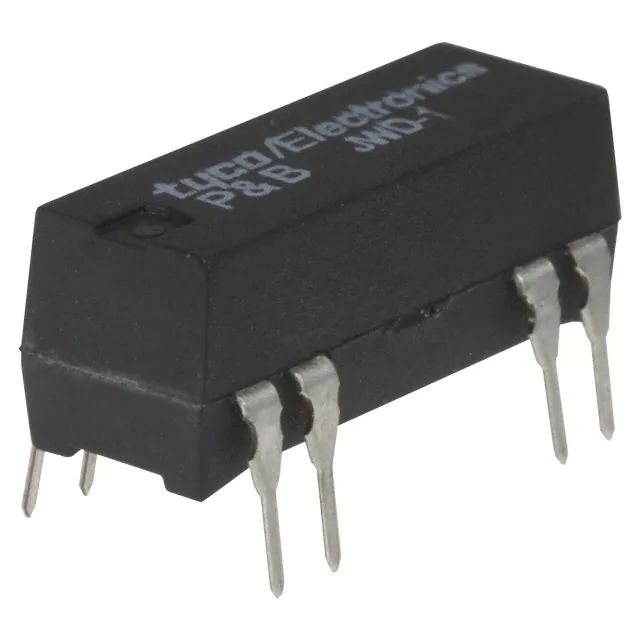

JWD-107-1RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
3,044 | - |
|
数据表 |
JWD | Tray | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | Ruthenium (Ru) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -35°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 1.5 ms |
|
|
JWD-171-27RELAY REED DPST 500MA 12V TE Connectivity Potter & Brumfield Relays |
298 | - |
|
数据表 |
JWD | Tube | Active | Through Hole | 12VDC | 500 mA | 100VDC - Max | 24 mA | Ruthenium (Ru) | Non Latching | Diode | DPST-NO (2 Form A) | PC Pin | - | -35°C ~ 85°C | 9.6 VDC | 0.5 ms | 1 VDC | 1.5 ms |
|
|
JWD-107-5RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
5,588 | - |
|
数据表 |
JWD | Tray | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | Ruthenium (Ru) | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -35°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 1.5 ms |
|
|
JWD-172-8RELAY REED SPDT 500MA 24V TE Connectivity Potter & Brumfield Relays |
3,928 | - |
|
数据表 |
JWD | Tray | Active | Through Hole | 24VDC | 500 mA | 28VDC - Max | 10.9 mA | Ruthenium (Ru) | Non Latching | Diode | SPDT (1 Form C) | PC Pin | - | -35°C ~ 85°C | 19.2 VDC | 3 ms | 2 VDC | 1.5 ms |
|
V23100V4305C011RELAY REED SPDT 250MA 5V TE Connectivity Potter & Brumfield Relays |
181 | - |
|
数据表 |
V23100-V4, AXICOM | Tube | Active | Through Hole | 5VDC | 250 mA | 175VDC - Max | 25 mA | Ruthenium (Ru) | Non Latching | Diode, Electrostatic Shield | SPDT (1 Form C) | PC Pin | - | -40°C ~ 85°C | 3.5 VDC | 1.6 ms | 0.75 VDC | 1.1 ms |
|
|
JWD-171-10RELAY REED SPST 500MA 24V TE Connectivity Potter & Brumfield Relays |
1,468 | - |
|
数据表 |
JWD | Tube | Active | Through Hole | 24VDC | 500 mA | 100VDC - Max | 11.2 mA | Ruthenium (Ru) | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -35°C ~ 85°C | 19.2 VDC | 0.5 ms | 2 VDC | 1.5 ms |
|
JWS-117-1RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
3,968 | - |
|
数据表 |
JWS | Tube | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | Ruthenium (Ru) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -35°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 1.5 ms |
|
|
JWS-117-6RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
3,495 | - |
|
数据表 |
JWS | Tube | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | Ruthenium (Ru) | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -35°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 1.5 ms |
|
|
JWD-171-17RELAY REED SPST 500MA 5V TE Connectivity Potter & Brumfield Relays |
964 | - |
|
数据表 |
JWD | Tube | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | Ruthenium (Ru) | Non Latching | Diode | SPST-NC (1 Form B) | PC Pin | - | -35°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 1.5 ms |
|
|
JWD-171-28RELAY REED DPST 500MA 24V TE Connectivity Potter & Brumfield Relays |
3,481 | - |
|
数据表 |
JWD | Tube | Active | Through Hole | 24VDC | 500 mA | 100VDC - Max | 10.9 mA | Ruthenium (Ru) | Non Latching | Diode | DPST-NO (2 Form A) | PC Pin | - | -35°C ~ 85°C | 19.2 VDC | 0.5 ms | 2 VDC | 1.5 ms |
