干簧继电器

制造商	系列	包装	产品状态	安装类型	线圈电压	触点额定值（电流）	切换电压	线圈电流	触点材料	线圈类型	特性	触点形式	端接样式	密封等级	工作温度	必须动作电压	释放时间	必须释放电压	动作时间
Altech Corporation Archimedes Controls Bright Toward Industrial Celduc Inc. Computer Components Inc Comus International Coto Technology Littelfuse Inc. NI Sensata Technologies Standex-Meder Electronics TE Connectivity Potter & Brumfield Relays US Digital	* - 1240 2 200 2200 2270 2300 2362 2370 2600 2900 2970 30 3350 3500 3563 3570 3572 3600 400 5500 7000 8000 8200 8500 8L 9000 9000, Spartan 9006 9007, Spartan 9011 9012 9091 9092 9094 9104 9117 9200 9300 9400 9900 9913 B41 BE BF BFH BFM BFM-CW BFS BH BT BU CGSM CRR D D-HR D1 D200 DA DB DIL DIP DR DSS4 DSS7 H HE HE3300 HE3600 HE700 HG HI HM JWD JWS KT LI LP MH MRE MRX MS MSIP MSS MSS2 MSS4 MVS2 NP OMR, OEG PRMA RM S S1 S2 S3 S4 S8 S8-HR SHV SIL SIL HV SIP SUL UMS V23100-V4, AXICOM V23100-V6, AXICOM VN-2A VN-4A XSIP XXHV	- Bag Box Bulk Tape & Reel (TR) Tray Tube	Active Discontinued at InFortune Not For New Designs Obsolete	- Chassis Mount Surface Mount Through Hole	- 12VDC 15VDC 24VDC 3.3VDC 35VDC 3VDC 5VDC 6VDC	- 1 A 100 mA 2 A 200 mA 240 mA 250 mA 250 mV 3 A 300 mA 350 mA 400 mA 500 mA 700 mA 750 mA	- 10000VAC, 10000VDC - Max 1000VAC, 1000VDC - Max 1000VDC - Max 100VAC, 100VDC - Max 100VDC - Max 120VAC, 170VDC - Max 120VAC, 60VDC - Max 120VDC - Max 125VAC, 125VDC - Max 140VAC, 200VDC - Max 1500VDC - Max 150VAC, 150VDC - Max 150VDC - Max 170VAC, 170VDC - Max 170VDC - Max 175VAC, 175VDC - Max 175VDC - Max 180VAC, 180VDC - Max 2.5V 200VAC, 200VDC - Max 200VDC - Max 20VAC, 20VDC - Max 240VDC - Max 24VDC - Nom 2500VAC, 2500VDC - Max 250VAC - Max 28VAC, 28VDC - Max 28VDC - Max 300VAC, 300VDC - Max 300VAC, 350VDC - Max 300VDC - Max 30VAC, 30VDC - Max 3500VAC, 3500VDC - Max 350VDC - Max 5000VAC, 5000VDC - Max 5000VDC - Max 500VAC, 500VDC - Max 7000VAC, 7000VDC - Max 7500VAC, 7500VDC - Max 7500VDC - Max	- 1.2 mA 10 mA 10.4 mA 10.9 mA 100 mA 11 mA 11.1 mA 11.2 mA 11.4 mA 11.5 mA 12 mA 12.5 mA 120 mA 125 mA 126 mA 126.3 mA 13 mA 13.3 mA 13.4 mA 13.5 mA 13.7 mA 131.6 mA 132 mA 14 mA 14.1 mA 14.3 mA 14.5 mA 15 mA 15.4 mA 15.5 mA 16 mA 16.7 mA 167 mA 17.1 mA 17.5 mA 17.8 mA 17.9 mA 178.6 mA 179 mA 18 mA 18.5 mA 18.8 mA 19.2 mA 19.3 mA 2.4 mA 20 mA 20.8 mA 21.7 mA 21.8 mA 22 mA 22.7 mA 22.8 mA 23.1 mA 24 mA 24.5 mA 240 mA 25 mA 25.9 mA 26 mA 26.7 mA 27 mA 27.8 mA 27.9 mA 28.6 mA 30 mA 30.7 mA 30.8 mA 31 mA 31.3 mA 312.5 mA 313 mA 33.3 mA 33.4 mA 34.3 mA 35.2 mA 35.3 mA 35.7 mA 35.8 mA 4 mA 4.3 mA 40 mA 41.7 mA 42.7 mA 45.5 mA 46.2 mA 47.1 mA 47.6 mA 48 mA 5 mA 5.6 mA 5.7 mA 50 mA 51.6 mA 52.2 mA 55.6 mA 6 mA 6.2 mA 6.3 mA 6.4 mA 6.5 mA 6.7 mA 6.9 mA 60 mA 62 mA 62.5 mA 63 mA 66.7 mA 67 mA 68.6 mA 69 mA 7.3 mA 7.5 mA 7.8 mA 71.4 mA 77 mA 8 mA 8.3 mA 80 mA 83.3 mA 9 mA 9.1 mA 9.3 mA 9.8 mA 90.9 mA 91 mA	- Rhodium (Rh) Rhodium (Rh), Ruthenium (Ru) Ruthenium (Ru) Tungsten (W)	- Latching, Dual Coil Non Latching	- Coaxial Shield Diode Diode, Electrostatic Shield Diode, EMI Shielded Diode, Magnetic Shield Electrostatic Shield EMI Shielded Magnetic Shield	- 3PDT (3 Form C) 3PST-NO (3 Form A) 4PST-NO (4 Form A) 6PST-NO (6 Form A) 8PST-NO (8 Form A) DPDT (2 Form C) DPST-NC (2 Form B) DPST-NO (2 Form A) DPST-NO/NC (1 Form A, 1 Form B) SPDT (1 Form C) SPDT (1 Form D) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 2 SPST-NO (1 Form A) x 4	- Axial BGA Gull Wing J Lead PC Pin PC Pin, Solder Turret PC Pin, Wire Leads Quick Connect - 0.250" (6.3mm) SMD (SMT) Tab Solder Turret Wire Leads	- Sealed - Fully Sealed - Hermetically	- -20°C ~ 125°C -20°C ~ 55°C -20°C ~ 65°C -20°C ~ 70°C -20°C ~ 80°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 85°C -30°C ~ 70°C -35°C ~ 85°C -38°C ~ 75°C -38°C ~ 85°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 125°C -40°C ~ 65°C -40°C ~ 70°C -40°C ~ 80°C -40°C ~ 85°C -55°C ~ 85°C	- 10.5 VDC 10.8 VDC 11 VDC 14 VDC 16 VDC 16.4 VDC 16.8 VDC 17.5 VDC 17.6 VDC 18 VDC 19 VDC 19.2 VDC 2 VDC 2.1 VDC 2.25 VDC 2.3 VDC 2.5 VDC 2.9 VDC 20 VDC 3 VDC 3.5 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 4 VDC 4.2 VDC 4.5 VDC 5 VDC 6.7 VDC 7 VDC 7.1 VDC 8 VDC 8.4 VDC 8.5 VDC 8.6 VDC 8.8 VDC 9 VDC 9.6 VDC	- 0.05 ms 0.07 ms 0.1 ms 0.15 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.7 ms 1 ms 1.25 ms 1.5 ms 1.6 ms 100 µs 2 ms 2.5 ms 20 µs 200 µs 3 ms 300 µs 400 µs 50 µs 600 µs	- 0.28 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.52 VDC 0.6 VDC 0.65 VDC 0.7 VDC 0.75 VDC 0.8 VDC 1 VDC 1.2 VDC 1.25 VDC 1.3 VDC 1.4 VDC 1.5 VDC 1.8 VDC 2 VDC 2.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.9 VDC 3 VDC 3.5 VDC 3.6 VDC 4 VDC	- 0.1 ms 0.2 ms 0.25 ms 0.3 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 0.7 ms 0.75 ms 0.8 ms 1 ms 1.1 ms 1.2 ms 1.25 ms 1.5 ms 1.75 ms 2 ms 2.5 ms 200 µs 3 ms 3.2 ms 300 µs 4 ms 400 µs 6 ms 650 µs 700 µs 750 µs

全部重置

全部应用

结果

厂商料号	库存情况	价格	数量	数据表	系列	包装	产品状态	安装类型	线圈电压	触点额定值（电流）	切换电压	线圈电流	触点材料	线圈类型	特性	触点形式	端接样式	密封等级	工作温度	必须动作电压	释放时间	必须释放电压	动作时间
SIL03-1A72-71D RELAY REED SPST 0.5A 3V Standex-Meder Electronics	286	-	询价单	数据表	SIL	Tube	Active	Through Hole	3VDC	500 mA	200VAC, 200VDC - Max	6 mA	-	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 70°C	2.1 VDC	0.05 ms	0.45 VDC	0.7 ms
9001-12-01 RELAY REED SPST 500MA 12V Coto Technology	20,988	-	询价单	数据表	9000	Tube	Active	Through Hole	12VDC	500 mA	200VAC, 200VDC - Max	12 mA	-	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	9 VDC	0.1 ms	1 VDC	0.35 ms
9091-05-00 RELAY REED SPST 500MA 5V Coto Technology	16,293	-	询价单	数据表	9091	Tube	Active	Through Hole	5VDC	500 mA	200VAC, 200VDC - Max	10 mA	-	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	3.75 VDC	0.3 ms	0.4 VDC	0.5 ms
9091-05-01 RELAY REED SPST 500MA 5V Coto Technology	101,585	-	询价单	数据表	9091	Tube	Active	Through Hole	5VDC	500 mA	200VAC, 200VDC - Max	10 mA	-	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	3.75 VDC	0.3 ms	0.4 VDC	0.5 ms
HE722A1200 RELAY REED DPST 500MA 12V Littelfuse Inc.	746	-	询价单	数据表	HE700	Tube	Active	Through Hole	12VDC	500 mA	200VDC - Max	24 mA	-	Non Latching	-	DPST-NO (2 Form A)	PC Pin	-	-40°C ~ 85°C	8 VDC	1 ms	1 VDC	1 ms
9001-05-00 RELAY REED SPST 500MA 5V Coto Technology	26,787	-	询价单	数据表	9000	Tube	Active	Through Hole	5VDC	500 mA	200VAC, 200VDC - Max	10 mA	-	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	3.75 VDC	0.1 ms	0.4 VDC	0.35 ms
HE722A0510 RELAY REED DPST 500MA 5V Littelfuse Inc.	5,787	-	询价单	数据表	HE700	Tube	Active	Through Hole	5VDC	500 mA	200VDC - Max	25 mA	-	Non Latching	Diode	DPST-NO (2 Form A)	PC Pin	-	-40°C ~ 85°C	3.75 VDC	1 ms	0.5 VDC	1 ms
HE722A1210 RELAY REED DPST 500MA 12V Littelfuse Inc.	3,456	-	询价单	数据表	HE700	Tube	Active	Through Hole	12VDC	500 mA	200VDC - Max	24 mA	-	Non Latching	Diode	DPST-NO (2 Form A)	PC Pin	-	-40°C ~ 85°C	8 VDC	1 ms	1 VDC	1 ms
9001-12-00 RELAY REED SPST 500MA 12V Coto Technology	12,004	-	询价单	数据表	9000	Tube	Active	Through Hole	12VDC	500 mA	200VAC, 200VDC - Max	12 mA	-	Non Latching	-	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	9 VDC	0.1 ms	1 VDC	0.35 ms
HE721C0500 RELAY REED SPDT 250MA 5V Littelfuse Inc.	5,255	-	询价单	数据表	HE700	Tube	Active	Through Hole	5VDC	250 mA	175VDC - Max	25 mA	-	Non Latching	-	SPDT (1 Form C)	PC Pin	-	-40°C ~ 85°C	3.75 VDC	3 ms	0.5 VDC	3 ms
9001-05-01 RELAY REED SPST 500MA 5V Coto Technology	6,403	-	询价单	数据表	9000	Tube	Active	Through Hole	5VDC	500 mA	200VAC, 200VDC - Max	10 mA	-	Non Latching	Diode	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	3.75 VDC	0.1 ms	0.4 VDC	0.35 ms
HE721C2410 RELAY REED SPDT 250MA 24V Littelfuse Inc.	696	-	询价单	数据表	HE700	Tube	Active	Through Hole	24VDC	250 mA	175VDC - Max	12 mA	-	Non Latching	Diode	SPDT (1 Form C)	PC Pin	-	-40°C ~ 85°C	16 VDC	3 ms	2 VDC	3 ms
9001-05-11 RELAY REED SPST 500MA 5V Coto Technology	27,768	-	询价单	数据表	9000	Tube	Active	Through Hole	5VDC	500 mA	200VAC, 200VDC - Max	10 mA	-	Non Latching	Diode, EMI Shielded	SPST-NO (1 Form A)	PC Pin	-	-20°C ~ 85°C	3.75 VDC	0.1 ms	0.4 VDC	0.35 ms
HE721C1200 RELAY REED SPDT 250MA 12V Littelfuse Inc.	5,060	-	询价单	数据表	HE700	Tube	Active	Through Hole	12VDC	250 mA	175VDC - Max	24 mA	-	Non Latching	-	SPDT (1 Form C)	PC Pin	-	-40°C ~ 85°C	8 VDC	3 ms	1 VDC	3 ms
HE3321C0500 RELAY REED SPDT 250MA 5V Littelfuse Inc.	2,976	-	询价单	数据表	HE3300	Bulk	Active	Through Hole	5VDC	250 mA	175VDC - Max	40 mA	-	Non Latching	-	SPDT (1 Form C)	PC Pin	-	-40°C ~ 85°C	3.75 VDC	3 ms	0.5 VDC	3 ms

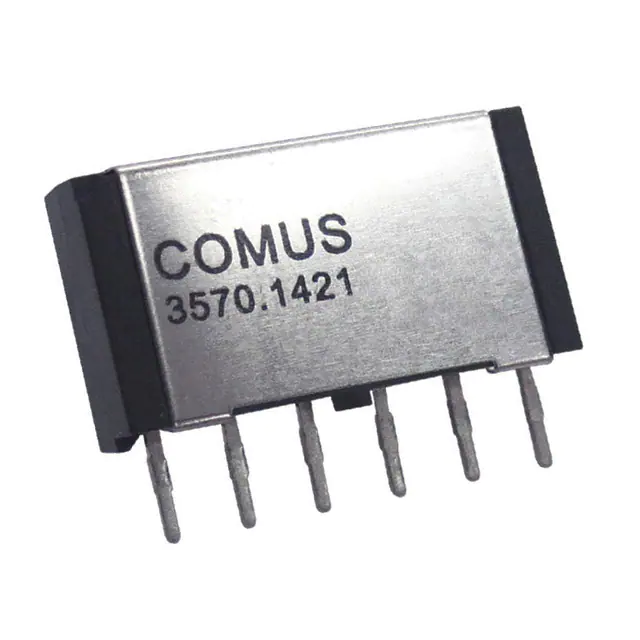

3570-1421-054 RELAY REED SIP DPST .5A 5V EM/DI Comus International	534	-	询价单	数据表	3570	Tube	Active	Through Hole	5VDC	500 mA	200VDC - Max	13.3 mA	-	Non Latching	Diode, EMI Shielded	DPST-NO (2 Form A)	PC Pin	-	-40°C ~ 85°C	3.8 VDC	0.5 ms	0.4 VDC	0.75 ms
8L02-05-01 RELAY REED DPST 500MA 5V Coto Technology	2,375	-	询价单	数据表	8L	Tube	Active	Through Hole	5VDC	500 mA	200VAC, 200VDC - Max	25 mA	-	Non Latching	Diode	DPST-NO (2 Form A)	PC Pin	-	-20°C ~ 85°C	3.8 VDC	0.5 ms	0.5 VDC	0.5 ms

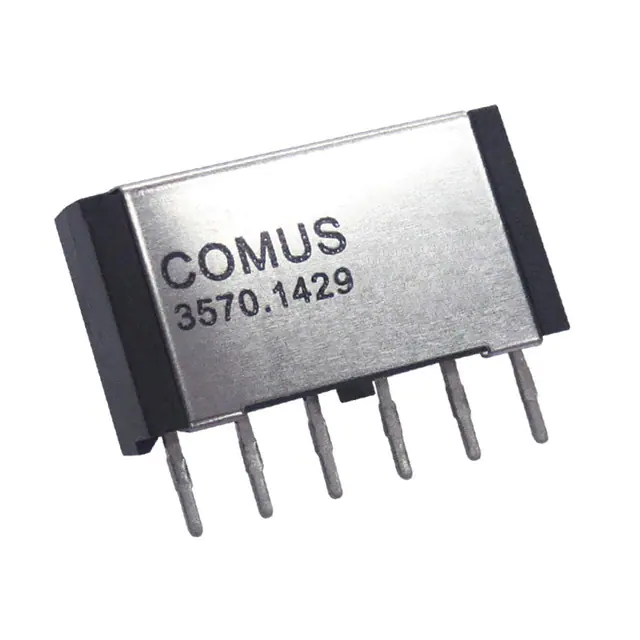

3570-1429-054 RELAY REED SIP DPST 1A 5V EM/DI Comus International	2,118	-	询价单	数据表	3570	Tube	Active	Through Hole	5VDC	1 A	200VDC - Max	13.3 mA	-	Non Latching	Diode, EMI Shielded	DPST-NO (2 Form A)	PC Pin	-	-40°C ~ 85°C	3.8 VDC	0.5 ms	0.4 VDC	0.75 ms

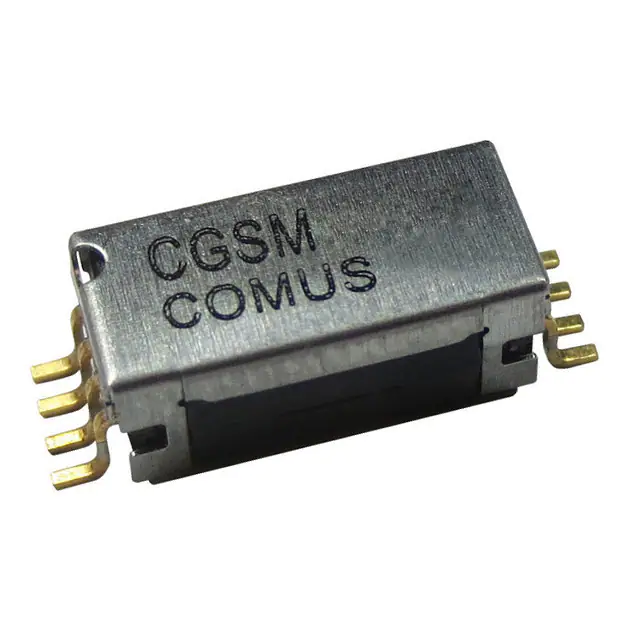

CGSM-051A-GTR RELAY RF SPST-NO 500MA 5V Comus International	1,941	-	询价单	数据表	CGSM	Tape & Reel (TR)	Active	Surface Mount	5VDC	500 mA	120VAC, 170VDC - Max	33.3 mA	Ruthenium (Ru)	Non Latching	-	SPST-NO (1 Form A)	Gull Wing	-	-40°C ~ 85°C	3.8 VDC	0.05 ms	0.4 VDC	0.25 ms

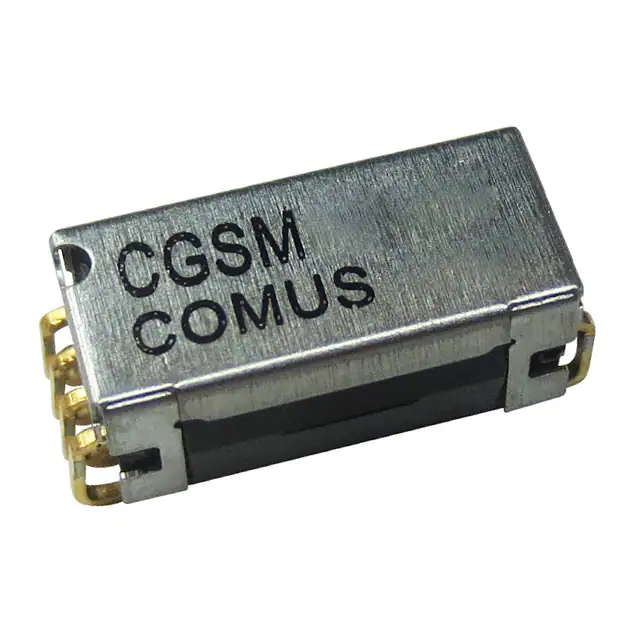

CGSM-051A-JTR RELAY RF SPST-NO 500MA 5V Comus International	1,055	-	询价单	数据表	CGSM	Tape & Reel (TR)	Active	Surface Mount	5VDC	500 mA	120VAC, 170VDC - Max	33.3 mA	Ruthenium (Ru)	Non Latching	-	SPST-NO (1 Form A)	J Lead	-	-40°C ~ 85°C	3.8 VDC	0.05 ms	0.4 VDC	0.25 ms

共 1567 条记录«上一页 123 4 5...79 下一页»
