直流直流转换器（DC DC Converters）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 等级 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输入（最小） | 电流 - 输出（最大值） | 功率（瓦特） | 效率 | 电压 - 隔离 | 认证 | 工作温度 | 应用 | 特性 | 安装类型 | 尺寸 / 尺寸 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TMR 2422DC DC CONVERTER +/-12V 2W |
394 | - |
|
数据表 |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 12V | -12V | - | - | - | 18V | 85mA, 85mA | 2 W | 83% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | Module | - | - | - | |
|
|
TMR 1222DC DC CONVERTER +/-12V 2W |
276 | - |
|
数据表 |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 12V | -12V | - | - | - | 9V | 85mA, 85mA | 2 W | 83% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | Module | - | - | - | |
|
|
TMR 1223DC DC CONVERTER +/-15V 2W |
160 | - |
|
数据表 |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 15V | -15V | - | - | - | 9V | 65mA, 65mA | 2 W | 84% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | Module | - | - | - | |
|
|
TMR 2421DC DC CONVERTER +/-5V 2W |
134 | - |
|
数据表 |
TMR 2 (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 5V | -5V | - | - | - | 18V | 200mA, 200mA | 2 W | 80% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, SCP | Through Hole | Module | - | - | - | |
|

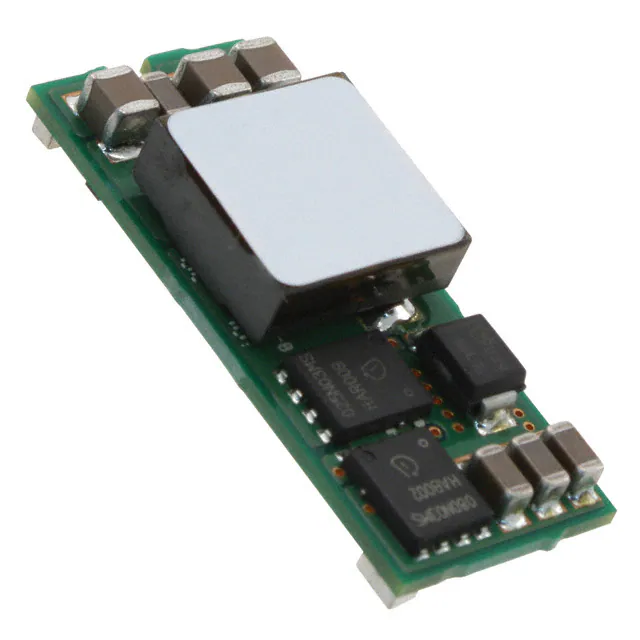

AXA010A0X3-SRZDC DC CONVERTER 0.8-5.5V 55W |
1,079 | - |
|
数据表 |
Austin Lynx™ | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 14V | 0.8 ~ 5.5V | - | - | - | - | 10V | 10A | 55 W | 93% | - | - | -40°C ~ 85°C | ITE (Commercial) | Remote On/Off, OCP, OTP, UVLO | Surface Mount | - | Enable, Active High | - | - | |
|

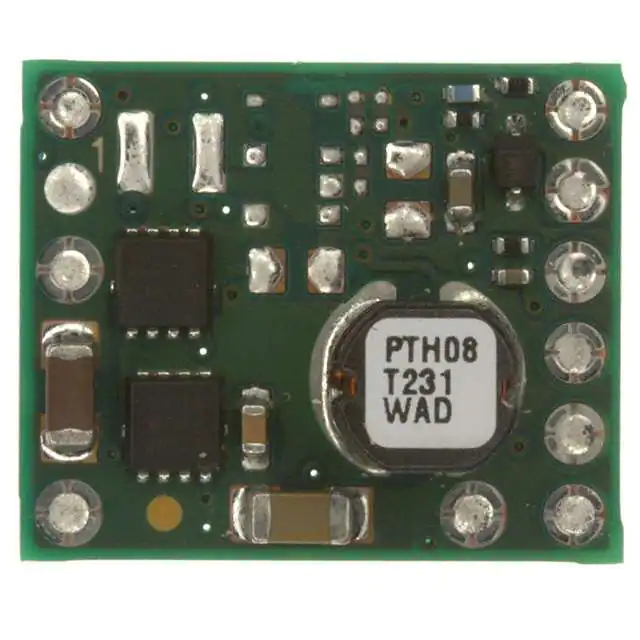

PTH08T231WADDC DC CONVERTER 0.69-5.5V |
255 | - |
|
数据表 |
PTH08T231W | 10-DIP Module | Tray | Active | Non-Isolated PoL Module | 1 | 14V | 0.69 ~ 5.5V | - | - | - | - | 4.5V | 6A | - | 95% | - | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | - | - | - | |
|
TRV 1-2413MDC DC CONVERTER 15V 1W |
124 | - |
|
数据表 |
TRV 1M (1W) | 9-SIP Module, 4 Leads | Tube | Active | Isolated Module | 1 | 28.8V | 15V | - | - | - | - | 19.2V | 67mA | 1 W | 83% | 5 kV | - | -40°C ~ 85°C | ITE (Commercial), Medical | - | Through Hole | - | - | CB, cURus | - | |
|

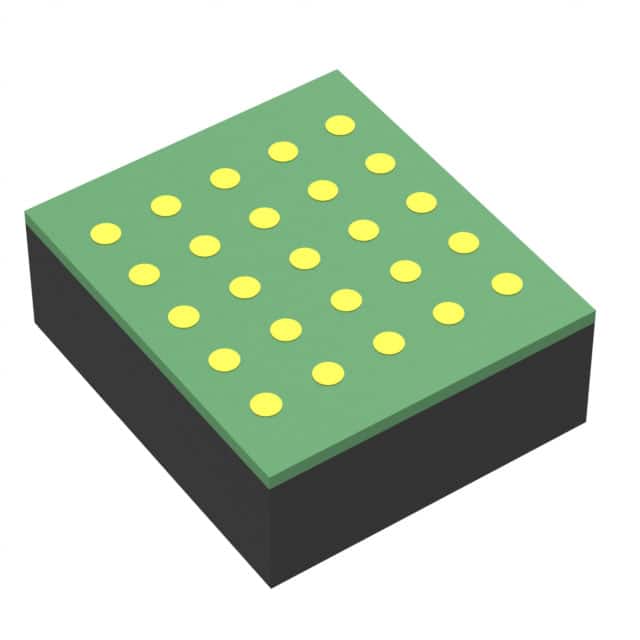

LTM4663IV#PBFDC DC CONVERTER 2.5V |
0 | - |
|
数据表 |
LTM®, uModule® | 25-LFLGA Module | Tray | Active | Non-Isolated PoL Module | 1 | 5.5V | 2.5V | - | - | - | - | 2.7V | 1.5A | - | - | - | - | -40°C ~ 125°C | ITE (Commercial) | - | Surface Mount | 25-LGA (4x3.5) | - | - | - | |
|
R2S-2424/HPDC DC CONVERTER 24V 2W |
134 | - |
|
数据表 |
ECONOLINE R2S (2W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 26.4V | 24V | - | - | - | - | 21.6V | 83mA | 2 W | 85% | 3 kV | - | -40°C ~ 100°C | ITE (Commercial), Medical | SCP | Surface Mount | - | - | - | - | |
|

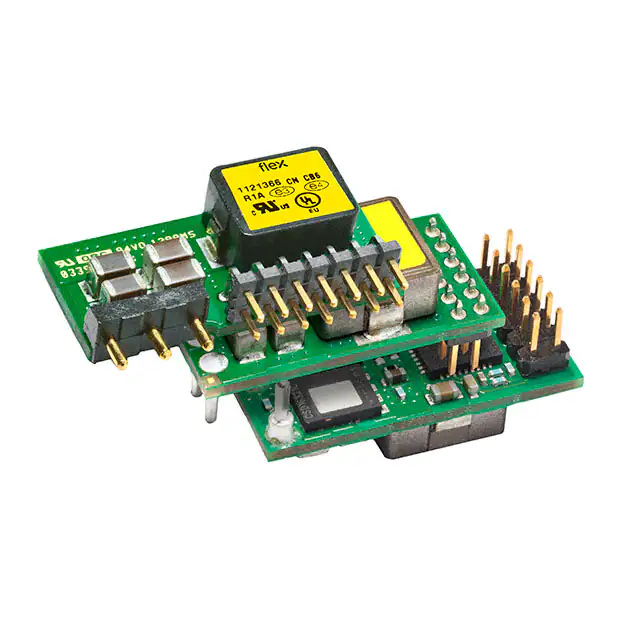

BMR4631008/001DC DC CONVERTER 0.6-3.3V 83W |
118 | - |
|
数据表 |
BMR463 (82.5W) | 15-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module, Digital | 1 | 14V | 0.6 ~ 3.3V | - | - | - | - | 4.5V | 25A | 83 W | 95.2% | - | - | -40°C ~ 125°C (With Derating) | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off, Remote Sense | Surface Mount | - | Enable, Active High | CB, CSA, IEC, TUV, UL | 62368-1 | |
|
EC4SAW-48S12NDC DC CONVERTER 12V 6W |
198 | - |
|
数据表 |
EC4SAW (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 75V | 12V | - | - | - | - | 18V | 500mA | 6 W | 89% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Through Hole | - | Enable, Active Low | CE | - | |
|
CC6-1212DF-EDC DC CNVRTR +/-12V TO +/-15V 6W |
2,856 | - |
|
数据表 |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 2 | 18V | 12 ~ 15V | -12 ~ -15V | - | - | - | 9V | 250mA, 250mA | 6 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
CC6-2403SF-EDC DC CONVERTER 3.3V 6W |
856 | - |
|
数据表 |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 3.3V | - | - | - | - | 18V | 1.2A | 6 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
CC6-4812SR-EDC DC CONVERTER 12-15V 6W |
512 | - |
|
数据表 |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 76V | 12 ~ 15V | - | - | - | - | 36V | 500mA | 6 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC6-1212SF-EDC DC CONVERTER 12-15V 6W |
423 | - |
|
数据表 |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 18V | 12 ~ 15V | - | - | - | - | 9V | 500mA | 6 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
|
CC6-1212SR-EDC DC CONVERTER 12-15V 6W |
286 | - |
|
数据表 |
CC-E (6W) | 7-SMD Module | Tray | Active | Isolated Module | 1 | 18V | 12 ~ 15V | - | - | - | - | 9V | 500mA | 6 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Surface Mount | - | Enable, Active Low | - | - | |
|
|
CC6-2412SF-EDC DC CONVERTER 12-15V 6W |
179 | - |
|
数据表 |
CC-E (6W) | 7-DIP Module | Tray | Active | Isolated Module | 1 | 36V | 12 ~ 15V | - | - | - | - | 18V | 500mA | 6 W | - | 500 V | - | -40°C ~ 85°C | ITE (Commercial) | - | Through Hole | - | Enable, Active Low | - | - | |
|
TMR 3-2423EDC DC CONVERTER +/-15V 3W |
128 | - |
|
数据表 |
TMR 3E (3W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 36V | 15V | -15V | - | - | - | 18V | 100mA, 100mA | 3 W | 83% | 1.5 kV | - | -40°C ~ 85°C (With Derating) | ITE (Commercial) | Remote On/Off, SCP | Through Hole | - | - | - | - | |
|
AG7200DC DC CONVERTER 36 ~ 57V 20W |
552 | - |
|
数据表 |
AG7200 | 7-SIP Module | Tray | Active | Isolated Module | 1 | 15V | 36 ~ 57V | - | - | - | - | 5V | 350mA | 20 W | 90% | 1.5 kV | - | -40°C ~ 85°C | ITE (Commercial) | Adjustable Output | Through Hole | - | - | - | - | |
|
|
TPSM13604HNDWRSIMPLE SWITCHER 5-V TO 36-V, 4-A |
508 | - |
|
数据表 |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 36V | 3 ~ 16V | - | - | - | - | 5V | 4A | - | 96% | - | - | -40°C ~ 125°C | ITE (Commercial) | Adjustable Output, Remote On/Off | Surface Mount | TO-PMOD-7 | - | - | - |
