键盘开关
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 开关类型 | 按键数量 | 照明 | 标记类型 | 按键类型 | 照明电压（额定值） | 输出类型 | 标记 | 矩阵（列 x 行） | 标记颜色 | 按键颜色 | 防护等级 | 安装类型 | 触点额定值 @ 电压 | 工作温度 | 端接样式 | 面板开孔尺寸 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

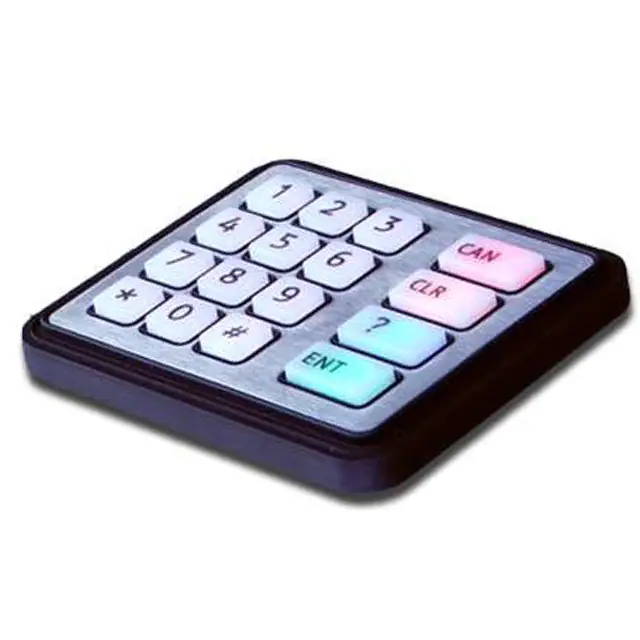

8616-410023SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
11 | - |
|
数据表 |
SF6000 | Box | Active | Conductive Rubber | 16 | Illuminated | Fixed | Transparent Key Cap | 5 VDC | Matrix | Telephone Format, Function Keys | 4 x 4 | Black | Translucent | IP65 - Dust Tight, Water Resistant | Panel Mount, Front or Rear | 0.05A @ 24VDC | -20°C ~ 60°C | Pin Header | Rectangular - 97.00mm x 79.00mm | - |
|

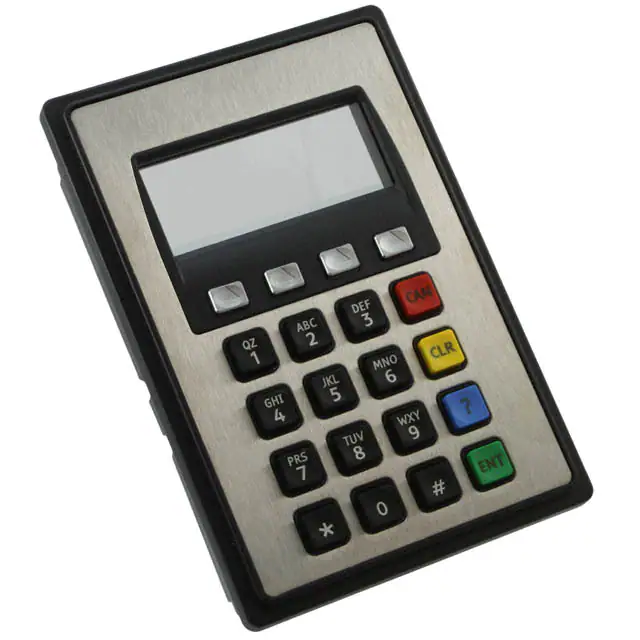

FT2K0503SWITCH KEYPAD 20KEY 0.05A 24V Storm Interface |
12 | - |
|
数据表 |
5000 | Bulk | Active | Conductive Rubber | 20 | Non-Illuminated | Fixed | Polymer | - | Matrix | Telephone Format, Function Keys | 4 x 5 | Black, White | Multiple | IP65 - Dust Tight, Water Resistant | Panel Mount, Rear | 0.05A @ 24VDC | -20°C ~ 60°C | Pin Header | Rectangular - 169.00mm x 111.00mm | - |
|
EZ06-23001SWITCH KEYPAD 6KEY NON-ILLUM Storm Interface |
9 | - |
|
数据表 |
NAV-Pad™ | Bulk | Active | Conductive Rubber | 6 | Non-Illuminated | Fixed | Polymer | - | USB | Arrows, Help Button | - | Black, White | Multiple | IP65 - Dust Tight, Water Resistant | Panel Mount, Front or Rear | - | -20°C ~ 60°C | USB Socket | Rectangular - 109.50mm x 95.50mm | Audio Enabled |
|
AT02-430013SWITCH KEYPAD 2KEY ILLUM Storm Interface |
10 | - |
|
数据表 |
AudioComm | Bulk | Active | Conductive Rubber | 2 | Illuminated | - | Polymer | - | USB | - | 2 x 1 | - | White | IP65 - Dust Tight, Water Resistant | Panel Mount, Front | - | -20°C ~ 70°C | USB Socket | - | Audio Enabled |
|
EZB6-730023SWITCH KEYPAD 6KEY ILLUM Storm Interface |
8 | - |
|
数据表 |
Nav-Bar™ | Bulk | Active | Conductive Rubber | 6 | Illuminated | Fixed | Polymer | - | USB | Arrows, Help Button, Select | 6 x 1 | Black, White | Multiple | IP65 - Dust Tight, Water Resistant | Panel Mount, Rear | - | -20°C ~ 70°C | USB Socket | - | Audio Enabled |
|

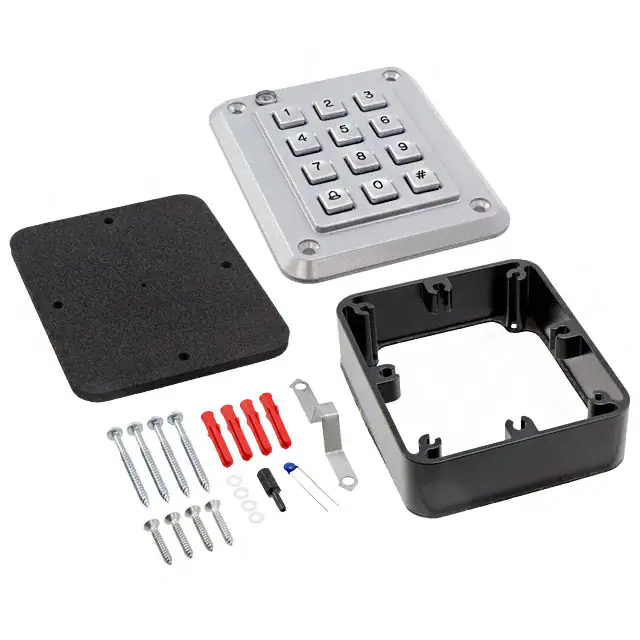

DE1KT103SWITCH KEYPAD 12KEY NON-ILLUM Storm Interface |
10 | - |
|
数据表 |
AXS | Bulk | Active | Conductive Rubber | 12 | Non-Illuminated | Fixed | Metal | - | Non-Standard (Controller Included) | Telephone Format | 3 x 4 | Black | Silver | IP65 - Dust Tight, Water Resistant | Panel Mount, Front | - | -20°C ~ 70°C | Screw Terminal | - | Anti-Vandal |
|

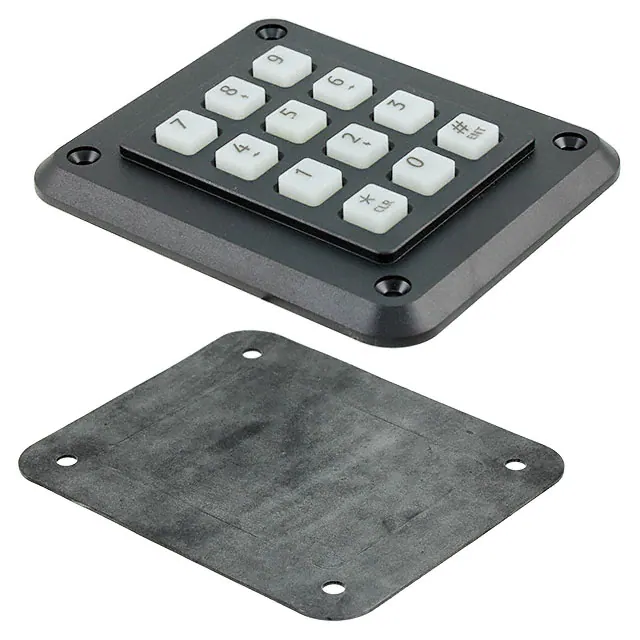

3K120103SWITCH KEYPAD 12KEY 0.05A 24V Storm Interface |
32 | - |
|
数据表 |
3000 | Bulk | Active | Conductive Rubber | 12 | Non-Illuminated | Fixed | Polymer | - | Matrix | Calculator Format | 3 x 4 | Gray | Translucent | IP54 - Dust Protected, Water Resistant | Panel Mount, Front or Rear | 0.05A @ 24VDC | -10°C ~ 85°C | Pin Header | Rectangular - 83.00mm x 64.00mm | - |
|

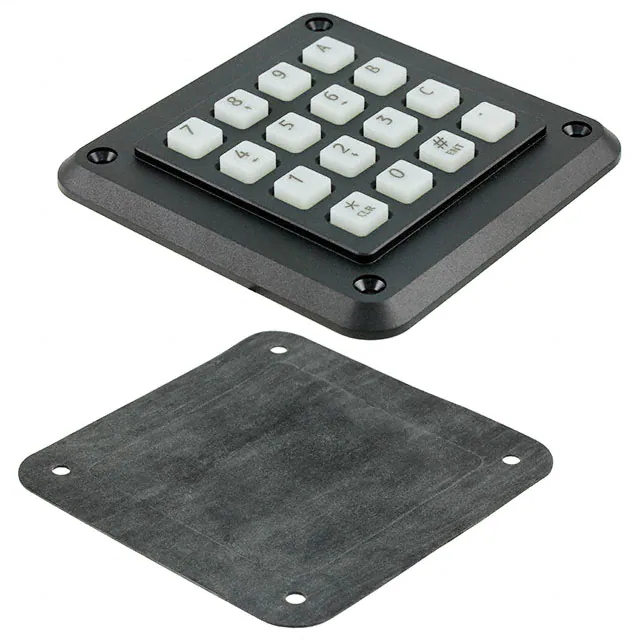

3K160103SWITCH KEYPAD 16KEY 0.05A 24V Storm Interface |
15 | - |
|
数据表 |
3000 | Bulk | Active | Conductive Rubber | 16 | Non-Illuminated | Fixed | Polymer | - | Matrix | Calculator Format, A ~ C | 4 x 4 | Gray | Translucent | IP54 - Dust Protected, Water Resistant | Panel Mount, Front or Rear | 0.05A @ 24VDC | -10°C ~ 85°C | Pin Header | Square - 83.00mm² | - |
|

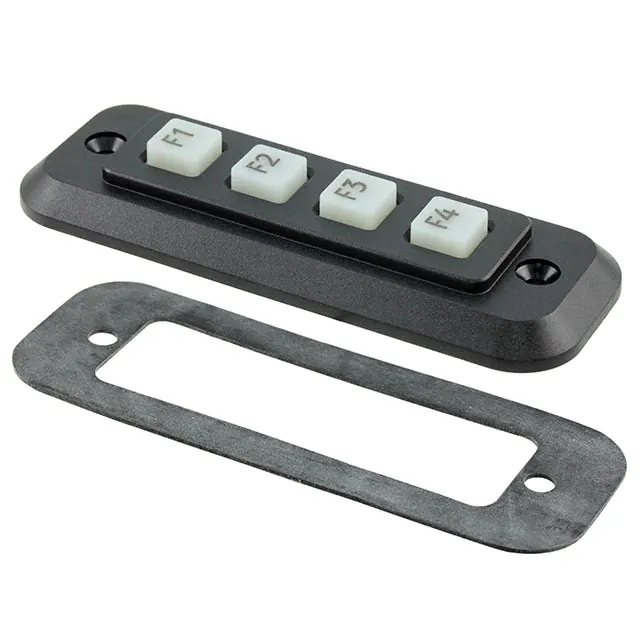

2K042103SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface |
6 | - |
|
数据表 |
2000 | Bulk | Active | Conductive Rubber | 4 | Non-Illuminated | Fixed | Polymer | - | Matrix | F1 ~ F4 | 1 x 4 | Gray | Translucent | IP65 - Dust Tight, Water Resistant | Panel Mount, Front or Rear | 0.05A @ 24VDC | -25°C ~ 85°C | Pin Header | Rectangular - 82.50mm x 25.50mm | Anti-Vandal |
|

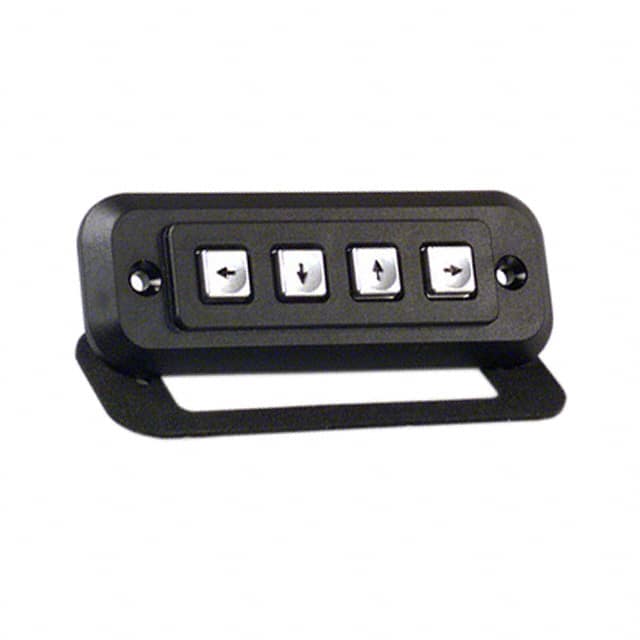

PLX041203SWITCH KEYPAD 4KEY 0.05A 24V Storm Interface |
72 | - |
|
数据表 |
1000 PLX | Bulk | Active | Conductive Rubber | 4 | Non-Illuminated | Fixed | Metal | - | Matrix | Arrows | 1 x 4 | Black | Silver | IP65 - Dust Tight, Water Resistant | Panel Mount, Front or Rear | 0.05A @ 24VDC | -40°C ~ 100°C | Pin Header | Rectangular - 82.50mm x 25.50mm | Anti-Vandal |
