IGBT 模块
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | IGBT 类型 | 配置 | 电流 - 集电极 (Ic)（最大值） | 功率 - 最大值 | 导通电压 (Vce(on)）（最大值）@ Vge, Ic | 电流 - 集电极截止（最大值） | 输入电容 (Cies) @ Vce | 电压 - 集电极发射极击穿（最大值） | 输入 | NTC 热敏电阻 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2U12M12W2-F2ACEPACK 2 POWER MODULE, 3-LEVEL STMicroelectronics |
34 | - |
|
数据表 |
- | Module | Tray | Active | - | Three Level Inverter | - | - | - | - | 7 nF @ 800 V | - | Standard | Yes | 175°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
STGE200NB60SIGBT MOD 600V 200A 600W ISOTOP STMicroelectronics |
81 | - |
|
数据表 |
PowerMESH™ | SOT-227-4, miniBLOC | Tube | Active | - | Single | 200 A | 600 W | 1.6V @ 15V, 100A | 500 µA | 1.56 nF @ 25 V | 600 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | ISOTOP |
|
STGSH80HB65DAGLinear IC's STMicroelectronics |
46 | - |
|
数据表 |
HB | 9-PowerSMD | Bulk | Active | - | Half Bridge | 83 A | 250 W | 2.1V @ 15V, 80A | - | 10450 pF @ 25 V | 650 V | Standard | No | -55°C ~ 175°C (TJ) | Surface Mount | 9-ACEPACK SMIT |
|

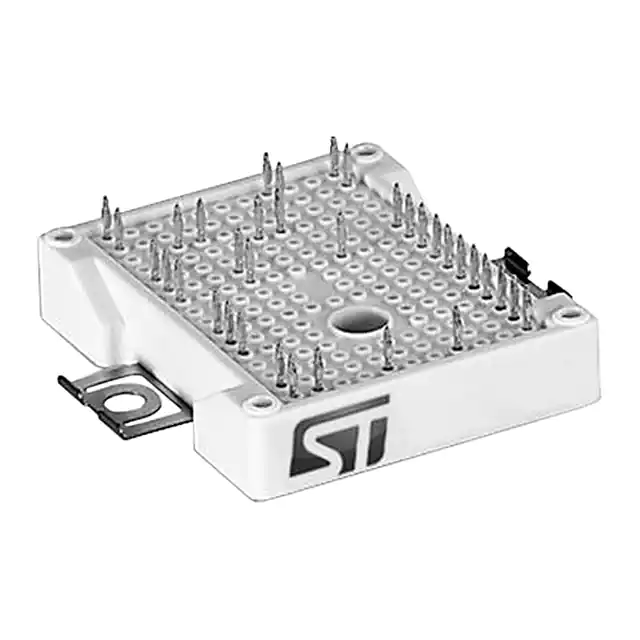

A2C25S12M3-FIGBT MOD 1200V 25A 197W ACEPACK2 STMicroelectronics |
2,175 | - |
|
数据表 |
- | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter with Brake | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
|
A2F12M12W2-F1ACEPACK 2 POWER MODULE, FOURPACK STMicroelectronics |
21 | - |
|
数据表 |
- | Module | Tray | Active | - | Full Bridge | - | - | - | - | 7 nF @ 800 V | - | Standard | Yes | 175°C (TJ) | Chassis Mount | ACEPACK™ 2 |
|
A1C15S12M3-FIGBT MOD 1200V 15A ACEPACK1 STMicroelectronics |
9,835 | - |
|
数据表 |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 15 A | 142.8 W | 2.45V @ 15V, 15A | 100 µA | 985 pF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
A1P25S12M3-FIGBT MOD 1200V 25A 197W ACEPACK1 STMicroelectronics |
9,764 | - |
|
数据表 |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 25 A | 197 W | 2.45V @ 15V, 25A | 100 µA | 1.55 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
A1P50S65M2IGBT MOD 650V 50A 208W ACEPACK1 STMicroelectronics |
6,430 | - |
|
数据表 |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 50 A | 208 W | 2.3V @ 15V, 50A | 100 µA | 4.15 nF @ 25 V | 650 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
A1C15S12M3IGBT MOD 1200V 15A ACEPACK1 STMicroelectronics |
8,858 | - |
|
数据表 |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter with Brake | 15 A | 142.8 W | 2.45V @ 15V, 15A | 100 µA | 985 pF @ 25 V | 1200 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
|
|
A1P35S12M3IGBT MOD 1200V 35A 250W ACEPACK1 STMicroelectronics |
6,440 | - |
|
数据表 |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 35 A | 250 W | 2.45V @ 15V, 35A | 100 µA | 2.154 nF @ 25 V | 1200 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | ACEPACK™ 1 |
