高频（RF）继电器

制造商	系列	包装	产品状态	线圈类型	线圈电流	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	线圈电压	动作时间	释放时间	特性	工作温度	安装类型	端接样式
Coto Technology Omron Electronics Inc-EMC Div Panasonic Electric Works Pasternack Standex-Meder Electronics TE Connectivity TE Connectivity Aerospace, Defense and Marine TE Connectivity AMP Connectors TE Connectivity Potter & Brumfield Relays	* - 2200 2300 2600 2900 9000 9200 9270 9290 9400 9800 9853 9900 ARA ARE ARJ ARN ARS ARX ARXP B10 B40 B41 CRF G5Y-1 G6K G6K-RF G6W G6Y G6Z G9YA HF HF3, AXICOM HF3S, AXICOM HF6, AXICOM MW3S, CII MW4HP, CII MW6, CII MW6HP, CII MW6S, CII RK RP	- Box Bulk Retail Package Tape & Reel (TR) Tray Tube	Active Discontinued at InFortune Not For New Designs Obsolete	- Latching, Dual Coil Latching, Single Coil Non Latching	- 100 mA 11.3 mA 11.7 mA 12 mA 12.5 mA 13.3 mA 13.5 mA 133 mA 133.3 mA 14 mA 14.3 mA 14.5 mA 15 mA 15.5 mA 15.6 mA 15.7 mA 155 mA 16 mA 16.7 mA 17.6 mA 17.9 mA 18.5 mA 20 mA 21.1 mA 21.7 mA 22.2 mA 23.2 mA 23.3 mA 23.4 mA 24 mA 25 mA 26.7 mA 28 mA 28.1 mA 28.6 mA 29.2 mA 30 mA 31 mA 31.1 mA 31.3 mA 33 mA 33.3 mA 4.2 mA 4.6 mA 40 mA 41.7 mA 43 mA 44.4 mA 45.5 mA 46.7 mA 46.9 mA 47 mA 47.1 mA 47.9 mA 48 mA 5.8 mA 50 mA 58.5 mA 6.3 mA 60 mA 66.7 mA 7.8 mA 71.1 mA 72 mA 8 mA 8.3 mA 80 mA 88.9 mA 9.1 mA 93.8 mA	- 6PST-NO (6 Form A) DPDT (2 Form C) DPST-NO (2 Form A) SPDT (1 Form C) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 4	- 1 A 1.5 A 10 mA 100 mA 140 mA 2 A 250 mA 300 mA 500 mA	- 100VAC, 100VDC - Max 125VAC, 125VDC - Max 125VAC, 60VDC - Max 12VDC - Nom 150VAC, 150VDC - Max 170VAC, 170VDC - Max 200VAC, 200VDC - Max 200VDC - Max 250VAC - Max 250VAC, 220VDC - Max 28VDC - Nom 30VAC, 30VDC - Max 30VDC - Max 30VDC - Nom 500VAC, 500VDC - Max 50VAC, 50VDC - Max	- 1.13 VDC 10.5 VDC 13.4 VDC 16.8 VDC 18 VDC 19.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.7 VDC 22.4 VDC 3.38 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 36 VDC 4 VDC 4.5 VDC 4.8 VDC 6.7 VDC 6.75 VDC 7.2 VDC 8.4 VDC 9 VDC 9.6 VDC	- 0.15 VDC 0.22 VDC 0.3 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.6 VDC 0.75 VDC 0.9 VDC 1 VDC 1.2 VDC 1.8 VDC 2 VDC 2.4 VDC 3.6 VDC 4.8 VDC	- 1.5VDC 12VDC 18VDC 24VDC 28VDC 3.3VDC 3VDC 4.5VDC 48VDC 5VDC 6VDC 9VDC	- 0.1 ms 0.25 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- 0.02 ms 0.03 ms 0.05 ms 0.1 ms 0.15 ms 0.2 ms 0.5 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- Diode Diode, Magnetic Shield Magnetic Shield Sealed - Flux Protection Sealed - Fully Sealed - Hermetically TTL Driven	- -20°C ~ 125°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 60°C -25°C ~ 65°C -30°C ~ 70°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 85°C -65°C ~ 125°C	- Chassis Mount Surface Mount Through Hole	- Axial BGA Gull Wing J Lead PC Pin SMD (SMT) Tab Solder Lug

全部重置

全部应用

结果

厂商料号	库存情况	价格	数量	数据表	系列	包装	产品状态	线圈类型	线圈电流	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	线圈电压	动作时间	释放时间	特性	工作温度	安装类型	端接样式
G6K-2F-RF DC24 RELAY RF DPDT 1A 24V Omron Electronics Inc-EMC Div	300	-	询价单	数据表	G6K-RF	Tray	Active	Non Latching	4.6 mA	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	19.2 VDC	2.4 VDC	24VDC	3 ms	3 ms	-	-40°C ~ 70°C	Surface Mount	Gull Wing
2-1462051-4 RELAY RF SPDT 2A 5V TE Connectivity Potter & Brumfield Relays	2,931	-	询价单	数据表	HF3S, AXICOM	Tape & Reel (TR)	Active	Latching, Dual Coil	28 mA	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	3.75 VDC	-	5VDC	5 ms	5 ms	-	-55°C ~ 85°C	Surface Mount	Gull Wing
9852-05-20TR RELAY RF SPDT 100MA 5V Coto Technology	2,652	-	询价单	数据表	9800	Tape & Reel (TR)	Active	Non Latching	45.5 mA	SPDT (1 Form C)	100 mA	30VAC, 30VDC - Max	3.8 VDC	0.4 VDC	5VDC	1 ms	1 ms	Magnetic Shield	-20°C ~ 85°C	Surface Mount	J Lead
ARJ20A4H RELAY RF DPDT 300MA 4.5V Panasonic Electric Works	1,009	-	询价单	数据表	ARJ	Tube	Active	Non Latching	44.4 mA	DPDT (2 Form C)	300 mA	30VDC - Max	3.38 VDC	0.45 VDC	4.5VDC	5 ms	5 ms	-	-30°C ~ 70°C	Surface Mount	Gull Wing
ARJ22A12 RELAY RF DPDT 300MA 12V Panasonic Electric Works	2,947	-	询价单	数据表	ARJ	Tube	Active	Latching, Dual Coil	12.5 mA	DPDT (2 Form C)	300 mA	30VDC - Max	9 VDC	-	12VDC	5 ms	5 ms	-	-30°C ~ 70°C	Surface Mount	Gull Wing
ARS34Y12 RELAY RF SPDT 500MA 12V Panasonic Electric Works	862	-	询价单	数据表	ARS	Tube	Active	Non Latching	16.7 mA	SPDT (1 Form C)	500 mA	30VDC - Max	9 VDC	1.2 VDC	12VDC	10 ms	6 ms	-	-40°C ~ 70°C	Surface Mount	Gull Wing
ARS1003 RELAY RF SPDT 500MA 3V Panasonic Electric Works	350	-	询价单	数据表	ARS	Tube	Active	Non Latching	66.7 mA	SPDT (1 Form C)	500 mA	30VDC - Max	2.25 VDC	0.3 VDC	3VDC	10 ms	6 ms	-	-40°C ~ 70°C	Through Hole	PC Pin

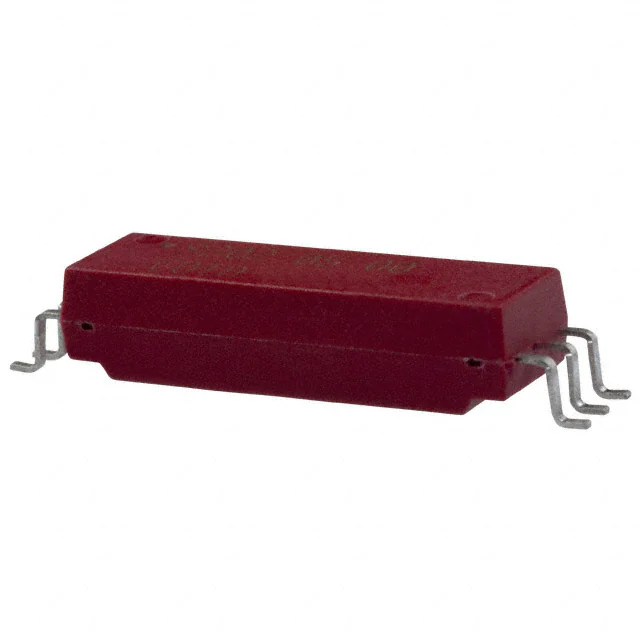

9202-05-00 RELAY RF SPST-NO 500MA 5V Coto Technology	16,870	-	询价单	数据表	9200	Bulk	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.4 ms	0.1 ms	Sealed - Hermetically	-20°C ~ 85°C	Surface Mount	Gull Wing
9402-05-00 RELAY RF SPST-NO 500MA 5V Coto Technology	268	-	询价单	数据表	9400	Bulk	Active	Non Latching	25 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	3.75 VDC	0.4 VDC	5VDC	0.4 ms	0.2 ms	-	-20°C ~ 85°C	Surface Mount	Gull Wing
9402-12-00TR RELAY RF SPST-NO 500MA 12V Coto Technology	1,648	-	询价单	数据表	9400	Tape & Reel (TR)	Active	Non Latching	14.5 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	9 VDC	1 VDC	12VDC	0.4 ms	0.2 ms	-	-20°C ~ 85°C	Surface Mount	Gull Wing
9814-05-20TR RELAY RF SPST-NO 250MA 5V Coto Technology	1,947	-	询价单	数据表	9800	Tape & Reel (TR)	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	250 mA	100VAC, 100VDC - Max	3.8 VDC	0.4 VDC	5VDC	0.25 ms	0.05 ms	Magnetic Shield	-20°C ~ 85°C	Surface Mount	J Lead
1-1462051-6 RELAY RF SPDT 2A 4.5V TE Connectivity Potter & Brumfield Relays	1,567	-	询价单	数据表	HF3, AXICOM	Tape & Reel (TR)	Active	Non Latching	31.1 mA	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	3.38 VDC	0.45 VDC	4.5VDC	5 ms	4 ms	-	-55°C ~ 85°C	Surface Mount	Gull Wing
ARA210A4H RELAY RF DPDT 1A 4.5V Panasonic Electric Works	531	-	询价单	数据表	ARA	Tube	Active	Latching, Single Coil	15.6 mA	DPDT (2 Form C)	1 A	30VDC - Max	3.38 VDC	-	4.5VDC	4 ms	4 ms	-	-40°C ~ 85°C	Surface Mount	Gull Wing
2904-12-321 RELAY RF SPST-NO 500MA 12V Coto Technology	2,555	-	询价单	数据表	2900	Tube	Active	Non Latching	8 mA	SPST-NO (1 Form A)	500 mA	200VAC, 200VDC - Max	9 VDC	1 VDC	12VDC	0.5 ms	0.1 ms	-	-20°C ~ 85°C	Through Hole	PC Pin
ARA200A12 RELAY RF DPDT 1A 12V Panasonic Electric Works	500	-	询价单	数据表	ARA	Tube	Active	Non Latching	11.7 mA	DPDT (2 Form C)	1 A	30VDC - Max	9 VDC	1.2 VDC	12VDC	4 ms	4 ms	-	-40°C ~ 85°C	Surface Mount	Gull Wing
1-1462051-2 RELAY RF SPDT 2A 5V TE Connectivity Potter & Brumfield Relays	566	-	询价单	数据表	HF3, AXICOM	Tape & Reel (TR)	Active	Latching, Dual Coil	28.1 mA	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	3.75 VDC	-	5VDC	3 ms	2 ms	-	-55°C ~ 85°C	Surface Mount	Gull Wing
G6KU-2F-RF-TR09 DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	2,889	-	询价单	数据表	G6K-RF	Tape & Reel (TR)	Active	Latching, Single Coil	21.1 mA	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.75 VDC	-	5VDC	3 ms	3 ms	-	-40°C ~ 70°C	Surface Mount	Gull Wing
G6KU-2F-RF-TR03 DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	1,125	-	询价单	数据表	G6K-RF	Tape & Reel (TR)	Active	Latching, Single Coil	21.1 mA	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.75 VDC	-	5VDC	3 ms	3 ms	-	-40°C ~ 70°C	Surface Mount	Gull Wing
G6KU-2F-RF-S DC5 RELAY RF DPDT 1A 5V Omron Electronics Inc-EMC Div	916	-	询价单	数据表	G6K-RF	Tray	Active	Latching, Single Coil	21.1 mA	DPDT (2 Form C)	1 A	125VAC, 60VDC - Max	3.75 VDC	-	5VDC	3 ms	3 ms	-	-40°C ~ 70°C	Surface Mount	Gull Wing
2-1462051-5 RELAY RF SPDT 2A 4.5V TE Connectivity Potter & Brumfield Relays	390	-	询价单	数据表	HF3S, AXICOM	Tape & Reel (TR)	Active	Latching, Dual Coil	31 mA	SPDT (1 Form C)	2 A	250VAC, 220VDC - Max	3.38 VDC	-	4.5VDC	5 ms	5 ms	-	-55°C ~ 85°C	Surface Mount	Gull Wing

共 995 条记录«上一页 1 2 3 456 7 8...50 下一页»
