首页 > 产品 > 继电器 > 高频（RF）继电器

高频（RF）继电器

制造商	系列	包装	产品状态	线圈类型	线圈电流	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	线圈电压	动作时间	释放时间	特性	工作温度	安装类型	端接样式
Coto Technology Omron Electronics Inc-EMC Div Panasonic Electric Works Pasternack Standex-Meder Electronics TE Connectivity TE Connectivity Aerospace, Defense and Marine TE Connectivity AMP Connectors TE Connectivity Potter & Brumfield Relays	* - 2200 2300 2600 2900 9000 9200 9270 9290 9400 9800 9853 9900 ARA ARE ARJ ARN ARS ARX ARXP B10 B40 B41 CRF G5Y-1 G6K G6K-RF G6W G6Y G6Z G9YA HF HF3, AXICOM HF3S, AXICOM HF6, AXICOM MW3S, CII MW4HP, CII MW6, CII MW6HP, CII MW6S, CII RK RP	- Box Bulk Retail Package Tape & Reel (TR) Tray Tube	Active Discontinued at InFortune Not For New Designs Obsolete	- Latching, Dual Coil Latching, Single Coil Non Latching	- 100 mA 11.3 mA 11.7 mA 12 mA 12.5 mA 13.3 mA 13.5 mA 133 mA 133.3 mA 14 mA 14.3 mA 14.5 mA 15 mA 15.5 mA 15.6 mA 15.7 mA 155 mA 16 mA 16.7 mA 17.6 mA 17.9 mA 18.5 mA 20 mA 21.1 mA 21.7 mA 22.2 mA 23.2 mA 23.3 mA 23.4 mA 24 mA 25 mA 26.7 mA 28 mA 28.1 mA 28.6 mA 29.2 mA 30 mA 31 mA 31.1 mA 31.3 mA 33 mA 33.3 mA 4.2 mA 4.6 mA 40 mA 41.7 mA 43 mA 44.4 mA 45.5 mA 46.7 mA 46.9 mA 47 mA 47.1 mA 47.9 mA 48 mA 5.8 mA 50 mA 58.5 mA 6.3 mA 60 mA 66.7 mA 7.8 mA 71.1 mA 72 mA 8 mA 8.3 mA 80 mA 88.9 mA 9.1 mA 93.8 mA	- 6PST-NO (6 Form A) DPDT (2 Form C) DPST-NO (2 Form A) SPDT (1 Form C) SPST-NC (1 Form B) SPST-NO (1 Form A) SPST-NO (1 Form A) x 4	- 1 A 1.5 A 10 mA 100 mA 140 mA 2 A 250 mA 300 mA 500 mA	- 100VAC, 100VDC - Max 125VAC, 125VDC - Max 125VAC, 60VDC - Max 12VDC - Nom 150VAC, 150VDC - Max 170VAC, 170VDC - Max 200VAC, 200VDC - Max 200VDC - Max 250VAC - Max 250VAC, 220VDC - Max 28VDC - Nom 30VAC, 30VDC - Max 30VDC - Max 30VDC - Nom 500VAC, 500VDC - Max 50VAC, 50VDC - Max	- 1.13 VDC 10.5 VDC 13.4 VDC 16.8 VDC 18 VDC 19.2 VDC 2.25 VDC 2.4 VDC 2.5 VDC 2.7 VDC 22.4 VDC 3.38 VDC 3.6 VDC 3.7 VDC 3.75 VDC 3.8 VDC 36 VDC 4 VDC 4.5 VDC 4.8 VDC 6.7 VDC 6.75 VDC 7.2 VDC 8.4 VDC 9 VDC 9.6 VDC	- 0.15 VDC 0.22 VDC 0.3 VDC 0.4 VDC 0.45 VDC 0.5 VDC 0.6 VDC 0.75 VDC 0.9 VDC 1 VDC 1.2 VDC 1.8 VDC 2 VDC 2.4 VDC 3.6 VDC 4.8 VDC	- 1.5VDC 12VDC 18VDC 24VDC 28VDC 3.3VDC 3VDC 4.5VDC 48VDC 5VDC 6VDC 9VDC	- 0.1 ms 0.25 ms 0.35 ms 0.4 ms 0.5 ms 0.55 ms 0.6 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- 0.02 ms 0.03 ms 0.05 ms 0.1 ms 0.15 ms 0.2 ms 0.5 ms 1 ms 1.5 ms 10 ms 15 ms 2 ms 3 ms 4 ms 5 ms 6 ms	- Diode Diode, Magnetic Shield Magnetic Shield Sealed - Flux Protection Sealed - Fully Sealed - Hermetically TTL Driven	- -20°C ~ 125°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 60°C -25°C ~ 65°C -30°C ~ 70°C -40°C ~ 125°C -40°C ~ 60°C -40°C ~ 70°C -40°C ~ 85°C -55°C ~ 85°C -65°C ~ 125°C	- Chassis Mount Surface Mount Through Hole	- Axial BGA Gull Wing J Lead PC Pin SMD (SMT) Tab Solder Lug

全部重置

全部应用

结果

图片	厂商料号	库存情况	价格	数量	数据表	系列	包装	产品状态	线圈类型	线圈电流	触点形式	触点额定值（电流）	切换电压	必须动作电压	必须释放电压	线圈电压	动作时间	释放时间	特性	工作温度	安装类型	端接样式
	CRF05-1A RELAY RF SPST-NO 500MA 5V Standex-Meder Electronics	6,781	-	询价单	数据表	CRF	Tape & Reel (TR)	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	500 mA	170VAC, 170VDC - Max	3.75 VDC	0.75 VDC	5VDC	0.1 ms	0.02 ms	-	-40°C ~ 125°C	Surface Mount	SMD (SMT) Tab
	CRF05-1AS RELAY RF SPST-NO 500MA 5V Standex-Meder Electronics	4,127	-	询价单	数据表	CRF	Tape & Reel (TR)	Active	Non Latching	33.3 mA	SPST-NO (1 Form A)	500 mA	170VAC, 170VDC - Max	3.75 VDC	0.75 VDC	5VDC	0.1 ms	0.02 ms	-	-40°C ~ 125°C	Surface Mount	BGA
	CRF03-1A RELAY RF SPST-NO 500MA 3V Standex-Meder Electronics	2,358	-	询价单	数据表	CRF	Tape & Reel (TR)	Active	Non Latching	43 mA	SPST-NO (1 Form A)	500 mA	170VAC, 170VDC - Max	2.25 VDC	0.45 VDC	3VDC	0.6 ms	0.05 ms	-	-40°C ~ 125°C	Surface Mount	SMD (SMT) Tab

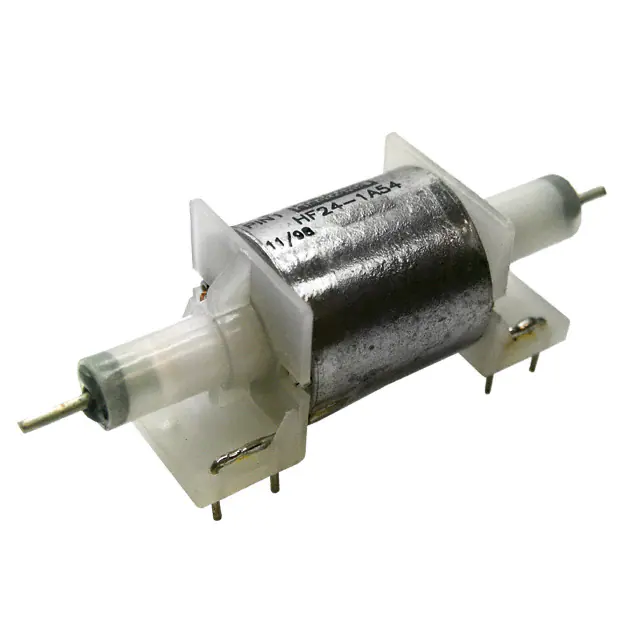

	HF12-1A54-8 RELAY RF SPST-NO 1.5 A 12V Standex-Meder Electronics	1,675	-	询价单	数据表	HF	Bulk	Obsolete	Non Latching	47.9 mA	SPST-NO (1 Form A)	1.5 A	500VAC, 500VDC - Max	8.4 VDC	1.8 VDC	12VDC	3 ms	1 ms	-	-40°C ~ 85°C	Through Hole	PC Pin
	HF24-1A54-9 RELAY RF SPST-NO 1.5 A 24V Standex-Meder Electronics	3,249	-	询价单	数据表	HF	Bulk	Active	Non Latching	24 mA	SPST-NO (1 Form A)	1.5 A	500VAC, 500VDC - Max	16.8 VDC	3.6 VDC	24VDC	3 ms	1 ms	-	-40°C ~ 85°C	Through Hole	PC Pin
