固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82498F3339K001FIXED IND 3.3NH SMD |
0 | - |
|
数据表 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±10% | - | - | 0805 (2012 Metric) | Unshielded | - | 3.3 nH | - | - | Surface Mount | - | 0.091" L x 0.067" W (2.30mm x 1.70mm) | - | -55°C ~ 125°C | - | 0.055" (1.40mm) |
|
IR02SHR10KFIXED IND 100NH 1.35A 80 MOHM TH |
0 | - |
|
数据表 |
IR | Axial | Bulk | Obsolete | - | Phenolic | ±10% | 1.35 A | - | - | Unshielded | 80mOhm Max | 100 nH | 40 @ 25MHz | 680MHz | Through Hole | - | 0.120" Dia x 0.260" L (3.05mm x 6.60mm) | - | -55°C ~ 125°C | 25 MHz | - |
|
PE-0402CD3N9JTGFIXED IND 3.9NH 840MA 66MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 840 mA | - | 0402 (1005 Metric) | Unshielded | 66mOhm Max | 3.9 nH | 20 @ 250MHz | 5.8GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
|
PE-0402CD6N2JTGFIXED IND 6.2NH 760MA 83MOHM SMD |
0 | - |
|
数据表 |
0402CD | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | ±5% | 760 mA | - | 0402 (1005 Metric) | Unshielded | 83mOhm Max | 6.2 nH | 20 @ 250MHz | 5.8GHz | Surface Mount | - | 0.047" L x 0.026" W (1.19mm x 0.66mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.61mm) |
|
|
BX8259WTFIXED IND 600UH 812 MOHM SMD |
0 | - |
|
数据表 |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | - | - | - | - | - | 8-SMT | Unshielded | 812mOhm Max | 600 µH | - | - | Surface Mount | - | 0.425" L x 0.413" W (10.80mm x 10.50mm) | - | -40°C ~ 85°C | 1 kHz | 0.248" (6.30mm) |
|
P0250.154TFIXED IND 150UH 1.5A 250MOHM SMD |
0 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 1.5 A | 2.6A | - | Unshielded | 250mOhm Max | 150 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
|
P0250.224TFIXED IND 220UH 1.2A 380MOHM SMD |
0 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 1.2 A | 2.4A | - | Unshielded | 380mOhm Max | 220 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
|
P0250.333TFIXED IND 33UH 3A 66 MOHM SMD |
0 | - |
|
数据表 |
P0250NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±15% | 3 A | 5.5A | - | Unshielded | 66mOhm Max | 33 µH | - | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.290" (7.36mm) |
|
|
P0443TFIXED IND 72UH 200MA 747MOHM SMD |
0 | - |
|
数据表 |
Ros 1 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | ±15% | 200 mA | - | - | Shielded | 747mOhm Max | 72 µH | - | - | Surface Mount | - | 0.335" L x 0.225" W (8.51mm x 5.72mm) | - | -40°C ~ 130°C | - | 0.125" (3.18mm) |
|

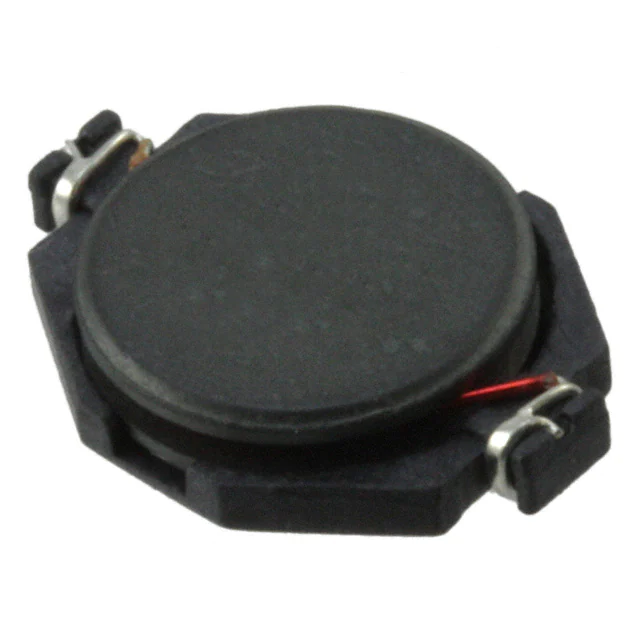

P0762.104TFIXED IND 100UH 600MA 840MOHM SM |
0 | - |
|
数据表 |
P0762NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 600 mA | 700mA | - | Unshielded | 840mOhm Max | 100 µH | - | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | - | -40°C ~ 130°C | 100 kHz | 0.118" (3.00mm) |
|
P1166.103TFIXED IND 10UH 1.6A 70 MOHM SMD |
0 | - |
|
数据表 |
P1166NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | ±20% | 1.6 A | 1.8A | - | Shielded | 70mOhm Max | 10 µH | - | 29MHz | Surface Mount | - | 0.297" L x 0.297" W (7.54mm x 7.54mm) | - | -40°C ~ 130°C | 100 kHz | 0.138" (3.51mm) |
|
P1252.782TFIXED IND 7.8UH 7.5A 18 MOHM SMD |
0 | - |
|
数据表 |
P1252NL | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | ±20% | 7.5 A | 11A | - | Unshielded | 18mOhm Max | 7.8 µH | - | - | Surface Mount | - | 0.879" L x 0.596" W (22.33mm x 15.14mm) | - | -40°C ~ 130°C | 100 kHz | 0.295" (7.49mm) |
|
|
PG0077.801TFIXED IND 800NH 31A 1.3 MOHM SMD |
0 | - |
|
数据表 |
PG0077 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 31 A | 38A | - | Unshielded | 1.3mOhm Max | 800 nH | - | - | Surface Mount | - | 0.551" L x 0.512" W (14.00mm x 13.00mm) | - | -40°C ~ 95°C | 100 kHz | 0.256" (6.50mm) |
|
|
PE-53188NLFIXED IND 3.7UH 16 MOHM TH |
0 | - |
|
数据表 |
- | Radial | Tube | Obsolete | Toroidal | - | - | - | - | - | Unshielded | 16mOhm Max | 3.7 µH | - | - | Through Hole | - | - | - | - | 10 kHz | - |
|
|
PE-65108NLFIXED IND |
0 | - |
|
数据表 |
- | - | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B2086FIXED IND 4MH 100MA 3.6 OHM SMD |
0 | - |
|
数据表 |
- | 10-SMD, Gull Wing | Tray | Obsolete | - | - | ±10% | 100 mA | - | 10-SMT | Unshielded | 3.6Ohm Max | 4 mH | - | - | Surface Mount | - | 0.555" L x 0.525" W (14.10mm x 13.34mm) | - | -40°C ~ 125°C | 1 kHz | 0.485" (12.32mm) |
|
|
BX8171AFIXED IND 20MH 4 OHM TH |
0 | - |
|
数据表 |
- | Radial | Tray | Obsolete | - | - | ±4% | - | - | - | Unshielded | 4Ohm Max | 20 mH | - | - | Through Hole | - | 0.736" L x 0.566" W (18.70mm x 14.37mm) | - | -40°C ~ 85°C | 10 kHz | 0.500" (12.70mm) |
|
|
BX8259WFIXED IND 600UH 812 MOHM SMD |
0 | - |
|
数据表 |
- | 8-SMD, Gull Wing | Tray | Obsolete | - | - | - | - | - | 8-SMT | Unshielded | 812mOhm Max | 600 µH | - | - | Surface Mount | - | 0.425" L x 0.413" W (10.80mm x 10.50mm) | - | -40°C ~ 85°C | 1 kHz | 0.248" (6.30mm) |
|

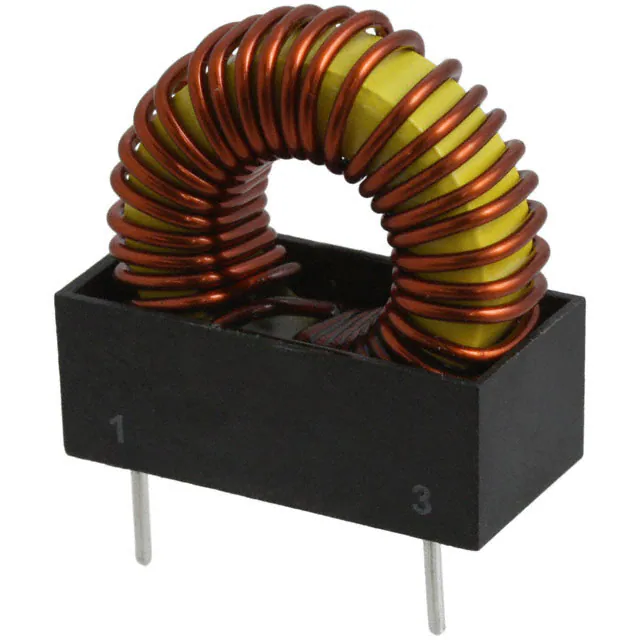

PE-51509FIXED IND 14UH 10A 9 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Toroidal | - | - | 10 A | - | - | Unshielded | 9mOhm Max | 14 µH | - | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | - | -40°C ~ 130°C | 50 kHz | 1.200" (30.48mm) |
|
|
PE-51514FIXED IND 32UH 6.6A 25 MOHM TH |
0 | - |
|
数据表 |
- | Radial, Vertical, 4 Leads (Open) | Tray | Obsolete | Toroidal | - | - | 6.6 A | - | - | Unshielded | 25mOhm Max | 32 µH | - | - | Through Hole | - | 1.200" L x 0.600" W (30.48mm x 15.24mm) | - | -40°C ~ 130°C | 50 kHz | 1.200" (30.48mm) |
