固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

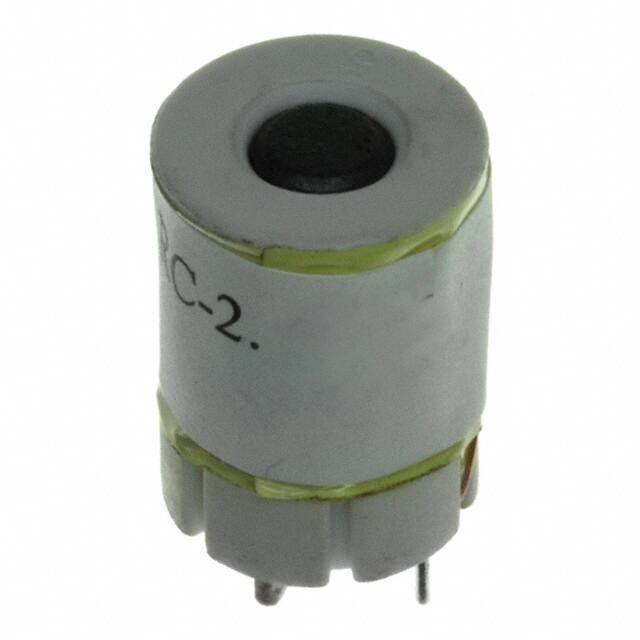

RC-2-BFIXED IND 3.9MH 320MA 3.9 OHM TH Triad Magnetics |
0 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 320 mA | - | - | Unshielded | 3.9Ohm | 3.9 mH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-3-BFIXED IND 2.5MH 400MA 2.45OHM TH Triad Magnetics |
0 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 400 mA | - | - | Unshielded | 2.45Ohm | 2.5 mH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-4-BFIXED IND 1.5MH 500MA 1.53OHM TH Triad Magnetics |
0 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 500 mA | - | - | Unshielded | 1.53Ohm | 1.5 mH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-5-BFIXED IND 915UH 625MA 1 OHM TH Triad Magnetics |
0 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 625 mA | - | - | Unshielded | 1Ohm | 915 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|

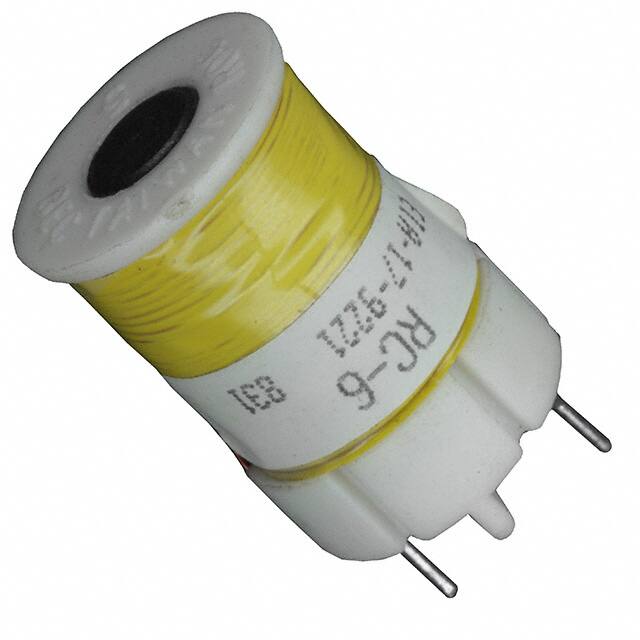

RC-6-BFIXED IND 560UH 800MA 600MOHM TH Triad Magnetics |
0 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 800 mA | - | - | Unshielded | 600mOhm | 560 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-7-BFIXED IND 450UH 1A 420 MOHM TH Triad Magnetics |
0 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1 A | - | - | Unshielded | 420mOhm | 450 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-8-BFIXED IND 250UH 1.25A 210MOHM TH Triad Magnetics |
0 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.25 A | - | - | Unshielded | 210mOhm | 250 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
RC-9-BFIXED IND 200UH 1.6A 180 MOHM TH Triad Magnetics |
0 | - |
|
数据表 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 1.6 A | - | - | Unshielded | 180mOhm | 200 µH | - | - | Through Hole | - | 0.600" Dia (15.24mm) | - | -40°C ~ 85°C | 10 kHz | 0.930" (23.62mm) |
|
AX97-10471FIXED IND 470UH 120MA 11.55 OHM Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | ±20% | 120 mA | - | SMD | Unshielded | 11.55Ohm Max | 470 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
|
|
AX97-104R7FIXED IND 4.7UH 1.5A 120MOHM SMD Triad Magnetics |
0 | - |
|
数据表 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | ±20% | 1.5 A | - | SMD | Unshielded | 120mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.287" L x 0.188" W (7.30mm x 4.78mm) | - | -40°C ~ 85°C | 100 kHz | 0.127" (3.23mm) |
