固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSLU2520-470JP2FIXED IND 47UH 80MA 10 OHM SMD Toko America Inc. |
367 | - |
|
数据表 |
FSLU2520 | 1008 (2520 Metric) | Cut Tape (CT) | Obsolete | Wirewound | Ferrite | ±5% | 80 mA | - | 1008 (2520 Metric) | Unshielded | 10Ohm Max | 47 µH | 25 @ 2.52MHz | 15MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -40°C ~ 85°C | 2.52 MHz | 0.071" (1.80mm) |
|
656LZ-05K=P3INDUCTOR 22NH TYPE 36CS SMD Toko America Inc. |
827 | - |
|
数据表 |
36CS | Nonstandard | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 0.250" L x 0.126" W (6.35mm x 3.20mm) | - | - | - | 0.157" (4.00mm) |
|
300NS-R82M=P2INDUCTOR FIX .82UH TYP 43FS SMD Toko America Inc. |
151 | - |
|
数据表 |
43FS | 1812 (4532 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | 1812 | - | - | - | - | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | 0.126" (3.20mm) |
|
300LS-820K=P2FIXED IND 82UH 75MA 4.42 OHM SMD Toko America Inc. |
703 | - |
|
数据表 |
43FS | 1812 (4532 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | ±10% | 75 mA | - | 1812 | Unshielded | 4.42Ohm Max | 82 µH | 50 @ 25.2MHz | 7.7MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -10°C ~ 60°C | 25.2 MHz | 0.126" (3.20mm) |
|

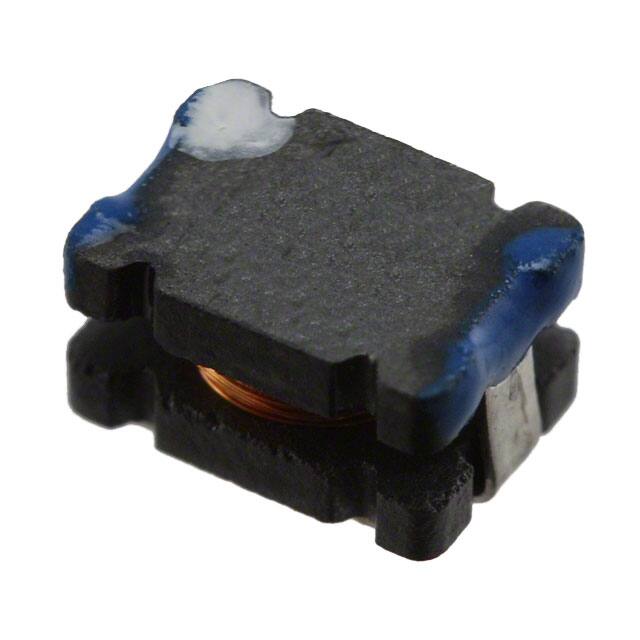

300NS-R22M=P2INDUCTOR FIX .22UH TYP 43FS SMD Toko America Inc. |
236 | - |
|
数据表 |
43FS | 1812 (4532 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | 1812 | - | - | - | - | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | 0.126" (3.20mm) |
|
682AE-014=P3FIXED IND 95UH SMD Toko America Inc. |
841 | - |
|
数据表 |
3DF | - | Cut Tape (CT) | Obsolete | - | Ferrite | ±20% | - | - | - | Unshielded | - | 95 µH | - | - | Surface Mount | - | - | - | - | - | - |
|
300NS-R39M=P2INDUCTOR FIX .39UH TYP 43FS SMD Toko America Inc. |
134 | - |
|
数据表 |
43FS | 1812 (4532 Metric) | Cut Tape (CT) | Obsolete | - | - | - | - | - | 1812 | - | - | - | - | - | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | - | - | 0.126" (3.20mm) |
|
636FY-680M=P3INDUCTOR FIXED 68UH TYP D73F SMD Toko America Inc. |
395 | - |
|
数据表 |
D73F | Nonstandard | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | - | - | - | 0.138" (3.50mm) |
|

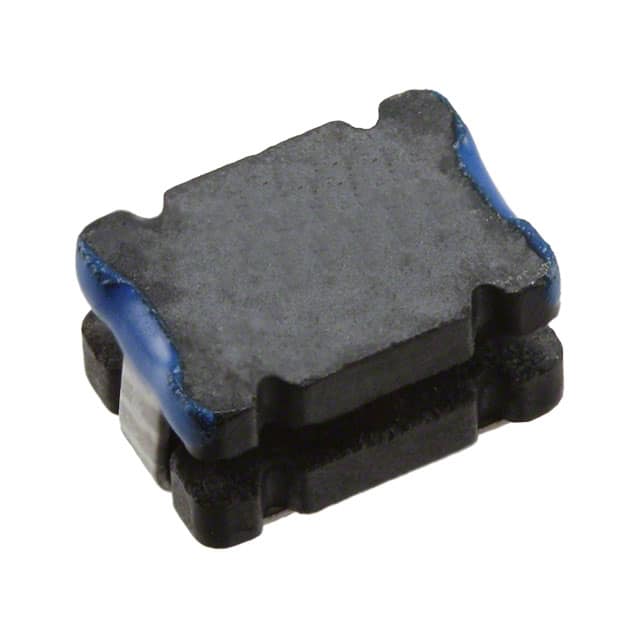

300LS-180K=P2FIXED IND 18UH 125MA 1.77 OHM Toko America Inc. |
418 | - |
|
数据表 |
43FS | 1812 (4532 Metric) | Cut Tape (CT) | Obsolete | Wirewound | Ferrite | ±10% | 125 mA | - | 1812 | Unshielded | 1.77Ohm Max | 18 µH | 50 @ 25.2MHz | 16MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -10°C ~ 60°C | 25.2 MHz | 0.126" (3.20mm) |
|
300LS-1R5K=P2FIXED IND 1.5UH 230MA 490 MOHM Toko America Inc. |
6 | - |
|
数据表 |
43FS | 1812 (4532 Metric) | Cut Tape (CT) | Obsolete | Wirewound | Ferrite | ±10% | 230 mA | - | 1812 | Unshielded | 490mOhm Max | 1.5 µH | 50 @ 7.96MHz | 105MHz | Surface Mount | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | - | -10°C ~ 60°C | 7.96 MHz | 0.126" (3.20mm) |
